IkeV2 VPN with EntraID SAML

Forum|Forum|9 months ago
November 7, 2025
5 replies
655 views

All configured and working to a point ! SAML authentication works fine but as soon as I authenticate the connection Immediately drops !

Last Disconnect Reason: HostnameResolveNonRecoverableError

Can anyone suggest where to start with troubleshooting this ?

I've tried the following but found not errors.

diagnose debug application fnbamd -1

diagnose debug application saml -1

diagnose debug application ike -1

diagnose debug application eap_proxy -1

FortiGate

Best answer by forti5

now solved. 2 issues.

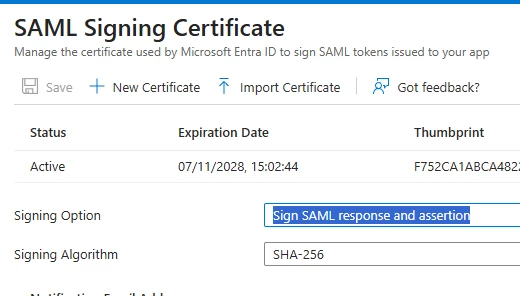

1. I had to change the default saml setting to - Sign SAML response and assertion

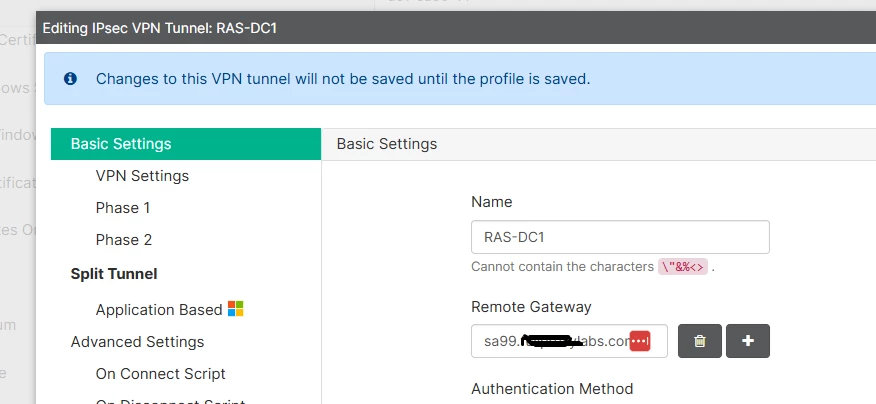

2. In the EMS Remote Access config i had https: , when I should have just had the hostname.

funkylicious

SuperUser

what version are you running on FortiGate ?

"jack of all trades, master of none"

forti5Author

New Member

v7.4.9

hpenmetsa

Staff

Hi,

Does this happen to only one user or to all users?

Could you please share the output?

diagnose debug reset

diagnose vpn ike log-filter dst-addr4 <client public ip>

diagnose debug app ike -1

diagnose debug app eap_proxy -1

diagnose debug app samld -1

diagnose debug enable

replicate the issue connecting to a VPN

AEK

SuperUser

Looks like a DNS issue.

Are your DNS queries sent through the tunnel once it is up?
Are they served correctly?
Is the telemetry server's FQDN resolved with a different address (e.g.: the private IP) once connected?

Try fix these and redo the test.

AEK

forti5AuthorAnswer

New Member

now solved. 2 issues.

1. I had to change the default saml setting to - Sign SAML response and assertion

2. In the EMS Remote Access config i had https: , when I should have just had the hostname.
