I need help to do FGate-VM64-KVM v6.4.6 working 2 network, 2 VRFs and SNAT/DNAT

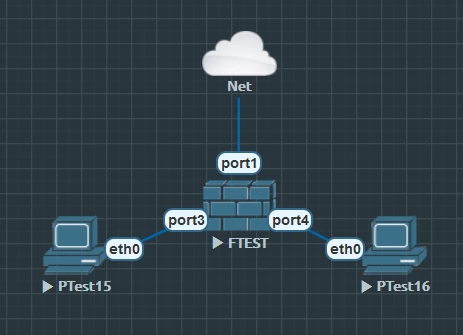

PC1(10.0.0.1) -----Port3(10.0.0.254)---|VRF10|---Link0(172.16.0.253)--------Link1(172.16.0.254)---|VRF20|---Port4(192.168.0.254) ------PC2(192.168.0.1)

config firewall ippool edit "ESQ-SNAT" set startip 172.16.0.240 set endip 172.16.0.240 next edit "DIR-SNAT" set startip 172.16.0.250 set endip 172.16.0.250 next end

config firewall vip edit "ESQ-DNAT" set extip 172.16.0.241 set mappedip "10.0.0.1" set extintf "any" set arp-reply disable set nat-source-vip enable next

edit "DIR-DNAT" set extip 172.16.0.251 set mappedip "192.168.0.1" set extintf "any" set arp-reply disable set nat-source-vip enable next end

config firewall policy edit 1 set name "ESQ->Link0" set srcintf "port3" set dstintf "Link_0" set srcaddr "all" set dstaddr "all" set action accept set schedule "always" set service "ALL" set ippool enable set poolname "ESQ-SNAT" set nat enable next edit 2 set name "Link_0->ESQ" set srcintf "Link_0" set dstintf "port3" set srcaddr "all" set dstaddr "ESQ-DNAT" set action accept set schedule "always" set service "ALL" next edit 3 set name "DIR->Link_1" set srcintf "port4" set dstintf "Link_1" set srcaddr "all" set dstaddr "all" set action accept set schedule "always" set service "ALL" set ippool enable set poolname "DIR-SNAT" set nat enable next edit 4 set name "Link1_DIR" set srcintf "Link_1" set dstintf "port4" set srcaddr "all" set dstaddr "DIR-DNAT" set action accept set schedule "always" set service "ALL" next

end

config router static edit 1 set dst 192.168.0.0 255.255.255.0 set gateway 172.16.0.254 set device "Link_0" next edit 2 set dst 10.0.0.0 255.255.255.0 set gateway 172.16.0.253 set device "Link_1" next end

The configuration seems to be correct, what src to dst do you encounter does not work?

Maybe you can use sniffers and debug flow to help you troubleshoot：

Sniffer:

diagnose sniffer packet any "icmp" 4 0 l

Debug Flow:
