How to use credentials menu through collector?

  • May 7, 2024
  • 5 replies
  • 2859 views

When we add credentials in FortiSIEM admin settings, it only asks to map IP.


Same IP can belong to multiple clients also, But in mapping there is no option to select collector. So how to map credentials to correct device linked to correct collector.



Also do i need to allow supervisor to firewall port 22 if i want to add SSH credentials? This is not possible by allowing collector to firewall connection over port 22?

Best answer by Richie_C

Yes, you should to run the discovery from the correct organization.



You only mentioned SSH above. Did you also configure SNMP credentials. Did the test credentials option work? Did the discovery succeed for SNMP?

5 replies

Richie_C
Staff
Richie_C
Staff
May 8, 2024

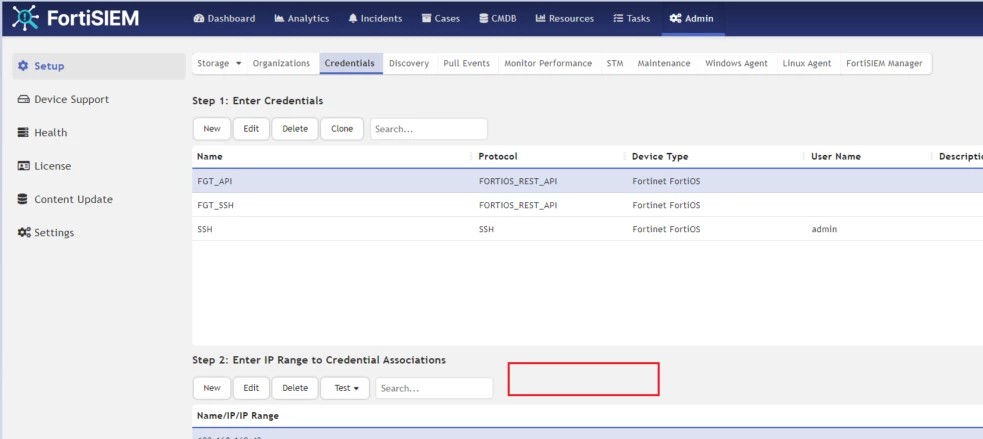

I don't have a collector in my lab but you should have a dropdown menu on the credentials page. It will be in the same place as the red square below.



discovered by.PNG

If you select collector here, you only need to allow connections on tcp/22 from the collector.

    bhinangt
    bhinangtAuthor
    Explorer
    May 9, 2024

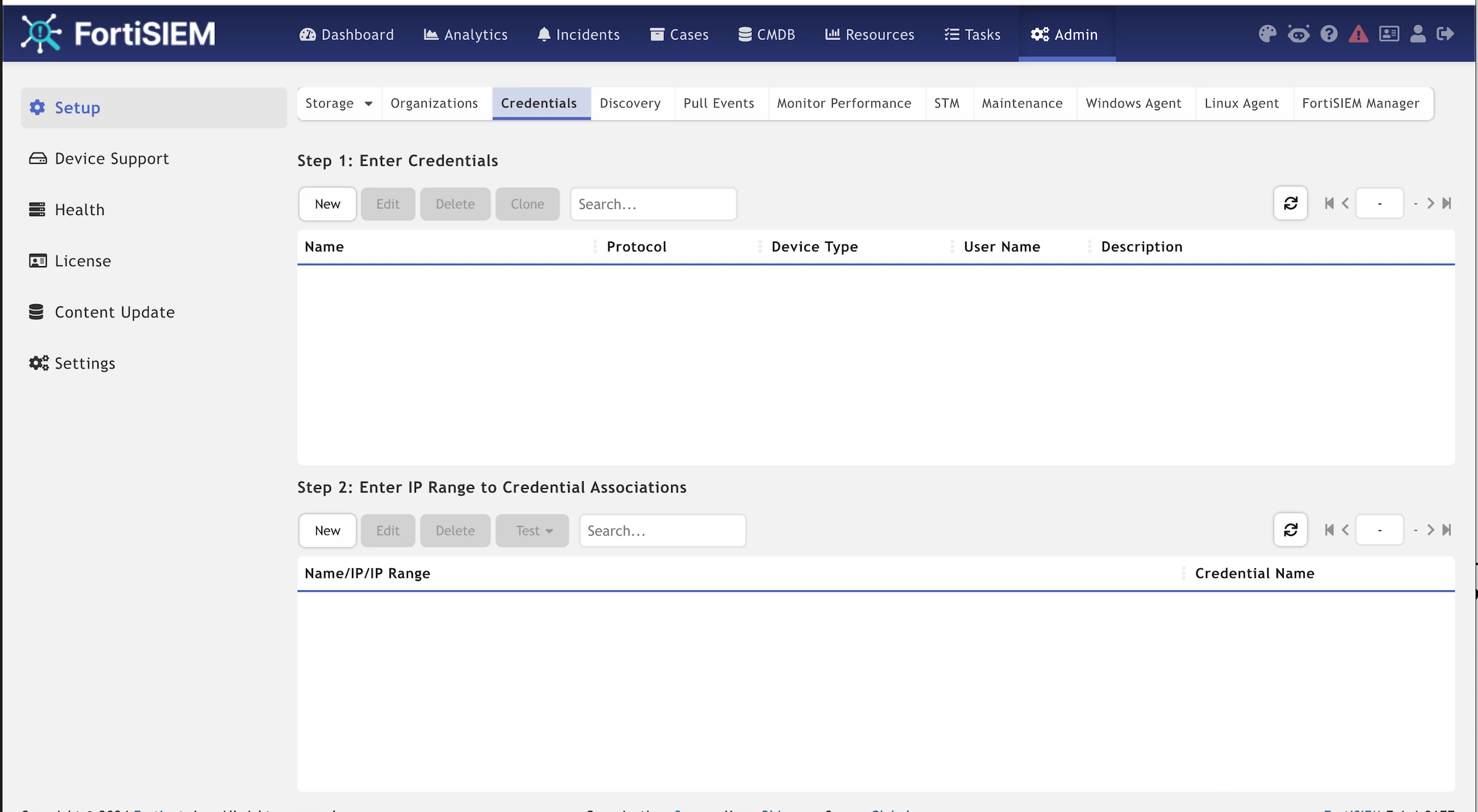

    This is snapshot from Global view with collector setup. No such option



    Screenshot 2024-05-09 at 7.39.29 PM.png

    Richie_C
    Staff
    Richie_C
    Staff
    May 10, 2024

    Can you provide some more information about your setup please?



    Is it service provider or enterprise setup?

    How many collector have you registered?

    If in service provide mode, are the collectors dedicated to an org or are they multi org collectors?

    Thanks

      bhinangt
      bhinangtAuthor
      Explorer
      May 10, 2024

      Service Provider,
      20 Collectors

      No sharing of collectors, its dedicated.



      Mean while instead of global view, i switched to individual organization view and added credentials. It went through collector, test was successful but then also no SNMP performance logs being reported.

      Also not sure of the approach to add credentials is correct.

        Richie_C
        Staff
        Richie_CAnswer
        Staff
        May 10, 2024

        Yes, you should to run the discovery from the correct organization.



        You only mentioned SSH above. Did you also configure SNMP credentials. Did the test credentials option work? Did the discovery succeed for SNMP?

          bhinangt
          bhinangtAuthor
          Explorer
          May 10, 2024

          Thank you @Richie_C it worked!

          Hinaseo
          Hinaseo
          New Member
          December 5, 2024

          Great question! The issue with mapping credentials to the correct device linked to the appropriate collector can be tricky. Adding the ability to specify the collector would certainly streamline things. As for SSH credentials, allowing supervisor access to firewall port 22 seems to be a default requirement, but it’s worth exploring if collector-level access can achieve the same result.
