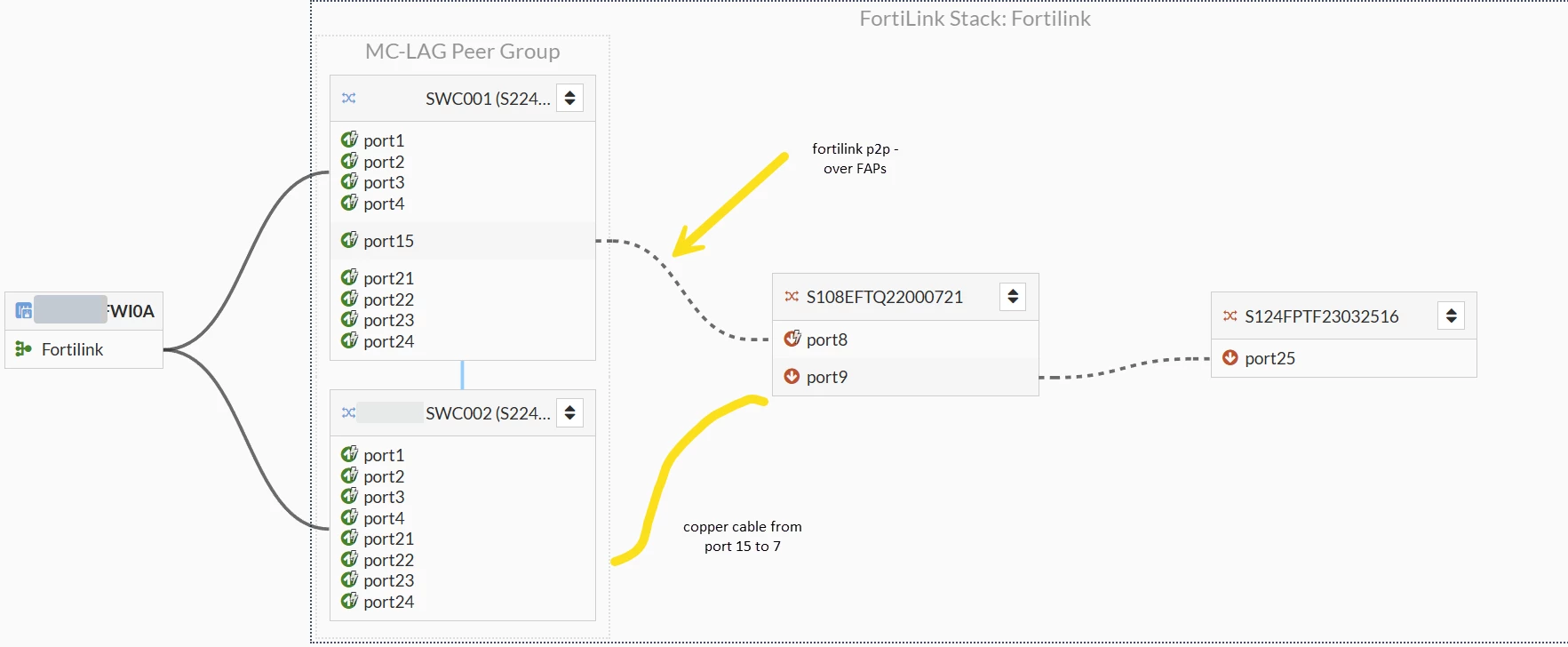

How to setup redundancy link between Fortiswitches ?

Hello plsikk,

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Thanks,

Hello,

We are still looking for an answer to your question.

We will come back to you ASAP.

Thanks,

Hello again,

I found this solution. Can you tell me if it helps, please?

To set up redundancy paths between FortiSwitches using both fiber and WiFi bridges with FortiAPs in a mesh configuration, ensure that FortiLink P2P is properly configured and that no traffic is blocked on the Layer 2 setup. Consider using MCLAG or STP for redundancy, and review the specific configuration settings for FortiLink and P2P-FortiLink to ensure compatibility.

Hello again plsikk and sorry for the delay!

I found this solution to your question. Does it help? :)

To configure FortiLink over a point-to-point layer-2 network, especially when using a WiFi bridge, follow these steps:

1. Enable FortiLink P2P on Each FortiSwitch Unit:
   - Access the configuration for the physical port on each FortiSwitch unit that connects to the WiFi bridge.
   - Use the following commands: ```shell config switch physical-port edit <port_name> set fortilink-p2p enable end ```


2. Ensure Consistent TPID Values:
   - Make sure the FortiLink point-to-point TPID value is the same on each FortiSwitch unit. By default, it is 0x8100.
   - Use the following commands to verify or set the TPID: ```shell config switch global set fortilink-p2p-tpid <0x0001-0xfffe> end ```


3. Check Layer-2 Network Configuration: Ensure that the WiFi bridge and any intermediate Layer-2 devices are not blocking LLDP packets or any other necessary traffic for FortiLink.


4. Review Redundancy Protocols: If redundancy is required, consider using protocols like MCLAG or STP to manage the failover between the fiber and WiFi bridge links.


5. Troubleshoot Connectivity: If switches go offline when connecting the fiber port, check for any loops or misconfigurations in the network that might cause a broadcast storm or other issues.

By following these steps, you should be able to configure FortiLink over a WiFi bridge and troubleshoot any issues with the setup. If problems persist, further network analysis may be required to identify specific issues.
