beniori
New Member
October 30, 2018
Question

How to set/route different true IP (Fortigate 100E)

  • October 30, 2018
  • 3 replies
  • 8325 views

Dear All,



My ISP give us 2 different range of true IP address as below:



IP RANGE:       10.100.186.144  ~ 10.100.186.151    (8)  10.100.188.32   ~ 10.100.188.63     (32)    10.100.186.145       (TYPE: GATEWAY)  10.100.186.148       (TYPE: WAN IP)  10.100.186.151       (TYPE: BROADCAST)  10.100.188.32        (TYPE: ROUTER_NETWORK)  10.100.188.62        (TYPE: GATEWAY)  10.100.188.63        (TYPE: ROUTER_BROADCAST)    BB GATEWAY:  165.84.186.145 165.84.188.62   SUBNET:  255.255.255.224 255.255.255.248   I set WAN using 10.100.186.148 (gw:165.84.186.145),10.100.188.xx added to WAN secondary address, and setting Virtual IP, I can open my webserver page my 10.100.188.xx and LAN is working properly.   However, I hope my new server connecting internet and show 10.100.188.xx (whatismyip.com), but it shows 10.100.186.148.  ISP told me I have to make static route instead of current settings.  I should keep the new server keep internal IP address (10.10.181.2), can any one help me?  Many thanks.   Ben

    3 replies

    beniori
    benioriAuthor
    New Member
    October 30, 2018

    BB GATEWAY:  165.84.186.145 should be 10.100.186.145 165.84.188.62 should be 10.100.188.62

    Bubu
    New Member
    October 30, 2018

    Hi,

    If you want only your web server to be able to exit by 10.100.188.xx, you must create a static route of the web server 10.10.181.2/32 - gw 10.100.188.xx - device wan1

    Regards,

    beniori
    benioriAuthor
    New Member
    October 30, 2018

    Thanks, but setting the static route, it said "Invalid Subnet Mask 10.10.176.0/255.255.248.0", it seems cannot set an specific IP...

    Bubu
    New Member
    October 30, 2018

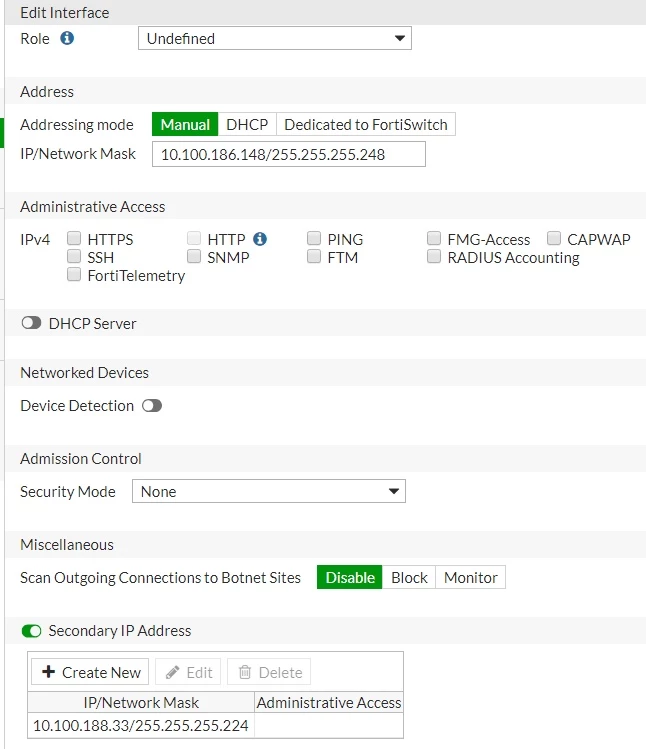

    At first, you have to add a secondary IP on the WAN interface:

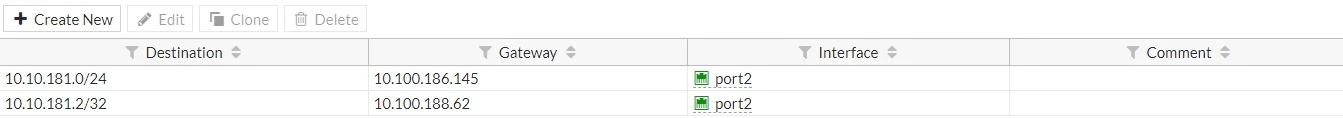

    And then, add static routes:



    beniori
    benioriAuthor
    New Member
    October 31, 2018

    Bubu, thanks for your reply, however I cannot see the 2 images.  Can you help?

    Bubu
    New Member
    October 31, 2018

    OK And now?
