how to see per IP based bandwidth

  • January 11, 2014
  • 3 replies
  • 6863 views
I am using foritnate 300c and here, dhcp is running. All of my users are getting IP automatically. I want to monitor IP address and per IP based bandwidth usage.

    3 replies

    Dave_Hall
    Dave_Hall
    New Member
    January 11, 2014

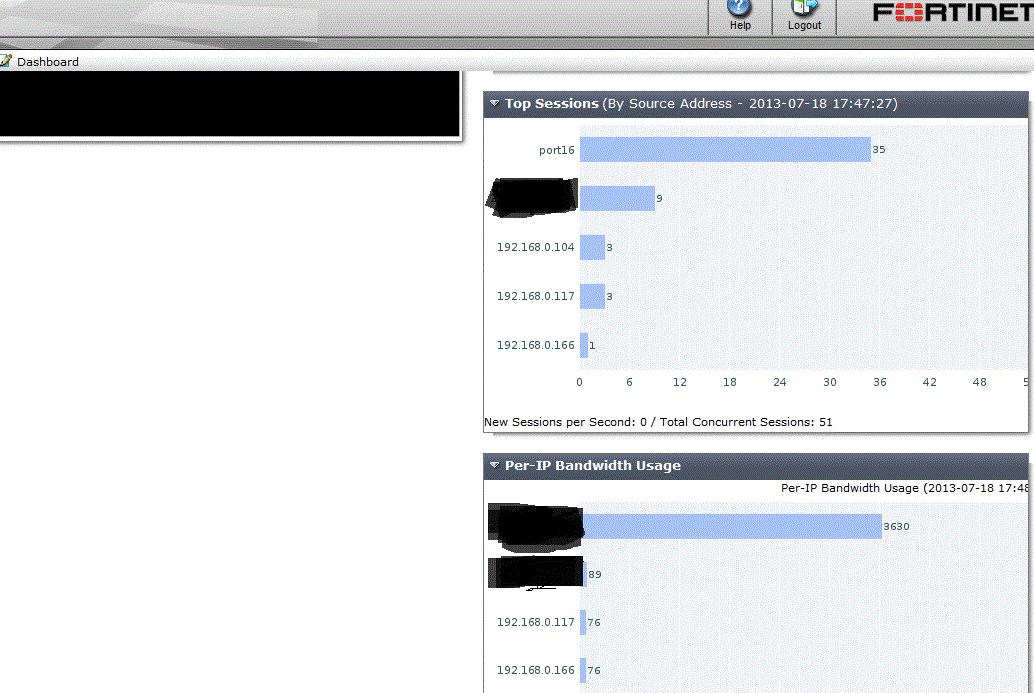

    On the Dashboard enable both the Top Sessions and Per-IP Bandwidth Usage wigets. This will allow you to see at a glance which IP addresses are using up most of the bandwidth. From this you can check/drill down into sessions to see what kind of traffic is going on.
    emnoc
    emnoc
    New Member
    January 11, 2014
    Just keep in mind that the top session holder does not always equal the top bandwidth user. Another option would be to use a opensource flow analyzer like ntop or enable sflow.
    Silver
    Silver
    New Member
    March 30, 2015

    Dear All,

    Am facing the same issues i cannot see per ip bandwidth usage on the dashboard.

    Firmware version 5 patch 11

    Any help plz
