How to save password on IPSEC dial up connection on Forticlient

Forum|Forum|3 years ago
March 7, 2023
5 replies
7920 views

Hello all,

FortiOS 7.2.4

EMS Server 7.0.7

Forticlient Enterprise on Android 7.0.7.0068

I have configured an IPSEC dial up connection in EMS server. This works perfectly but not "auto connect, Save password and Always UP.

After the IPSEC config was rolled out over EMS it works once, after disconnect alle 3 options are gone away and i must reenter my password on every connection. The strange thing... i see that user and "password" are saved in the forticlient.

The next strange thing... the options:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-activate-Save-Password-Auto-Connect-and/ta-p/197543

are not availabel anymore to configure... so were they are???

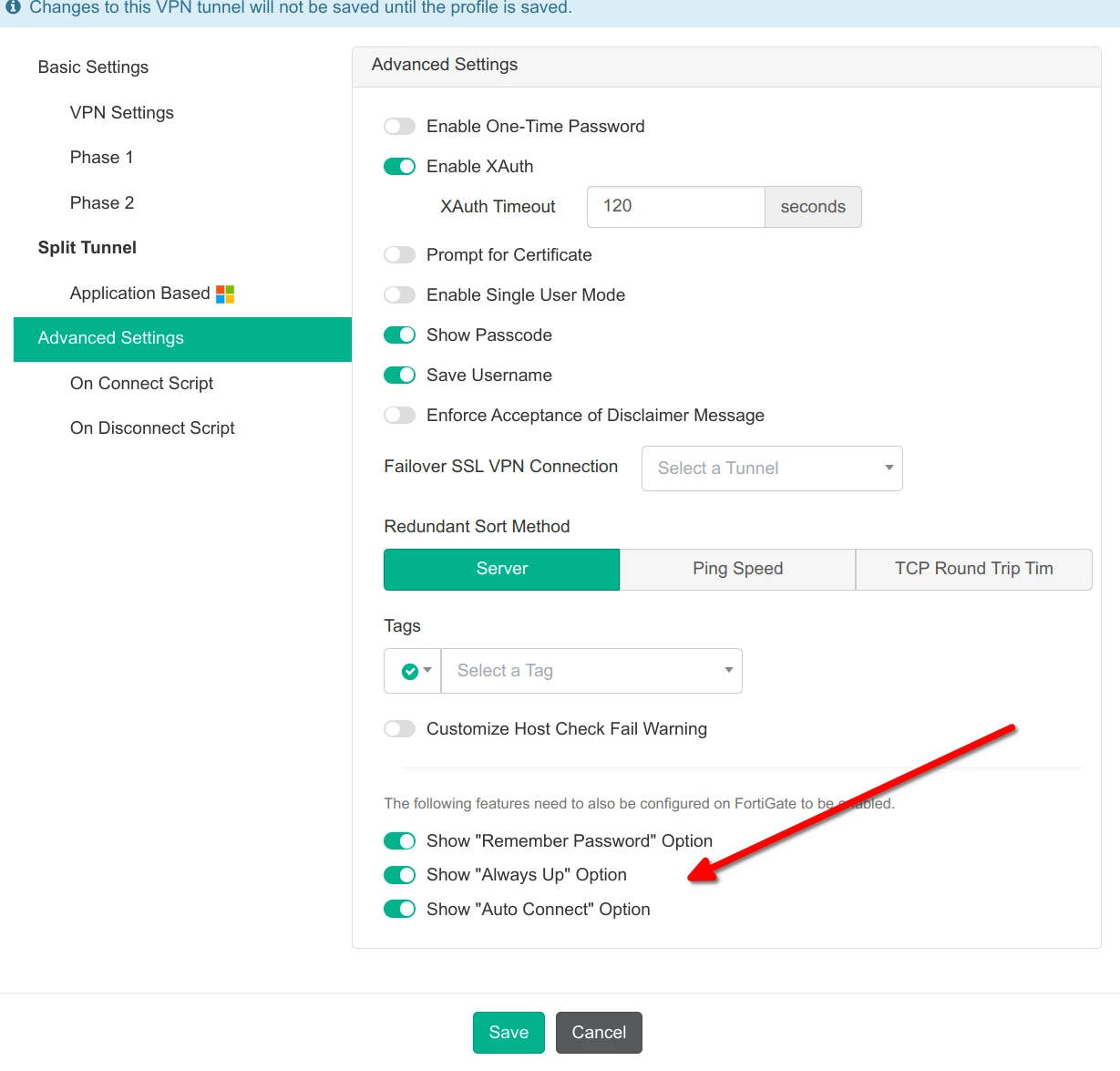

Only on EMS they are available, and yes i checked all boxes :)

Best answer by fireon

Could now FINALLY solve it. Last problem was still this option:

set authusrgrp "vpn"

this give me this strange loginscreen. I had to say "User Group Inherited from policy." After that it works normal.

And of course, in summary, a large part of the solution:

To unset the unity option, and after you can set password save options:

unset unity-support set client-auto-negotiate enable set save-password enable set client-keep-alive enable

:)

Stephen_G

Staff & Editor

Hello,

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Thanks,

Stephen_G - Fortinet Community Team

birendrakumar

Staff

Hello,

Can you please confirm if the below options is also enable on FGT side too,

set auto-connect enable

set keep-alive enable

set save-password enable

Please refer below documentation
https://community.fortinet.com/t5/FortiClient/Technical-Tip-FortiClient-EMS-Auto-connect-a-VPN-Tunnel/ta-p/195552

if the above option is not available in FGT side, I would suggest reporting a ticket with the FGT team with the valid FGT serial number.

Regards

fireonAuthor

Visitor III

fw01 (zuhause-IPSEC) # set save-password enable

Yes, I already knew the article. When I want to set this in the IPSEC, the Fortigate does not recognize it.

command parse error before 'save-password' Command fail. Return code -61

Now I have created a new VPN with the wizard, and activated the options in the wizard. Then there is the option. Strange.

Are there any dependencies to the options? Here are my vpn-configs. Here are my both configs. The first is the created testvpn, the option are set there.

set type dynamic         set interface "wan1"         set mode aggressive         set peertype any         set net-device disable         set mode-cfg enable         set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1         set comments "VPN: testvpn1 (Created by VPN wizard)"         set xauthtype auto         set authusrgrp "vpn"         set ipv4-start-ip 10.1.1.1         set ipv4-end-ip 10.1.1.5         set dns-mode auto         set save-password enable         set client-auto-negotiate enable         set client-keep-alive enable

The second one is my real config, there it is not possible the set "save-password or "keep-alive".

set type dynamic         set interface "wan1"         set peertype any         set net-device enable         set mode-cfg enable         set ipv4-dns-server1 192.168.1.1         set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1         set dpd on-idle         set comments "zuhause-IPSEC"         set xauthtype auto         set assign-ip-from name         set ipv4-split-include "secure-surf-routing"         set ipv4-name "IPSEC_TUNNEL_ADDR1"         set unity-support disable         set dpd-retrycount 10         set dpd-retryinterval 60

https://deepdoc.at

fireonAuthor

Visitor III

And again one step further.

Blame was the option: unity-support disable

No idea what this does. But if I throw this option out, the other options can be set successfully.

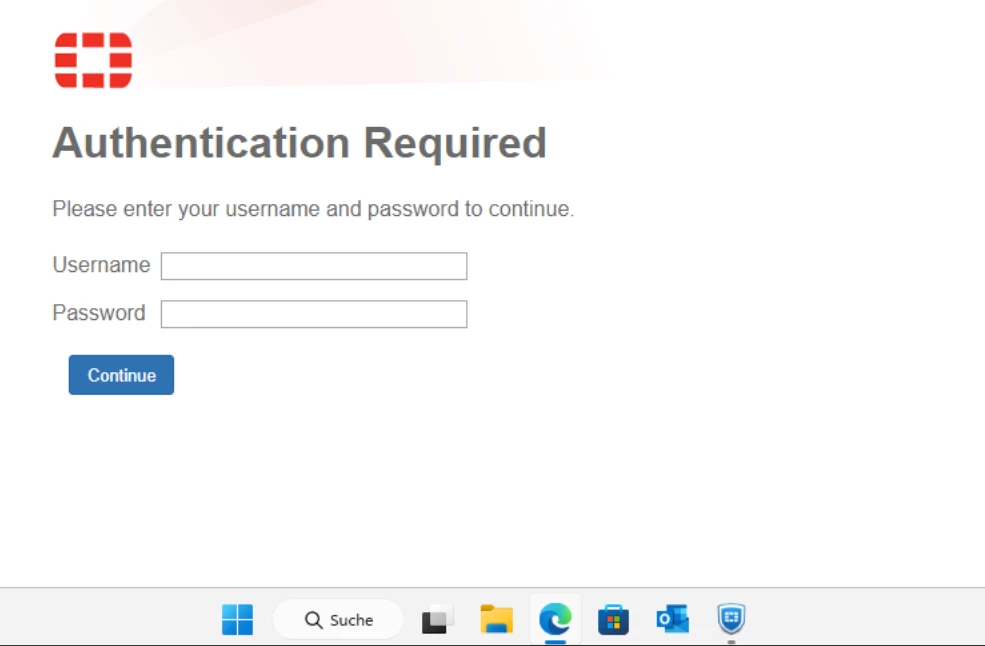

Now i see on my Android, and Windows11 (yes i tested it also with Windows), option for save password, keep alive and autoconnect. But now the next strange thing. After i conneced with the vpn successfully. I get in the webbrowser an special auth from the fortigate... WTF

The same on the Android... anyone an idea?

https://deepdoc.at
