How to redirect IP and port to network via an IPSec?

  • March 27, 2019
  • 1 reply
  • 3937 views

Hello everyone, I'm new here in the forum but I've always followed everyone's posts.

I have a problem and would like help.

I'm trying to direct a port to an IP that sits on another network through an IPSec but I'm not succeeding.

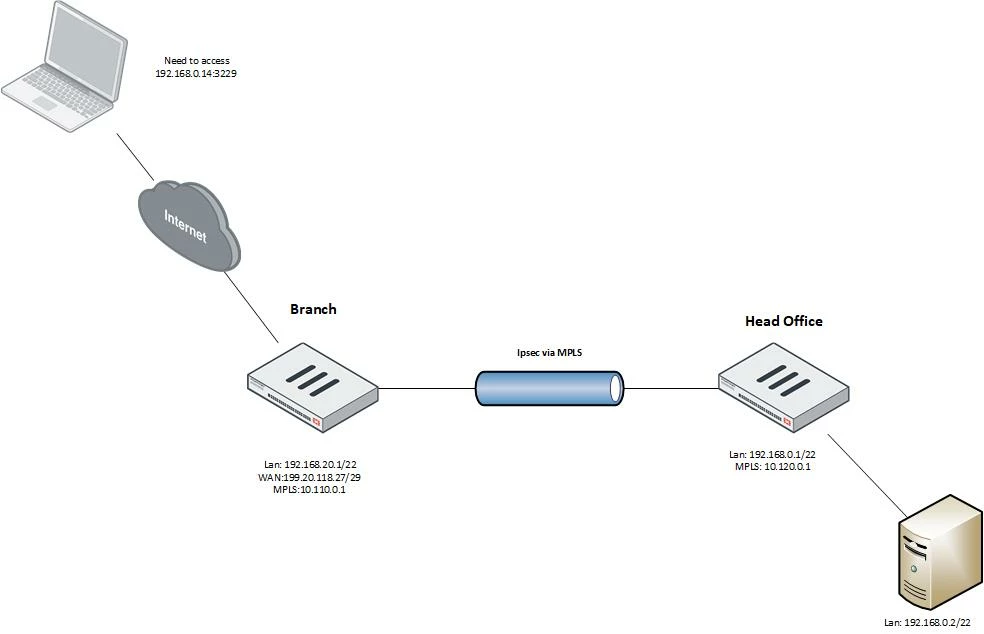

A diagram is shown below.



How can I access the IP: 192.168.0.2 over the WAN at 192.168.20.0/22 on port 3229?



Already configured the networks between head office and branch, internet and LAN, I can achieve both between head to branch and branch to between head.



Does anyone have any ideas?

:)

1 reply

Eric_Ambiel
Eric_AmbielAuthor
New Member
April 1, 2019

Good morning everyone.



I was able to solve the problem, it was related the static routes of the Fortigate in head-office. Previously I had set up static backup routes with different distances,priorities (failover) and the packets came by one route and tried to get out for another, I just put all the routes with the same priority and distance and bingo, the port forward worked, if anyone has some problem in configuring SD-WAN + IPSec redirection, can leave your questions.



Thank you :)

JoseMi
JoseMi
New Member
May 12, 2020

Hi,



I'm new in this forum. I have a similar problem. Can you explain more in detail this routing configuration? I tried several ones, but it does not work for me.



Thank you in advance.
