How to monitor link status changed up/down using Line notify.

  • May 17, 2023
  • 5 replies
  • 5332 views

I want to monitor link status (WAN) changed and send alert using Line notify. Can anyone please guide me.
Best regards,
Nantachai

5 replies

kvimaladevi
Staff
kvimaladevi
Staff
May 17, 2023

Hi nantachai_c,

You may have to use Webhook with automation stitch to integrate line notify with Fortigate. Please refer to the below link:

https://docs.fortinet.com/document/fortigate/6.2.14/cookbook/989735/webhook-action

Regards,

Vimala

    nantachai_c
    nantachai_cAuthor
    Explorer
    May 17, 2023

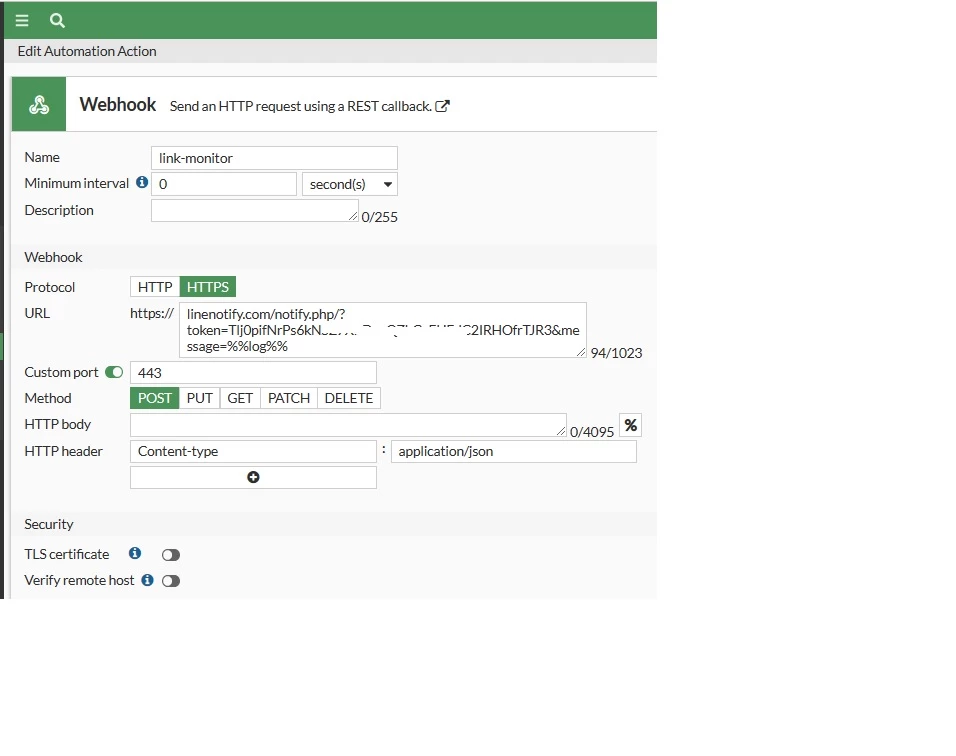

    I already tried webhook but it does not work.
    Please suggest what I mistake.
    Thank you for your help.


    gfleming
    Staff
    gfleming
    Staff
    May 17, 2023

    what is the configuration of your trigger?

      nantachai_c
      nantachai_cAuthor
      Explorer
      May 17, 2023

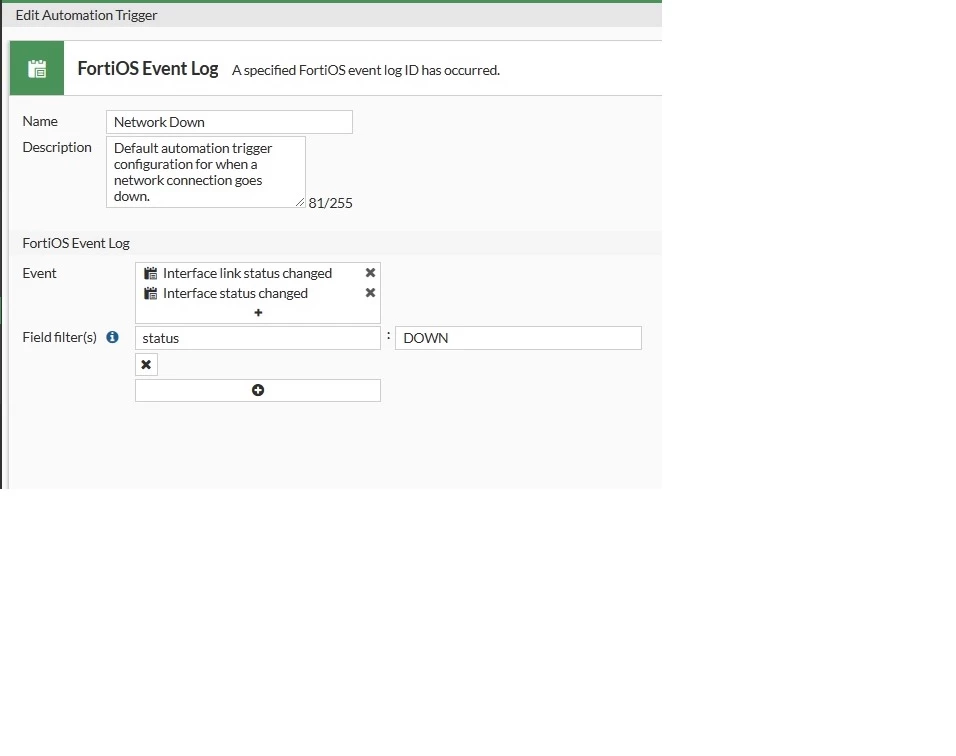

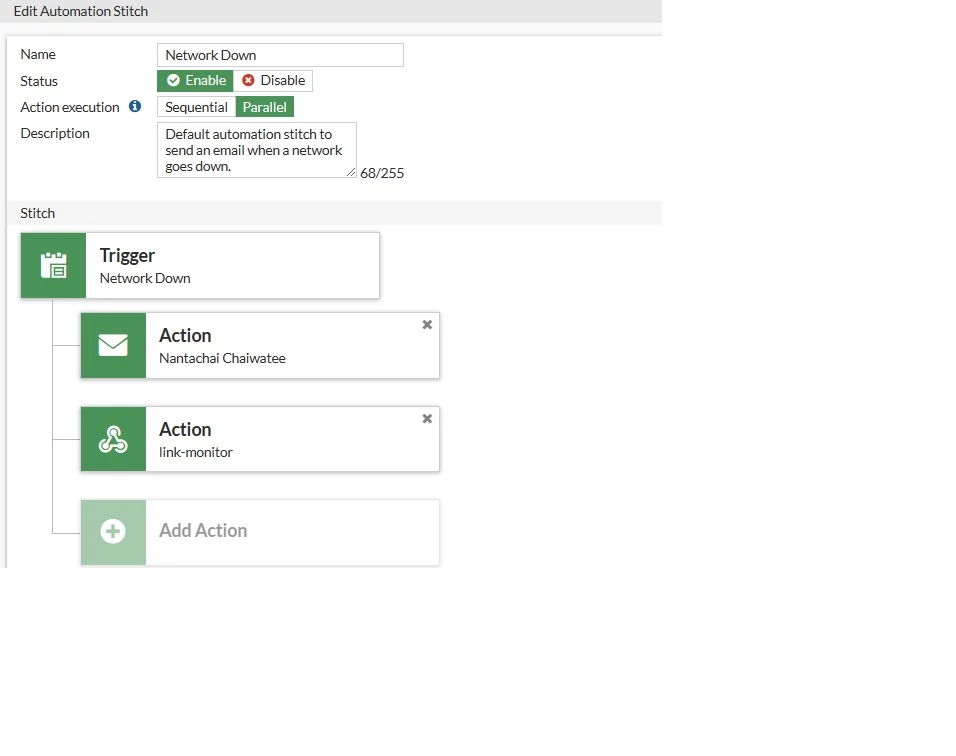

      Trigger and stitch show below.
      Just only email alert already done , line notify still not working.
      Best regards,
      Nantachai




      kvimaladevi
      Staff
      kvimaladevi
      Staff
      May 17, 2023

      Hi nantachai_c,



      Could you confirm the Fortigate version. Also, does using port 80(HTTP) work instead of HTTPS?



      Regards,

      Vimala

        nantachai_c
        nantachai_cAuthor
        Explorer
        May 17, 2023

        Yes,I already test HTTP (80) ,I got the same results.

        I testing with FGT-40F v7.2.4 and FWF-60E v7.4.0.

        Regards,

        Manocha_Joe
        Manocha_Joe
        New Member
        March 1, 2024

        Hi nantachai,

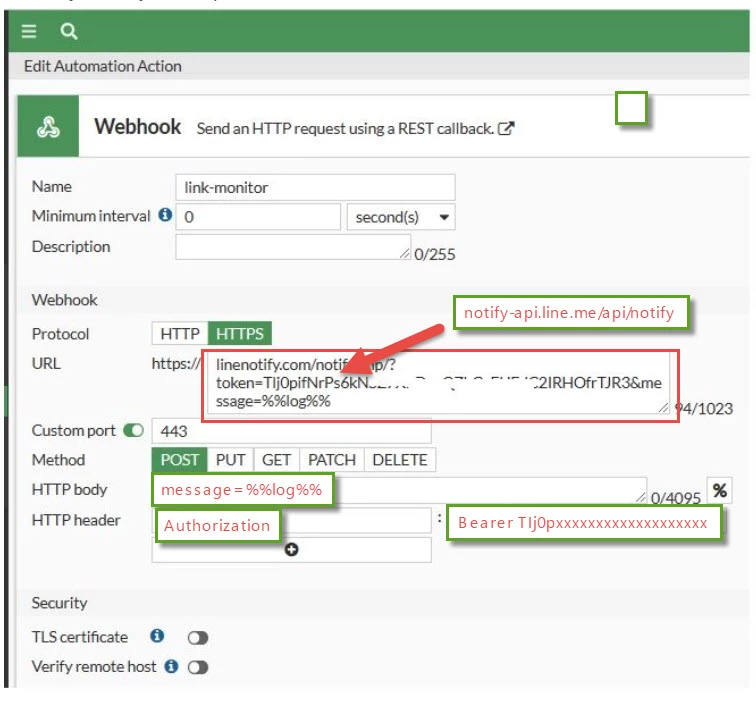

        Could you try to change a similar configuration?


          HanzllaQurshi
          HanzllaQurshi
          New Member
          March 1, 2024

          To monitor WAN link status changes and send alerts using Line Notify, you can use a scripting language like couples fitness plan & Python along with tools like Ping or Traceroute to check the status of the WAN link, and then use the Line Notify API to send alerts to your Line account.
