How to filter OSPF advertised routes

  • February 24, 2017
  • 10 replies
  • 87133 views

Hi Guys,

I'm trying to switch my national ipsec vpn site-to-site network from static routing to ospf. Each branch's got around 6 subnets from which only 4 should be routed via the ipsec tunnel. Using static routing it's easy since I add only what exactly I need.

My VPN network it's using a star topology and it might change to an extended star.

I've started with 2 branches, the HQ and a branch.

Everything works fine except that I'm not able to filter what routes are been advertised via OSPF since I'm using "config redistribute "connected""

Attached is a lab I did to test it, but still no luck. The routers in the diagram I've attached are FG-70D's.

I've tried:

- prefix-list with in and out on both sides - no luck

- access list with in and out on both sides - no luck



I'm missing something here, right ?!?!

Hope the diagram will give you a clear idea of what I wan to achieve.



Cheers,

Tony

    Best answer by support12

    This is for router A and for router B change 192.168.102.0 for 172.16.102.2 config router prefix-list     edit "Redistribute-Connected"             config rule                 edit 1                     set action deny                     set prefix 192.168.102.0 255.255.255.0                     unset ge                     unset le                 next                 edit 4                     set prefix any                     unset ge                     unset le                 next             end     next end config router route-map     edit "Filter-Connected"             config rule                 edit 1                     set match-ip-address "Redistribute-Connected"                 next             end     next end config router ospf         config redistribute "connected"             set routemap "Filter-Connected"         end end

    10 replies

    MikePruett
    MikePruett
    New Member
    February 24, 2017

    You use config router access list to perform this task



    http://kb.fortinet.com/kb....do?externalID=FD36851

    asgspl
    asgsplAuthor
    New Member
    February 25, 2017

    Hi Mike,



    I've been trying for the last few hours to use the method mention in your link but doesn't work and has a weird behavior as well.

    I'm adding an access list on router_A as follows:

    Router_A # show router access-list



    [size="2"]config router access-list[/size] [size="2"]    edit "OSPF_Filter"[/size] [size="2"]        config rule[/size] [size="2"]            edit 1[/size] [size="2"]                set action deny[/size] [size="2"]                set prefix 172.16.102.0 255.255.255.0[/size] [size="2"]                set exact-match enable[/size] [size="2"]            next[/size] [size="2"]        end[/size] [size="2"]    next[/size] [size="2"]end[/size]



    [size="2"]OSPF config looks like this:[/size]

    [size="2"]Router_A # show router ospf[/size] [size="2"]config router ospf[/size] [size="2"]    set abr-type cisco[/size] [size="2"]    set router-id 0.0.0.1[/size] [size="2"]         config area[/size] [size="2"]             edit 0.0.0.0[/size] [size="2"]             next[/size] [size="2"]         end[/size] [size="2"]         config ospf-interface[/size] [size="2"]             edit "WAN1_TO_B"[/size] [size="2"]                 set interface "TO_B"[/size] [size="2"]                 set dead-interval 40[/size] [size="2"]                 set hello-interval 10[/size] [size="2"]                 set network-type point-to-point[/size] [size="2"]             next[/size] [size="2"]         end[/size] [size="2"]         config network[/size] [size="2"]             edit 1[/size] [size="2"]                 set prefix 10.101.1.1 255.255.255.255[/size] [size="2"]             next[/size] [size="2"]         end[/size] [size="2"]         config distribute-list[/size] [size="2"]             edit 1[/size] [size="2"]                 set access-list "OSPF_Filter"[/size] [size="2"]             next[/size] [size="2"]         end[/size] [size="2"]         config redistribute "connected"[/size] [size="2"]             set status enable[/size] [size="2"]         end[/size] [size="2"]         config redistribute "static"[/size] [size="2"]         end[/size] [size="2"]         config redistribute "rip"[/size] [size="2"]         end[/size] [size="2"]         config redistribute "bgp"[/size] [size="2"]         end[/size] [size="2"]         config redistribute "isis"[/size] [size="2"]         end[/size] [size="2"]end[/size]



    [size="2"]All I get is this:[/size]



    [size="2"]Router_A # get router info ospf database brief[/size]

    [size="2"]Router Link States (Area 0.0.0.0)[/size]

    [size="2"]Link ID ADV Router Age Seq# CkSum Flag Link count[/size] [size="2"]0.0.0.1 0.0.0.1 835 8000003b 36a0 0021 3[/size] [size="2"]0.0.0.2 0.0.0.2 842 80000038 24b3 0002 3[/size]

    [size="2"]AS External Link States[/size]

    [size="2"]Link ID ADV Router Age Seq# CkSum Flag Route Tag[/size] [size="2"]10.0.0.0 0.0.0.2 874 80000008 9820 0002 E2 10.0.0.0/30 0[/size] [size="2"]10.101.1.1 0.0.0.2 1454 80000008 d479 0002 E2 10.101.1.1/32 0[/size] [size="2"]172.16.100.0 0.0.0.2 1424 80000008 5747 0002 E2 172.16.100.0/24 0[/size] [size="2"]172.16.101.0 0.0.0.2 1704 80000008 4c51 0002 E2 172.16.101.0/24 0[/size] [size="2"]172.16.102.0 0.0.0.2 1784 80000008 415b 0002 E2 172.16.102.0/24 0[/size]



    [size="2"]Router_A # get router info ospf database brief[/size]

    [size="2"]Router Link States (Area 0.0.0.0)[/size]

    [size="2"]Link ID ADV Router Age Seq# CkSum Flag Link count[/size] [size="2"]0.0.0.1 0.0.0.1 835 8000003b 36a0 0021 3[/size] [size="2"]0.0.0.2 0.0.0.2 842 80000038 24b3 0002 3[/size]

    [size="2"]AS External Link States[/size]

    [size="2"]Link ID ADV Router Age Seq# CkSum Flag Route Tag[/size] [size="2"]10.0.0.0 0.0.0.2 874 80000008 9820 0002 E2 10.0.0.0/30 0[/size] [size="2"]10.101.1.1 0.0.0.2 1454 80000008 d479 0002 E2 10.101.1.1/32 0[/size] [size="2"]172.16.100.0 0.0.0.2 1424 80000008 5747 0002 E2 172.16.100.0/24 0[/size] [size="2"]172.16.101.0 0.0.0.2 1704 80000008 4c51 0002 E2 172.16.101.0/24 0[/size] [size="2"]172.16.102.0 0.0.0.2 1784 80000008 415b 0002 E2 172.16.102.0/24 0[/size]



    [size="2"]Not sure if you've noticed, but I'm on router_A and instead to filter the route in green, I'm actually filtering all my connected networks/routes.[/size]

    Am I missing something here ?



    Below is the OSPF output from Router_B:



    [size="2"]Router_B # get router info ospf database brief[/size]

    [size="2"]Router Link States (Area 0.0.0.0)[/size]

    [size="2"]Link ID ADV Router Age Seq# CkSum Flag Link count[/size] [size="2"]0.0.0.1 0.0.0.1 1133 8000003b 36a0 0012 3[/size] [size="2"]0.0.0.2 0.0.0.2 1138 80000038 24b3 0021 3[/size]

    [size="2"]AS External Link States[/size]

    [size="2"]Link ID ADV Router Age Seq# CkSum Flag Route Tag[/size] [size="2"]10.0.0.0 0.0.0.2 1170 80000008 9820 0031 E2 10.0.0.0/30 0[/size] [size="2"]10.101.1.1 0.0.0.2 1750 80000008 d479 0031 E2 10.101.1.1/32 0[/size] [size="2"]172.16.100.0 0.0.0.2 1720 80000008 5747 0031 E2 172.16.100.0/24 0[/size] [size="2"]172.16.101.0 0.0.0.2 190 80000009 4a52 0031 E2 172.16.101.0/24 0[/size] [size="2"]172.16.102.0 0.0.0.2 270 80000009 3f5c 0031 E2 172.16.102.0/24 0[/size]



    [size="2"]Router_B # get router info routing-table all [/size] [size="2"]Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP[/size] [size="2"] O - OSPF, IA - OSPF inter area[/size] [size="2"] N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2[/size] [size="2"] E1 - OSPF external type 1, E2 - OSPF external type 2[/size] [size="2"] i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area[/size] [size="2"] * - candidate default[/size]

    [size="2"]C 10.0.0.0/30 is directly connected, wan1[/size] [size="2"]C 10.101.1.1/32 is directly connected, TO_A[/size] [size="2"]C 10.101.1.2/32 is directly connected, TO_A[/size] [size="2"]C 172.16.100.0/24 is directly connected, internal1[/size] [size="2"]C 172.16.101.0/24 is directly connected, internal2[/size] [size="2"]C 172.16.102.0/24 is directly connected, internal3[/size]



    Cheers,

    Tony



    asgspl
    asgsplAuthor
    New Member
    February 25, 2017

    Hi Guys,

    After some struggle, I've managed to prevent the routing table to be populated with I don't want.

    This is not affecting, filter, OSPF LS updates and doesn't impact the LSDB nor the LSAs redistribution.

    This is just a filter acting on the routing table.



    What I've done:

    [left]Router_B # show router prefix-list [size="2"]config router prefix-list[/size] [size="2"] edit "OSPF-Filter"[/size] [size="2"]config rule[/size] [size="2"]edit 1[/size] [size="2"]set action deny[/size] [size="2"]set prefix 192.168.102.0 255.255.255.0[/size] [size="2"]unset ge[/size] [size="2"]unset le[/size] [size="2"]next[/size] [size="2"]edit 2[/size] [size="2"] set prefix any[/size] [size="2"] unset ge[/size] [size="2"] unset le[/size] [size="2"] next[/size] [size="2"] end[/size] [size="2"]next[/size] [size="2"]end[/size][/left]



    [size="2"]Router_B # show router ospf [/size] [size="2"]config router ospf[/size] [size="2"] set abr-type cisco[/size] [size="2"] set router-id 0.0.0.2[/size] [size="2"] set distribute-list-in "OSPF-Filter"[/size] [size="2"] config area[/size] [size="2"] edit 0.0.0.0[/size] [size="2"] next[/size] [size="2"] end[/size] [size="2"] config ospf-interface[/size] [size="2"] edit "WAN1_TO_A"[/size] [size="2"] set interface "TO_A"[/size] [size="2"] set dead-interval 40[/size] [size="2"] set hello-interval 10[/size] [size="2"] set network-type point-to-point[/size] [size="2"] next[/size] [size="2"] end[/size] [size="2"] config network[/size] [size="2"] edit 1[/size] [size="2"] set prefix 10.101.1.2 255.255.255.255[/size] [size="2"] next[/size] [size="2"] end[/size] [size="2"] config redistribute "connected"[/size] [size="2"] set status enable[/size] [size="2"] end[/size] [size="2"] config redistribute "static"[/size] [size="2"] end[/size] [size="2"] config redistribute "rip"[/size] [size="2"] end[/size] [size="2"] config redistribute "bgp"[/size] [size="2"] end[/size] [size="2"] config redistribute "isis"[/size] [size="2"] end[/size] [size="2"]end[/size]



    [size="2"]The result:[/size]



    [size="2"]The database still contains all routes, including the one in red.[/size]



    Router_B # get router info ospf database brief

    Router Link States (Area 0.0.0.0)

    Link ID ADV Router Age Seq# CkSum Flag Link count 0.0.0.1 0.0.0.1 852 80000042 28a7 0002 3 0.0.0.2 0.0.0.2 845 80000040 14bb 0021 3

    AS External Link States

    Link ID ADV Router Age Seq# CkSum Flag Route Tag 10.0.0.0 0.0.0.1 1153 80000001 ac14 0002 E2 10.0.0.0/30 0 10.0.0.0 0.0.0.2 861 80000001 a619 0021 E2 10.0.0.0/30 0 10.101.1.1 0.0.0.2 861 80000001 e272 0021 E2 10.101.1.1/32 0 10.101.1.2 0.0.0.1 1153 80000001 de76 0002 E2 10.101.1.2/32 0 172.16.100.0 0.0.0.2 861 80000001 6540 0021 E2 172.16.100.0/24 0 172.16.101.0 0.0.0.2 861 80000001 5a4a 0021 E2 172.16.101.0/24 0 172.16.102.0 0.0.0.2 861 80000001 4f54 0021 E2 172.16.102.0/24 0 192.168.100.0 0.0.0.1 1153 80000001 3fba 0002 E2 192.168.100.0/24 0 192.168.101.0 0.0.0.1 1153 80000001 34c4 0002 E2 192.168.101.0/24 0 [size="2"]192.168.102.0 0.0.0.1 35 80000002 27cf 0012 E2 192.168.102.0/24 0[/size]



    But the routing table, doesn't:

    Router_B # get router info routing-table all Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area * - candidate default

    C 10.0.0.0/30 is directly connected, wan1 C 10.101.1.1/32 is directly connected, TO_A C 10.101.1.2/32 is directly connected, TO_A C 172.16.100.0/24 is directly connected, internal1 C 172.16.101.0/24 is directly connected, internal2 C 172.16.102.0/24 is directly connected, internal3 [size="2"]O E2 192.168.100.0/24 [110/10] via 10.101.1.1, TO_A, 00:15:39[/size] [size="2"]O E2 192.168.101.0/24 [110/10] via 10.101.1.1, TO_A, 00:15:39[/size]



    Now, it's all good, but, I would really really like to stop the route been distributed from the router it belongs too.

    This means, Router_A should not send that route at all.



    Cheers,

    Tony

    support12
    support12
    New Member
    February 26, 2017

    and  delete this from both



    [size="2"]set distribute-list-in "OSPF-Filter"[/size]



    support12
    support12Answer
    New Member
    February 26, 2017

    This is for router A and for router B change 192.168.102.0 for 172.16.102.2 config router prefix-list     edit "Redistribute-Connected"             config rule                 edit 1                     set action deny                     set prefix 192.168.102.0 255.255.255.0                     unset ge                     unset le                 next                 edit 4                     set prefix any                     unset ge                     unset le                 next             end     next end config router route-map     edit "Filter-Connected"             config rule                 edit 1                     set match-ip-address "Redistribute-Connected"                 next             end     next end config router ospf         config redistribute "connected"             set routemap "Filter-Connected"         end end

    asgspl
    asgsplAuthor
    New Member
    February 27, 2017

    Thank you for your replies. I'll try to reproduce this on my testing environment and I'll let you guys know.



    asgspl
    asgsplAuthor
    New Member
    February 28, 2017

    Advanced Routing for FortiOS 5.2

    Fortinet Technologies Inc.



    Page 56



    "Route maps

    [size="2"]Route maps are a way for the FortiGate unit to evaluate optimum routes for forwarding packets or suppressing the routing of packets to particular destinations. Compared to access lists, route maps support enhanced packet-matching. In addition, route maps can be configured to permit or deny the addition of routes to the FortiGate unit routing table and make changes to routing information dynamically as defined through route-map rules. Route maps can be used for limiting both received route updates, and sent route updates. This can include the redistribution of routes learned from other types of routing. For example if you don’t want to advertise local static routes to external networks, you could use a route map to accomplish this."[/size]



    Thank you Edwin, works like a charm.



    Personal note:

    I would recommend that every tech who's thinking to play with dynamic routing to read from scratch the whole

    "FortiOS™ Handbook - Advanced Routing VERSION 5.2.2" and try to reproduce every example in the lab.



    Cheers,

    Tony

    YamGoD
    YamGoD
    New Member
    March 13, 2020

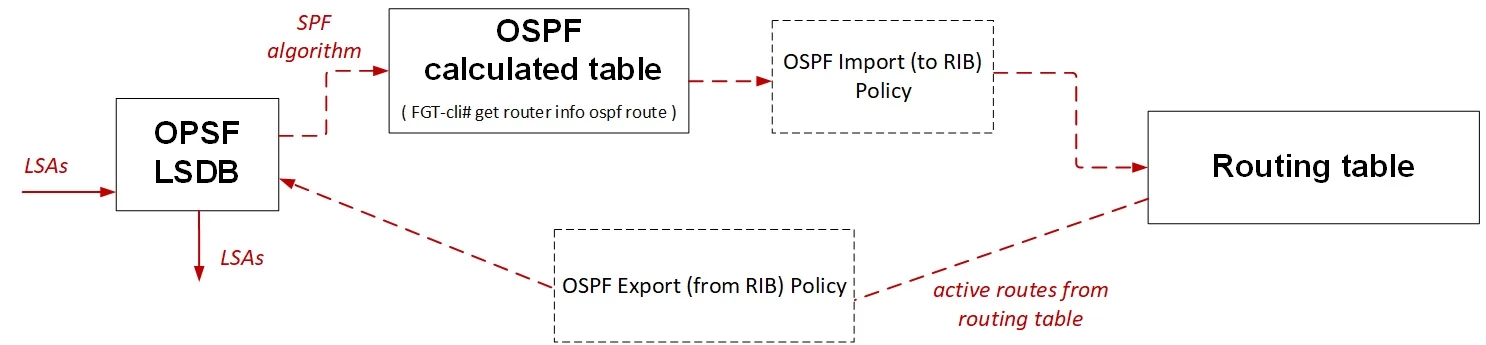

    In general, the scheme of filtering can be represented as follows.





        If the route fell into the OSPF domain, then on routers it can be controlled by import policies from the OSPF database to the routing table. The LSA will be contained in the databases of all OSPF routers, however the policy can control the existence of a route in the routing table.         For example, in addition to router B, you will have one more router C (RouterA -- RouterB -- RouterC). Import policy filtering on B will not prohibit the transfer of LSA further to С, therefore, the injection of a route in the OSPF area by router forces it to be filtered (by import policies, not export policies) on all routers, which is time-consuming.



            Import policy implemented in Fortigate using distribute-list-in configuration section. In your case on Router B:



    ############# Import policy example ##################

     [style="background-color: #ffffff;"]  config router access-list[/style] [style="background-color: #ffffff;"]        edit connected_to_ospf_import[/style] [style="background-color: #ffffff;"]            config rule[/style] [style="background-color: #ffffff;"]                edit 1[/style] [style="background-color: #ffffff;"]                    set action deny[/style] [style="background-color: #ffffff;"]                    set prefix 192.168.102.0/24     #remote prefix but not local one (172.17.102.0/24)[/style] [style="background-color: #ffffff;"]                    set exact-match enable            #if you have for example 192.168.102.128/25 and you need only deny                                                                             #192.168.102.0/24 but not its subnets[/style] [style="background-color: #ffffff;"]                next[/style] [style="background-color: #ffffff;"]                edit 2[/style] [style="background-color: #ffffff;"]                    set action permit[/style] [style="background-color: #ffffff;"]                    set prefix any[/style] [style="background-color: #ffffff;"]                next[/style] [style="background-color: #ffffff;"]            end[/style] [style="background-color: #ffffff;"]        next[/style] [style="background-color: #ffffff;"]    end[/style] [style="background-color: #ffffff;"]    config router ospf[/style] [style="background-color: #ffffff;"]        set distribute-list-in connected_to_ospf_import[/style]

     ##############################################

            In order to prohibit the route from entering the OSPF domain, you can use export policies.             Export policy implemented in Fortigate by using acccess-list in distribute-list configuration section or by using route-map in redistribute configuration section. In your case on Router B (and you try to use it on router A, which is not correct): ############ Distribute list example ###################     ROUTER B#         config router access-list                                                                 edit connected_to_ospf_export                                 config rule                 edit 1                     set action deny                     set prefix 172.16.102.0/24 #local prefix injected into OSPF on router itself (not remote prefix)                     set exact-match enable                 next                 edit 2                     set action permit                     set prefix any                 next             end         next     end     config router ospf         config distribute-list             edit 1                 set access-list connected_to_ospf_export                 set protocol connected #by default             next         end     end ################################################### ############ Route map example ######################     config router access-list                                                                 edit connected_to_ospf_export_acl                                 config rule                 edit 1                     set action deny                     set prefix 172.16.102.0/24 #local prefix injected into OSPF on router itself (but not remote prefix)                     set exact-match enable                 next                 edit 2                     set action permit                     set prefix any                 next             end         next     end     config router route-map         edit connected_to_ospf_export_rm             config rule                 edit 1                     set action permit                     set match-ip-address connected_to_ospf_export_acl                 next             end         next     end     config router ospf         config redistribute “connected”             set status enable             set routemap connected_to_ospf_export_rm         end     end
