Question

How to Create Subnet at FortiAnalyzer

  • June 25, 2025
  • 2 replies
  • 768 views

How to Create Subnet at FortiAnalyzer when want to generate reports.

For example,

User Top 500 Websites by Bandwidth

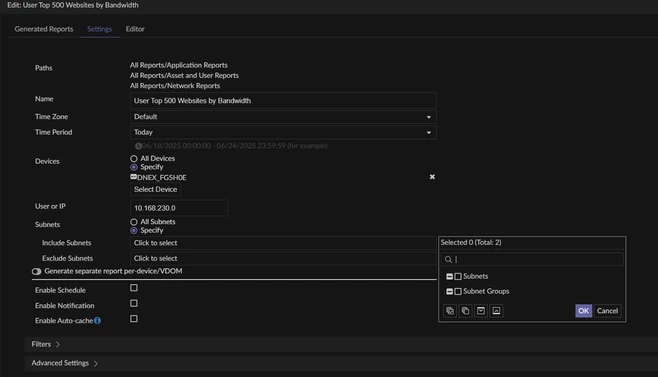

->Settings->Subnet 2: All Subnet & Specific Subnet.  Select subnet.. -->Include Subnets -> Click Select
I want to choose 10.168.230.0/24

But no button to add subnet. Please Help me




Screenshot 2025-06-25 172907.png



2 replies

Jean-Philippe_P
Staff & Editor
Jean-Philippe_P
Staff & Editor
June 28, 2025

Hello Hakam,



Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.



Thanks,

Jean-Philippe - Fortinet Community Team
smkml
Staff
smkml
Staff
June 29, 2025

Hi @Hakam ,

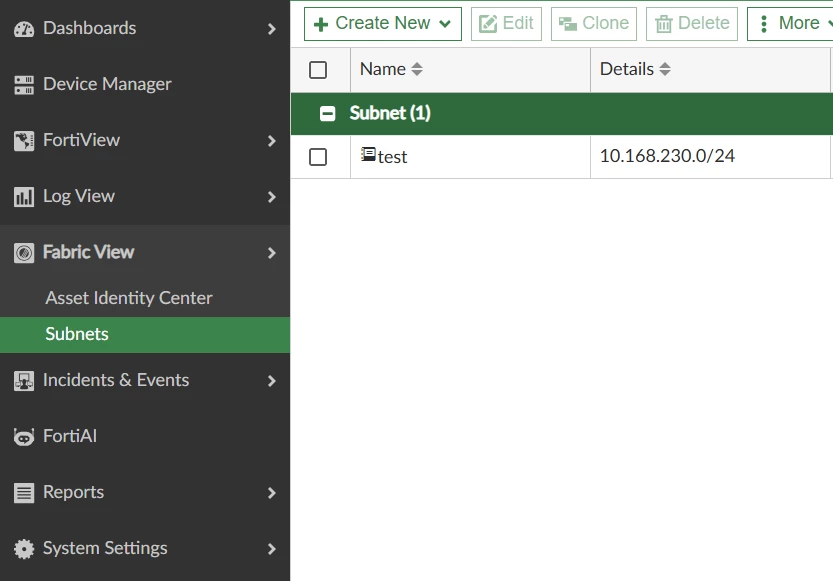

Basically you need to add the subnet first under Fabric View > Subnet > Create New

Screenshot 2025-06-29 135201.png

 

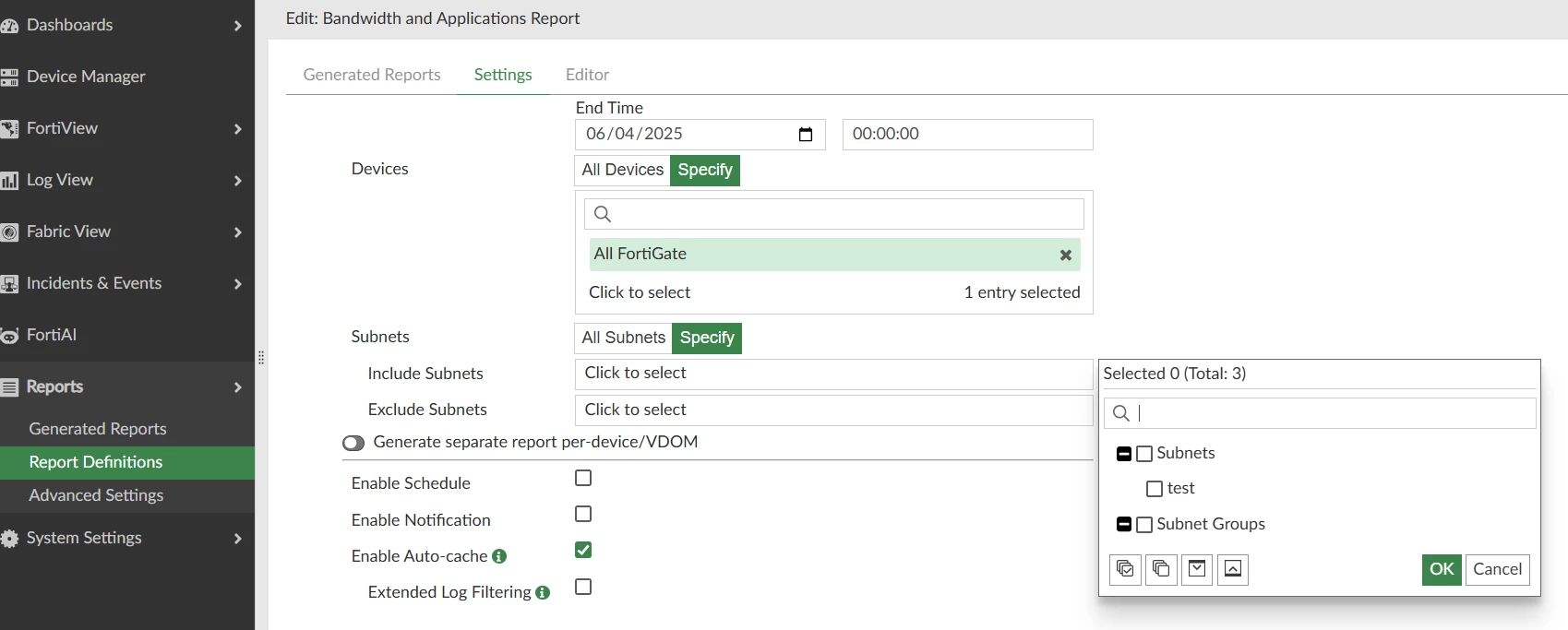

Then you can choose to include or exclude in the report setting.

Screenshot 2025-06-29 135339.png
