Question

How to convert checkpoint 13500 R77.30 to fortigate issue

  • January 12, 2023
  • 4 replies
  • 3417 views

[Updated: issue Solved]



Hi anyone,



does anyone have knowledge on how to download the config from this firewall for the forticonverter to work?

They are using Checkpoint Gaia to check checkpoint policies and manage it.

I had tried using the guide provided but it could not work on how to download it.



https://docs.fortinet.com/document/forticonverter/7.0.1/online-help/800698/saving-the-check-point-source-configuration-file-from-smart-center



Solution:

> Saving the Check Point source configuration file from Smart Center(GAIA)

> > >  Both Checkpoint Smart Center & Gateways with version before R80.10



Login to the SSH via Putty.

After login, change the mode to Expert.

Then key pwd to check your current directories.

To confirm the checkpoint version, key in fw ver -k

To list the directories, key  ls -al

To change directories, key  cd



File directories: $FWDIR/conf/object_5_0.C

It will automatically change the directories to /opt/CPsuite-R77/fw1/conf/



Next is to use winscp or scp to export/download the file from the checkpoint to the local desktop.

4 replies

Anthony_E
Staff
Anthony_E
Staff
January 15, 2023

Hello Steven,



Thank you for using the Community Forum.

I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


Regards,

Best Regards
    StevenT
    StevenTAuthor
    Explorer II
    January 17, 2023

    Thank you Anthony.



    Due to the Fortigate is yet to register, i could not open a tech ticket to request for technical help immediate. And i had to resort to this forum for help.

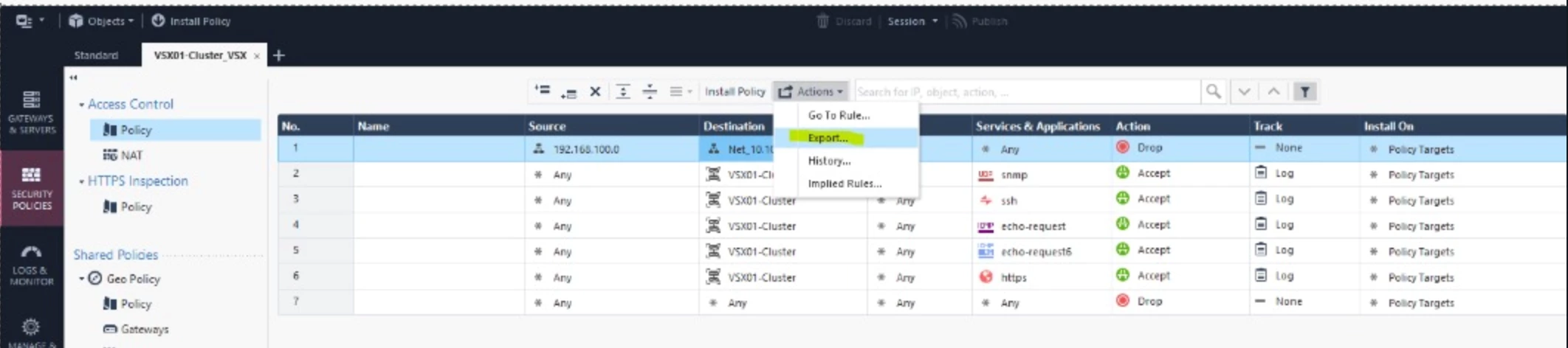

    Even their smart Dashboard does not have the Action button as per the image below.



    Is there any tools to export the file out?




    Anthony_E
    Staff
    Anthony_E
    Staff
    January 17, 2023

    Hi Steven,



    I am not sure. I will try to fins an expert who could reply to this question.



    Regardsl

    Best Regards
    StevenT
    StevenTAuthor
    Explorer II
    January 17, 2023

    Thank you very much Anthony.

    I am looking into all resources I could find online else the project for this migration to FG1101E will fail.

    Anthony_E
    Staff
    Anthony_E
    Staff
    January 18, 2023

    Hello Steven,



    I m still looking for somebody.

    I don t lose hope :)!



    Regards,

    Best Regards
    StevenT
    StevenTAuthor
    Explorer II
    January 18, 2023

    Thank you Anthony for the strong support but I had found the solution(Paid a freelancer).

    I will update the first post with details so others will know how to solve it.



      Anthony_E
      Staff
      Anthony_E
      Staff
      January 18, 2023

      Ha cool!!!

      Thanks a ton!!!!



      Best Regards
