How to Change the IP of FortiSIEM Supervisor

Forum|Forum|4 years ago
April 11, 2022
2 replies
3374 views

I find that I cant change the IP with executing the configFSM.sh again after I had already installed this supervisor.

If I try to do it, maybe you can install successfully, but you will find your Database Online Data installed twice and you can see it at Admin > Setting > Database. It will make your ANALYTUCS feature abnormal although FortiSIEM agent had select log to database.

(Schematic)

2022-03-25 14_05_44-FortiSIEM - root@2001-b030-2308-0006-020c-29ff-feaa-7b3f__usr_local_bin - Xshell.png

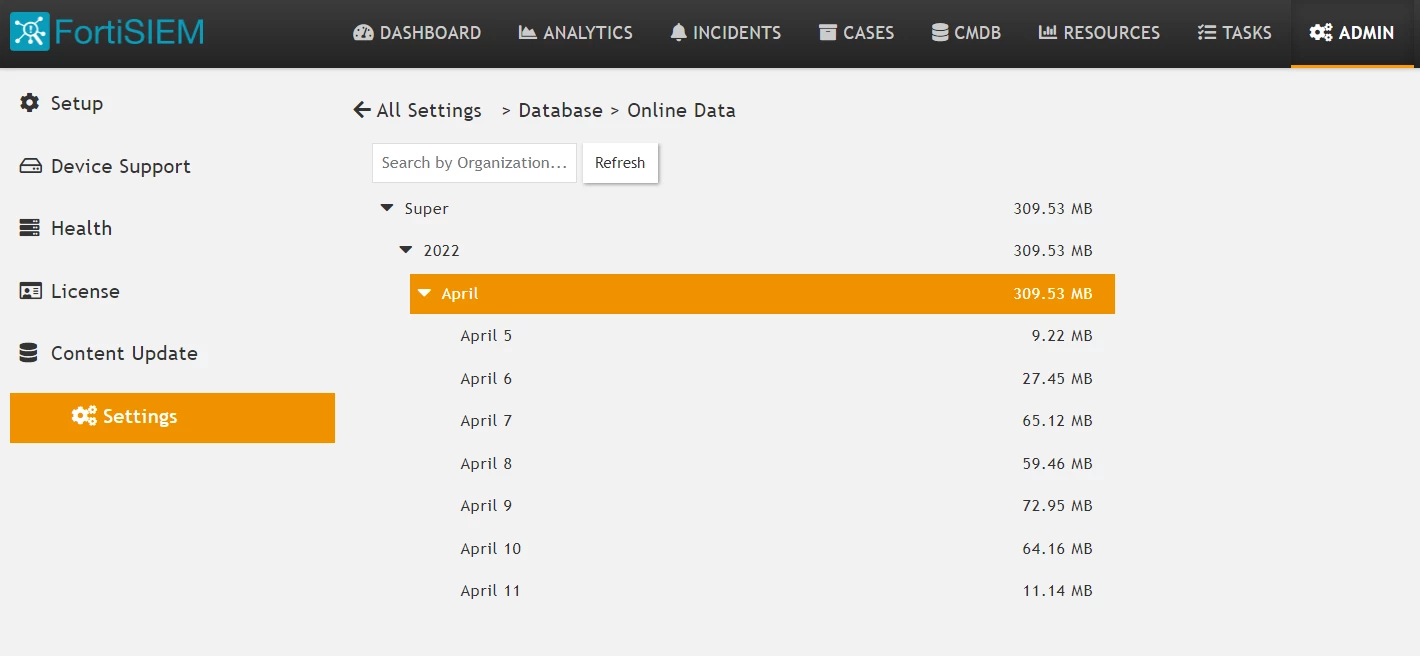

(If you execute configFSM.sh again, FortiSIEM will display two database, and make your Analytics feature abnormal)

(this picture is normal situation)

2022-04-11 14_52_00-FortiSIEM.png

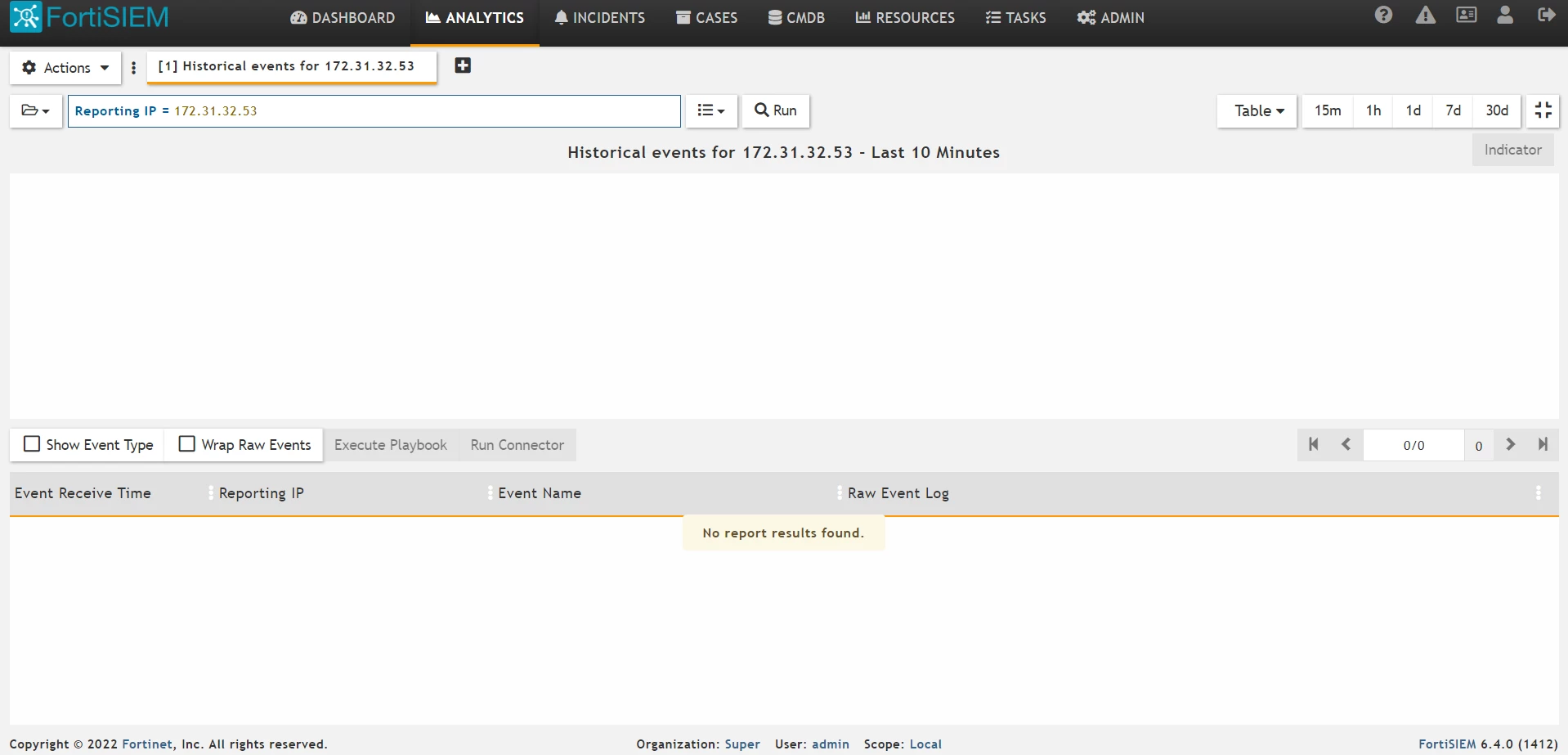

(Analytics feature abnormal) (Schematic)

2022-04-11 15_17_31-設定.png

p.s I had asked my Fortinet parnter 1 year ago when I use version 5.2, but it still can't solve this Issue.

Fortisiem

A

Anonymous_User

Contributor III

Hello @techbeck ,

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Thanks,

premchanderr

Staff & Editor

Hi @techbeck ,

How do you say two database gets configured ? Have you noticed any issue like that. Hit Refresh tab on the FSM Online Data Page.

To change IP address of Fortisiem super, ssh via root and run below commands:
# cd /usr/local/bin
# configFSM.sh
- Select Timezone - No
- Select to configure supervisor
- Choose option "change-ip" and enter all the values. Run the script.

If issue still persists let me Fortisiem version , storage type and any error.

Note:
1) Take a snapshot of VM before making any changes.
2) System will be rebooted after you run the configFSM command
