How to add traffic shaper to a policy?

Forum|Forum|5 years ago
April 10, 2021
7 replies
8112 views

Dear all,

How can I add a traffic shaper to a single policy as attached screen capture? Is it need to edit in CLI?

Leo

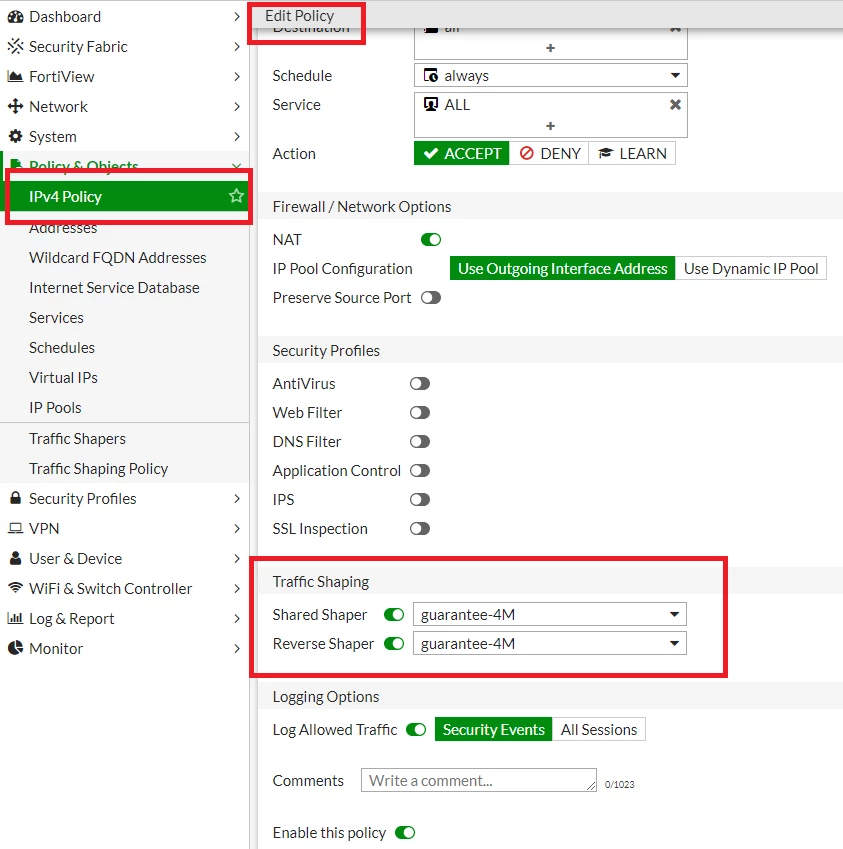

Traffic Shaping in single policy.png

Best answer by Tom99

The CLI commands inside the policy are

set traffic-shaper "guarantee-4M" set traffic-shaper-reverse "guarantee-4M"

Toshi_Esumi

SuperUser

What version are you running on your FGT? My 6.2 doesn't even show Traffic Shaping section on a policy any more. But as your GUI is showing, your version has "Shaping Policy" setting in the menu. Use that one instead. Unless you have to mark packets with DSCP and your version's shaping policy doesn't allow marking, you really don't have to use traffic shaping on a policy. In that case, you have to use CLI anyway.

leockwAuthor

New Member

Hi Toshi Esumi,

It is 6.0.11 build0387(GA) running on a 90D, it is setup and provided by tel-co.

Since we are switching to another tel-co, therefore, we need to replace it by a new purchase 80E. If it need to use CLI to setup the traffic shaping in a policy, then, I would like to know what is the command use to setup.

Thanks in advance.

Leo

Toshi_Esumi

SuperUser

If you buy a new one, you should get support even if you don't buy UTM stuff. Then you can open a ticket to get help from TAC how to set up traffich shaping. You can use GUI to configure Traffic Shaping Policy TAC would tell you that.
