How do I know if this image refers to a ADOM mode normal or workflow mode?

  • November 16, 2024
  • 3 replies
  • 3004 views

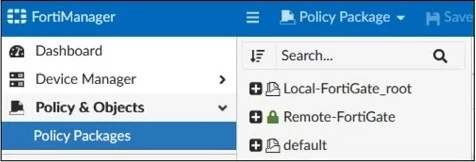

How do I know if this image refers to a ADOM mode normal or workflow mode?







3 replies

dingjerry_FTNT
Staff
Staff
November 17, 2024

Hi @lincoln29 ,



I am not sure what your FMG version is.  My FMG is running 7.4.2.  In FMG GUI, switch to System Settings --> Advanced, then you can check the ADOM mode and Workspace mode settings there.  See screenshot.

lincoln29
lincoln29Author
Explorer
November 17, 2024

I thought that in this image it would be possible to know if the FMG 7.4 is configured as a WF or WS.

dingjerry_FTNT
Staff
Staff
November 17, 2024

There is a Save button on the top-right corner of the picture. So it can only confirm your FMG has either WF or WS, but not sure which one.

Martinjoe
New Member
November 19, 2024

but actually m FMG is running 7.4.2. In FMG GUI, switch to System Settings --> Advanced, then you can check the ADOM mode and Workspace mode settings there.

BTW if you need backend and design flow similar to blessly.com, you must consider a professional & expert

mrafat
Staff
Staff
November 22, 2024

This is Workspace mode and here is why :
1. In the image you have shared, it shows one of the policy package locked which is an option to be enabled in workspace mode 

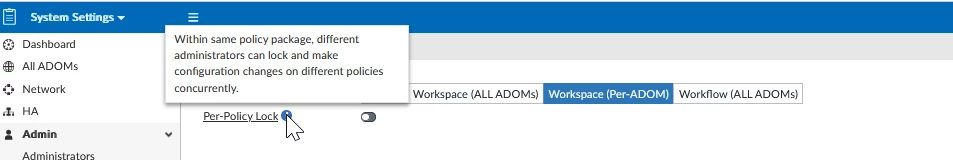

per policy lock.png

2. Second, In workflow there is a bottom to create the session through which you will do any changes so that someone can approve this change , and this bottom doesn't exist in your screenshot
please check below how it looks in workflow
 
