Question

Help with WiFi SSID DNS issue "DNS-no-resp"

  • May 24, 2024
  • 2 replies
  • 3557 views

Hey all, hoping someone will be able to help with this one as I am stuck and spent ages looking around online for help and not getting anywhere.

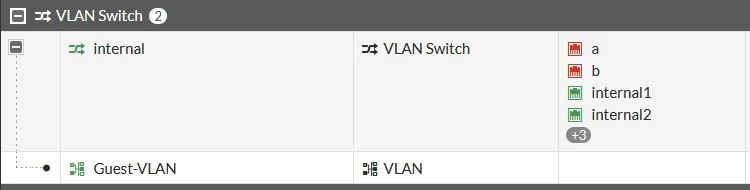

So we have a small remote office with a single FortiGate 60F and a single 231F AP, its running with all its ports in a VLAN software switch and internal port 1 goes through a POE injector to the AP, simple as it gets.


The internal LAN is set as VLAN 0 and we run a Enterprise SSID with Radius etc which is all working fine (Bridge mode), now we wanted to add a Guest SSID so first of all created a Guest VLAN with VLAN ID 25 as below, its set to run a DHCP server and just use 1.1.1.1 and 8.8.8.8 for its DNS (Not using the system DNS)





New Guest SSID created (also bridge mode), VLAN 25 is specified in its config and a Firewall rule created to allow it out from Source 'Guest-VLAN' to Destination 'All'
Now when someone connects to this guest SSID we can see its dishing out an IP address and can see some traffic activity from users phone but users get the error "The Wi-Fi network “Guest” does not appear to be connected to the internet”.

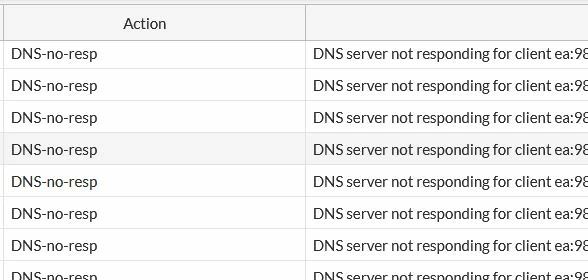

Looking at the logs we keep seeing the below about DNS but no end of searching brings back anything relevant, cant see anything obvious I am missing, asking a user to check the phone we can see all correct IP info is coming from DHCP and setting the DNS on phone as 1.1.1.1 and 8.8.8.8 but they cant resolve anything... Help!




2 replies

ozkanaltas
Valued Contributor III
May 24, 2024

Hello @InfraSec0 ,



Can you check DTLS settings in the Network-> DNS settings menu? If TLS is enabled on that menu. Can you try to disable that and enable DNS/53?



https://community.fortinet.com/t5/FortiGate/Technical-Tip-DNS-stops-working-when-using-custom-DNS/ta-p/219668

InfraSec0
InfraSec0Author
New Member
May 24, 2024

Thanks for the reply @ozkanaltas we are using custom internal DNS as below:


ozkanaltas
Valued Contributor III
May 24, 2024

Hello @InfraSec0 ,



Do you apply any security policy for that traffic?



Also, can you run these commands and share the output with us? While running these commands you need to try to access the internet from the problematic client.



Also, can you check your client? Have they got the correct DNS settings from DHCP?





diagnose debug disable diagnose debug flow trace stop diagnose debug flow filter clear diagnose debug reset diagnose debug flow filter saddr <YOUR_CLIENT_IP_HERE> diagnose debug flow trace start 100 diagnose debug enable





Brunn3r
Explorer II
May 27, 2024

Can you post the firewall-rule?
Does it contain DNS as service?

From the Wifi-Client; can you ping the Interface-IP Address of VLAN 25 (Ping must be enabled on the Interface as administrative access)?
Can you ping 1.1.1.1?
