Help with vdom and tacacs...

  • August 14, 2022
  • 3 replies
  • 4416 views

Hello,



we use Clearpass tacacs with FortiGate 6.4.9 with no problem, now I want to configure a user to see only one vdom in FortiGate  I try to use "set radius-vdom-override enable" but no luck,







config system admin edit "t1_admin" set remote-auth enable set accprofile "noaccess" set vdom "root" "vdom.01" "vdom.02" set wildcard enable set remote-group "TACACS1" set accprofile-override enable set radius-vdom-override enable next end







my questions:

  1. can I use "set radius-vdom-override tacacs" with Tacacs or not?
  2.  or need to configure another user with set wildcard enable if possible ?

 Thank you



Best answer by pminarik

"radius-vdom-override" has "radius" in its name because historically TACACS+-based login has not supported dynamic VDOM assignment.



This has however just changed in firmware 7.2.1, where the new feature logged under ID 803326 has implemented this.



ref: https://docs.fortinet.com/document/fortigate/7.2.1/fortios-release-notes/743723/new-features-or-enhancements

Vendor-Specific Attributes (VSAs) can be used with TACACS authentication and authorization in wildcard system administrator access to FortiGates from browsers and SSH. The new VSAs allows the FortiGate to perform group matching, and overwrite VDOM settings under system admin.



The expected attribute name is simply "vdom" .



Keep in mind that this will not work in any other version.

3 replies

abelio
SuperUser
abelio
SuperUser
August 14, 2022

Hi Mohammad,

Check whether your radius server is returning a VDOM attribute (if not, nothing will happen)



Check also if your radius dictionary file includes these 2 attributes.
(12356 is Fortinet RADIUS Vendor ID)



VENDORATTR 12356 Fortinet-Vdom-Name 3 string
VENDORATTR 12356 Fortinet-Access-Profile 6 string

Finally you have to associate the user with its desired vdom in your radius server user file.

i.e. using your definitions:


adminroot             Password = "<pass>",
                               User-Service-Type = Login-User,
                               Fortinet-Vdom-Name = root,
                               Fortinet-Access-Profile = read_only,



adminvdom01      Password = "<pass>",
                               User-Service-Type = Login-User,
                                Fortinet-Vdom-Name = vdom.01,
                               Fortinet-Access-Profile = read_only,



adminvdom02            Password = "<pass>",
                                     User-Service-Type = Login-User,
                                     Fortinet-Vdom-Name = vdom.02,
                                     Fortinet-Access-Profile = read_only,



Mohammad
MohammadAuthor
Visitor III
August 16, 2022

Hello Abelio,

I use tacacs+, not a radius, do you know the attributes for vdom in TACACS+ Services Dictionaries?

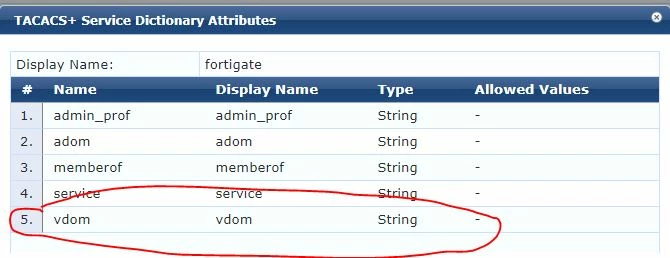

I try put vdom like the photo:








but no luck.



thank you

Markus_M
Staff & Editor
Markus_M
Staff & Editor
August 17, 2022

Hi Mohammad,



based on this:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Access-using-TACACS-authentication-with-admin/ta-p/196361

I would guess the values are simply what the FortiGate config has to offer.

vdom = vdom-name, e.g. root. Rest as per article.



Best regards,



Markus

pminarik
Staff
pminarikAnswer
Staff
August 17, 2022

"radius-vdom-override" has "radius" in its name because historically TACACS+-based login has not supported dynamic VDOM assignment.



This has however just changed in firmware 7.2.1, where the new feature logged under ID 803326 has implemented this.



ref: https://docs.fortinet.com/document/fortigate/7.2.1/fortios-release-notes/743723/new-features-or-enhancements

Vendor-Specific Attributes (VSAs) can be used with TACACS authentication and authorization in wildcard system administrator access to FortiGates from browsers and SSH. The new VSAs allows the FortiGate to perform group matching, and overwrite VDOM settings under system admin.



The expected attribute name is simply "vdom" .



Keep in mind that this will not work in any other version.

Mohammad
MohammadAuthor
Visitor III
August 17, 2022

Hello pminarik,

Thank you too much for your help and the information.
