Question

Hairpin Policy Not Working

  • February 25, 2022
  • 4 replies
  • 3907 views

Hi all,

I've had a look through the previous posts but can only find how to set this up and not much on troubleshooting it when it doesn't work....so

Got a 100E that has a main LAN ip of 192.168.1.20 and we've added a secondary ip of 192.168.100.20 on the same interface. From the CLI on the same router i can ping both 1.20 and 100.20 and also can ping a device on the 100.20 network (that is on 192.168.100.60). Now we have another router at another branch and i can ping through the VPN and get a response from both 1.20 AND 100.20 from the other branch but i cannot get a response from 100.60 ?

I have added a hairpin policy to allow everything from the LAN interface to the LAN interface (where this secondary IP is added) but i still cannot get either a ping or get onto the web page of the device on 192.168.100.60 ?

I have tried to do this from a PC also on the same subnet as the main IP on the router (192.168.1.0) and i cannot get a ping to that so it looks like data is not passing from the secondary ip to the primary LAN ?

Any ideas would be great.

Thanks



4 replies

AlexC-FTNT
Staff
AlexC-FTNT
Staff
February 26, 2022

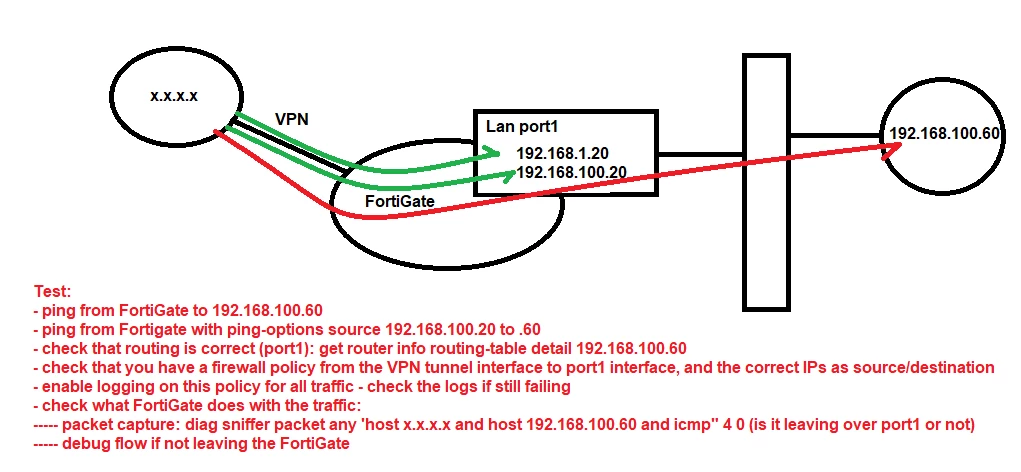

Please correct the above diagram if wrong.

"Hairpin" usually refers to a NAT (and a VIP involved).
There is no NAT needed in your policy and no VIP mentioned in your description

ForgetItNet
ForgetItNetAuthor
Explorer II
February 28, 2022

Thanks Alex, that diagram is correct and there's no NAT enabled on the policy but not sure what you mean by VIP on this ? I know what a VIP is but not sure where it's relevant on this scenario ? I'm hoping this is what I'm missing and I've just mis-understood how to set this up ? I've tried a ping to 100.60 from the 1.20 interface and that doesn't work so obviously there is no traffic going between the IP's on the same interface.

ForgetItNet
ForgetItNetAuthor
Explorer II
February 28, 2022

Done a packet capture as well from 1.20 to 100.60 and it looks like ping is getting to 1.20 but no reply coming back ? However i can ping 100.60 just from the CLI (without specifying a source and it does reply)

AlexC-FTNT
Staff
AlexC-FTNT
Staff
February 28, 2022

The image has quite some troubleshooting steps.

Please follow that and attach some relevant output if you need, or open a support case. The verbal confirmation of these tests that you performed is not sufficient to guess the problem. I'm quite sure that you missed a policy lan>lan or VPN>lan or lan>VPN... but who knows, maybe there is more - I also don't have a configuration file to verify, therefore guessing is not very accurate :)

(if there is no VIP, then there's something crossed off the list of possible issues)
