Question

HA configuration between Fortigate A-P and upstream swithes (VLAG)

  • June 9, 2022
  • 1 reply
  • 1428 views

Hi all,

It is my second post in a community. Hope someone can help me.

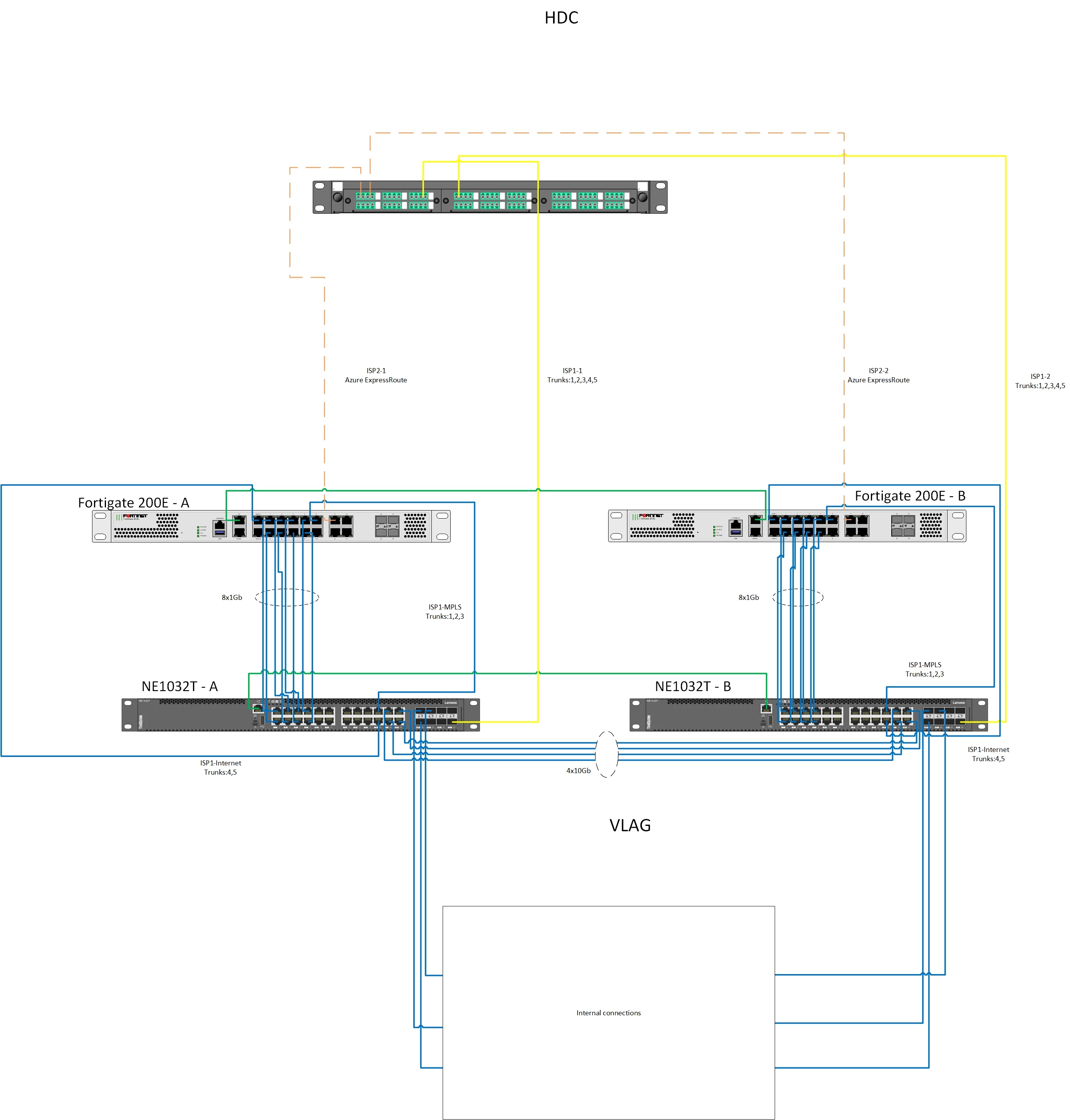

We have 2xFortigate 200E as A-P cluster, some vlans, SSL VPN, IPSec for some clients and Azure, static route. Active and passive nodes are connected to the same ISP-1 for HA. Scheme is here:

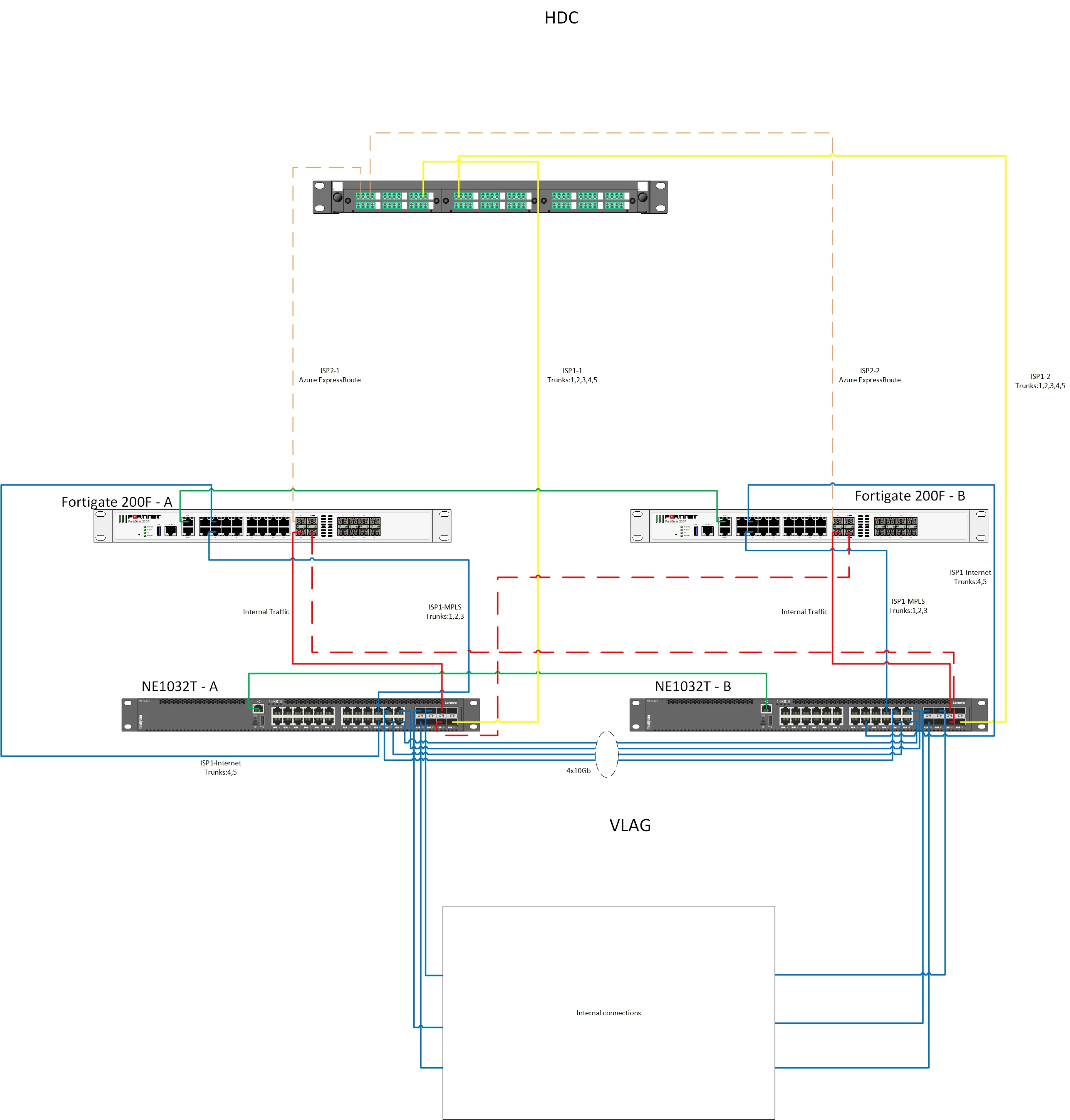

I'd like to to full mesh configuration between Fortigate A-P cluster and 2x upstream switches NE1032T. Going to change Fortigate 200E to Fortigate 200F to get more 10G ports and replace LAG 8x1G to 10G + add additional 10G link from NE1032T-A to Fortigate-B and NE1032T-B to Fortigate-A (all connections are red lines: solid and dotted).


Question - what configuration should I implement on Fortigate and upstream switches? Does only LAG configuration will be enough?



TIA,

Viktor

1 reply

bpozdena_FTNT
Staff
bpozdena_FTNT
Staff
June 10, 2022

Hi Victor,



Yes, it is enough. If your switches are configured with vLAG, you will just configure standard LAG port on Fortigate.



HTH,

Boris

viktor_k
viktor_kAuthor
New Member
June 11, 2022

@bpozdena_FTNT many thanks for reply. Not sure what to configure on ports of switches... Current configuration is set as LAG only for connection to Fortigate. Should I add lacpkeys and adminkeys?



Viktor
