December 18, 2019
Question

HA A-A link not failover

  • December 18, 2019
  • 1 reply
  • 5171 views

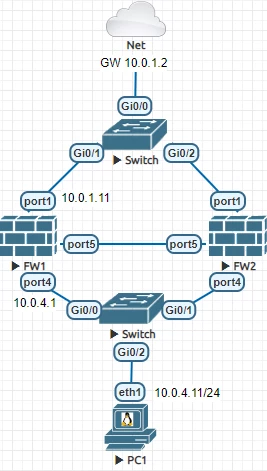

  FW1 and FW2 HA A-A   SW INFO: -VM 6.2.2 Trial License on Eve-NG Community Nov 2019   FW1 & FW2: Because HA then FW2 Slave has the same ip config as FW1 Master config system interface     edit "port1"         set vdom "root"         set ip 10.0.1.11 255.255.255.0         set allowaccess ping https ssh snmp http telnet fgfm radius-acct probe-response capwap         set type physical         set description "WAN1"         set snmp-index 1     next     edit "port2"         set vdom "root"         set ip 10.0.2.2 255.255.255.0         set allowaccess ping         set type physical         set description "WAN2"         set snmp-index 2     next     edit "port3"         set vdom "root"         set ip 10.0.3.1 255.255.255.0         set allowaccess ping         set type physical         set description "DMZ"         set snmp-index 3     next     edit "port4"         set vdom "root"         set ip 10.0.4.1 255.255.255.0         set allowaccess ping ssh http fgfm         set type physical         set description "LAN1"         set snmp-index 4     next     edit "port5"         set type physical         set description "HEARTBEAT"         set snmp-index 5 end config system ha     set group-name "HA"     set mode a-a     set password password     set hbdev "port5" 0     set session-pickup enable     set override disable     set monitor "port1"     set load-balance-all enable end

config system link-monitor edit "1" set srcintf "port1" set server "8.8.8.8" set gateway-ip 10.0.1.2 set failtime 2 next end

  FW1 # get system ha status HA Health Status: OK Model: FortiGate-VM64-KVM Mode: HA A-A Master: FW1             , FGVMEVOZCSOR5P1B, HA cluster index = 0 Slave : FW2             , FGVMEVNROOBQ8U57, HA cluster index = 1   PROBLEM1: -link from FW1 port1 to Switch G0/1 shutdown RESULT:  ping from PC1 to 8.8.8.8 down master not failover from FW1   PROBLEM2: -link from FW1 port to Switch G0/1 up -FW1 port1 status down RESULT: ping from PC1 to 8.8.8.8 down master not failover from FW1   QUESTIONS:

[ol]
  • what do I miss there[/ol]

    UPDATE1: -if link from master to internet down, all traffic from both FW1 and FW2 down it seems link or port monitoring not working at all

      • 1 reply

      nbctcp
      nbctcpAuthor
      New Member
      January 8, 2020

      I make it working after change a bit This part is important set pingserver-flip-timeout 6

      config system ha set group-id 10 set group-name HA set mode a-a set password admin set hbdev port6 0 set session-pickup enable set link-failed-signal enable set override disable set monitor port1 set pingserver-monitor-interface port1 set pingserver-flip-timeout 6 set load-balance-all enable end config system link-monitor edit “1" set srcintf “port1" set server “8.8.8.8" next end

      ede_pfau
      SuperUser
      ede_pfau
      SuperUser
      January 8, 2020

      I think this

      set pingserver-monitor-interface port1
      is the important setting. You've set up a ping-server but in the default config the server port is not set. "monitor-interface" only checks for link status which (in a switch environment) usually is insufficient for monitoring.



      set pingserver-flip-timeout 6
      prevents the cluster from flapping, i.e., failing over too quickly. It improves cluster stability.

      nbctcp
      nbctcpAuthor
      New Member
      January 10, 2020

      Hi ede,

      I am not clear on "default config the server port is not set"

      My goal only check whether the link to ISP is on or off

      If off then failover I didn't set monitoring toward internal.



      I set "pingserver-flip-timeout 6" because sometime if ISP link down, it didn't failover.

      That's why I set to 6 minutes. by default is 2 hours.

      6 minutes is the smallest possible



      ede_pfau wrote:

      I think this

      set pingserver-monitor-interface port1
      is the important setting. You've set up a ping-server but in the default config the server port is not set. "monitor-interface" only checks for link status which (in a switch environment) usually is insufficient for monitoring.



      set pingserver-flip-timeout 6
      prevents the cluster from flapping, i.e., failing over too quickly. It improves cluster stability.

      pingserver-flip-timeout 6
