fully-meshed VPN with Provisioning templates on FortiManager for FortiGates with multiple ISP lines

Kindly refer to the doc:

https://community.fortinet.com/t5/FortiManager/Technical-Tip-How-to-create-a-Full-Mesh-IPsec-VPN-with-multiple/ta-p/195820

O I see.

I believe there is no restriction, you should be able to do it but would require some manual work.

I could not find any specific doc for this setup.

But, have separate IPSec templates for HUB1, HUB2 and one template SPOKES.

Use metavariables for interfaces/subnets and create multiple tunnels to each site.

If you want ADVPN, then on Spoke template enable the autodiscovery receive and for Hubs autodiscovery sender.

Hello,

I found a solution to do this, but I'm not sure if it's the recommended approach from Fortinet.

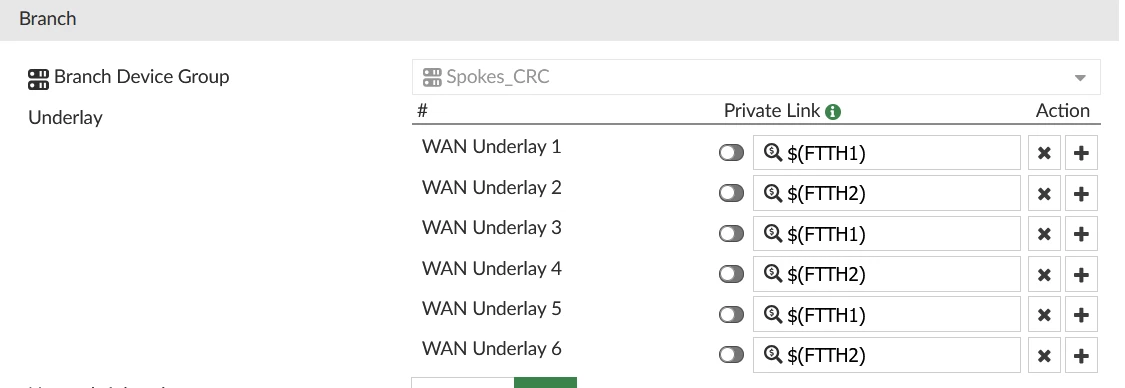

In my SD-WAN Overlay setup, under the 'SD-WAN Overlay Template - Network Configuration (3/5)' section, I added multiple WAN Underlays for the Branch.

In this example, I have 3 ISPs for Hub 1, 3 ISPs for Hub 2, and 2 ISPs for Spokes.

I hope this can help someone who is searching for a solution to this setup. I would also appreciate it if someone has a recommended solution to share it.

Best regards
