FortiWLM 8.6-4 on Proxmox 7.2-3

  • October 15, 2022
  • 1 reply
  • 2223 views

Hello all,



I've been trying to config FortiWLM 8.6-4 as a VM in Proxmox 7.2-3 with very different settings. Official FortiWLM Proxmox guide (Fortinet's own guide) isn't available, I've been composing from different sources my own and would love to share also, if I succeeded deploying this in Proxmox.



Basics go fine, OVA, VMDK etc images are nicely imported eg. with a qm importdisk 212 forti-wlm-8.6-4build-6-x86_64-disk1.vmdk local-zfs --format qcow2 command to VM id 212 in .qcow2 format and then added as a SCSI or IDE disk.

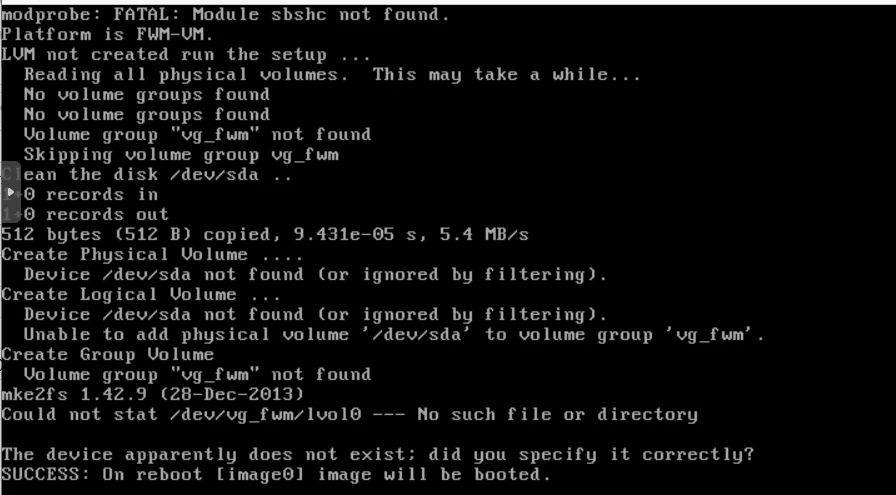

Every time so far, FortiWLM VM ends to a boot loop, last lines before a new reboot in the picture below

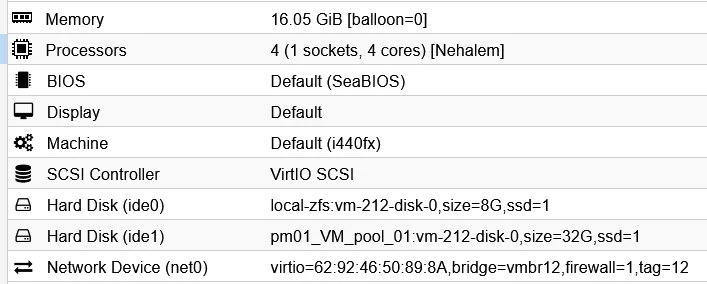

One of my numerous unsuccesful settings below






Would you have any ideas what to try next? Maybe installing an Ubuntu 16.04 KVM as VM in proxmox and deploy there :)



Br Matti



1 reply

Contributor
October 17, 2022
Hello @Jack00,

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Thanks,
Jack00
Jack00Author
New Member
October 18, 2022

Update, FortiWLM's virtual image does the same in Virtualbox or Hyper-V as well. Ends to the very same boot loop.
