fortiwifi 40F/ how to delete a port form the hardware switch LAN to set as a solo software switchLAN

Forum|Forum|1 year ago
January 31, 2025
30 replies
5408 views

Hi,

my lan hardware switch interface has 3 ports lan1,lan2,lan3.-> lan

these 3 ports are part of the main "internal lan"

how do i take lan1 out of the lan hardware switch and create a second hardware switch lets say lan_2 containing only the port lan1?

in this fashion i would then add lan_2 to a new internal interface lets say internal_2 ?

how can all of this be done? it seems impossible to find where to topke out lan1 from the hardware switch.

any help would be appreciated.

ciao,

Antonio

FortiGate

funkylicious

SuperUser

Hi,

In order to remove lan1 from the hardware switch, you would need to edit the interface and just click X next to the interface then click OK to save, as shown here, https://docs.fortinet.com/document/fortigate/7.6.1/administration-guide/100999/hardware-switch

"jack of all trades, master of none"

antoniocerasuoloAuthor

Explorer

it seems impossible because in the internal lan the members are :

-lan ( hardware lan)

-wifi

there is no interface that is a hardware lan that can be modified, I don't understand why?

is this clear?

can you help?

ciao,

Antonio

funkylicious

SuperUser

sounds kinda fishy.

can you share a screenshot of the interfaces on the GUI ?

"jack of all trades, master of none"

antoniocerasuoloAuthor

Explorer

here are a couple of logs from the file:

maybe it's legitimate blocking but seems to be too much..

**********************************************************************************************************

date=2025-01-31 time=17:29:09 id=7466117546744217622 itime="2025-01-31 17:29:14" euid=3 epid=1029 dsteuid=3 dstepid=101 logflag=67 logver=702101706 type="traffic" subtype="forward" level="notice" action="accept" utmaction="block" policyid=2 sessionid=592454 srcip=10.8.8.13 dstip=96.45.46.46 transip=192.168.1.245 srcport=56985 dstport=53 transport=56985 trandisp="snat" duration=180 proto=17 sentbyte=75 rcvdbyte=103 sentpkt=1 rcvdpkt=1 logid=0000000013 srcname="ROG_ANTONIO" dstname="dns2.fortiguard.net" service="DNS" app="DNS" appcat="Network.Service" srcintfrole="lan" dstintfrole="wan" srcserver=0 appid=16195 apprisk="elevated" policytype="policy" channel=40 shapingpolicyid=2 eventtime=1738340948927865830 shaperdropsentbyte=0 shaperdroprcvdbyte=0 countdns=1 srcuuid="1b02621a-95ee-51ef-5f4f-3e53698fcedb" dstuuid="1b02621a-95ee-51ef-5f4f-3e53698fcedb" poluuid="1d894a6c-95ee-51ef-5b0b-7ba14d488b60" srcmac="f4:c8:8a:6c:fd:59" mastersrcmac="f4:c8:8a:6c:fd:59" srcswversion="10" osname="Windows" srccountry="Reserved" dstcountry="United States" srcssid="guest_wifi_fortinet" srcintf="guestwifi" dstintf="wan" applist="default" radioband="802.11ac,n-only" policyname="guest_wifi_policy" ap="FWF40F-WIFI0" apsn="FWF40FTK23006541" shapersentname="medium-priority" shaperrcvdname="medium-priority" hostname="d1zf2p7ylo2ros.cloudfront.net" catdesc="Phishing" tz="+0100" srccity="Reserved" signal=-62 snr=50 shapingpolicyname="dialy_traffic" srcgeoid=1000000000 dstgeoid=6252001 devid="FWF40FTK23006541" vd="root" utmref="BAQACAAIAAABvHAAAAaP5nGej-ZxnbxkAAAGj-Zxno_mcZw==" dtime="2025-01-31 17:29:09" itime_t=1738340954 devname="FWF40FTK23006541" srcuuid_name=all dstuuid_name=all
date=2025-01-31 time=17:29:08 id=7466117546744217620 itime="2025-01-31 17:29:14" euid=3 epid=1029 dsteuid=3 dstepid=101 logflag=67 logver=702101706 type="traffic" subtype="forward" level="notice" action="accept" utmaction="block" policyid=2 sessionid=592451 srcip=10.8.8.13 dstip=96.45.46.46 transip=192.168.1.245 srcport=61957 dstport=53 transport=61957 trandisp="snat" duration=180 proto=17 sentbyte=75 rcvdbyte=91 sentpkt=1 rcvdpkt=1 logid=0000000013 srcname="ROG_ANTONIO" dstname="dns2.fortiguard.net" service="DNS" app="DNS" appcat="Network.Service" srcintfrole="lan" dstintfrole="wan" srcserver=0 appid=16195 apprisk="elevated" policytype="policy" channel=40 shapingpolicyid=2 eventtime=1738340948917871790 shaperdropsentbyte=0 shaperdroprcvdbyte=0 countdns=1 srcuuid="1b02621a-95ee-51ef-5f4f-3e53698fcedb" dstuuid="1b02621a-95ee-51ef-5f4f-3e53698fcedb" poluuid="1d894a6c-95ee-51ef-5b0b-7ba14d488b60" srcmac="f4:c8:8a:6c:fd:59" mastersrcmac="f4:c8:8a:6c:fd:59" srcswversion="10" osname="Windows" srccountry="Reserved" dstcountry="United States" srcssid="guest_wifi_fortinet" srcintf="guestwifi" dstintf="wan" applist="default" radioband="802.11ac,n-only" policyname="guest_wifi_policy" ap="FWF40F-WIFI0" apsn="FWF40FTK23006541" shapersentname="medium-priority" shaperrcvdname="medium-priority" hostname="d1zf2p7ylo2ros.cloudfront.net" catdesc="Phishing" tz="+0100" srccity="Reserved" signal=-62 snr=50 shapingpolicyname="dialy_traffic" srcgeoid=1000000000 dstgeoid=6252001 devid="FWF40FTK23006541" vd="root" utmref="BAQACAAIAAABvFgAAAaP5nGej-ZxnbxQAAAGj-Zxno_mcZw==" dtime="2025-01-31 17:29:08" itime_t=1738340954 devname="FWF40FTK23006541" srcuuid_name=all dstuuid_name=all

dingjerry_FTNT

Staff

Hi @antoniocerasuolo ,

Both logs are for the following info:

type="traffic" subtype="forward" level="notice" action="accept" utmaction="block" policyid=2 , policyname="guest_wifi_policy", dstname="dns2.fortiguard.net"

Apparently, you have only one firewall policy for Guest WiFi traffic and you applied a lot of UTM, including Application List, Traffic Shapers, and so on. And one of the UTM blocked this DNS traffic to "dns2.fortiguard.net".

So question:

Do you really need to apply UTM for DNS traffic from the Guest WiFi traffic?

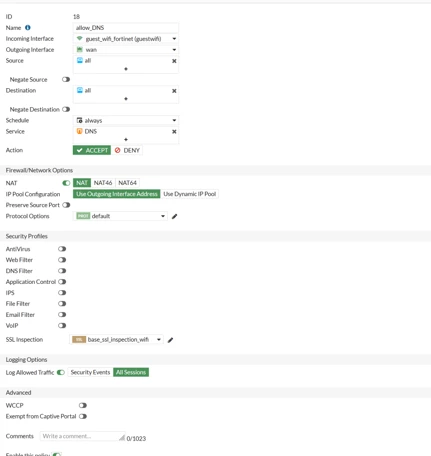

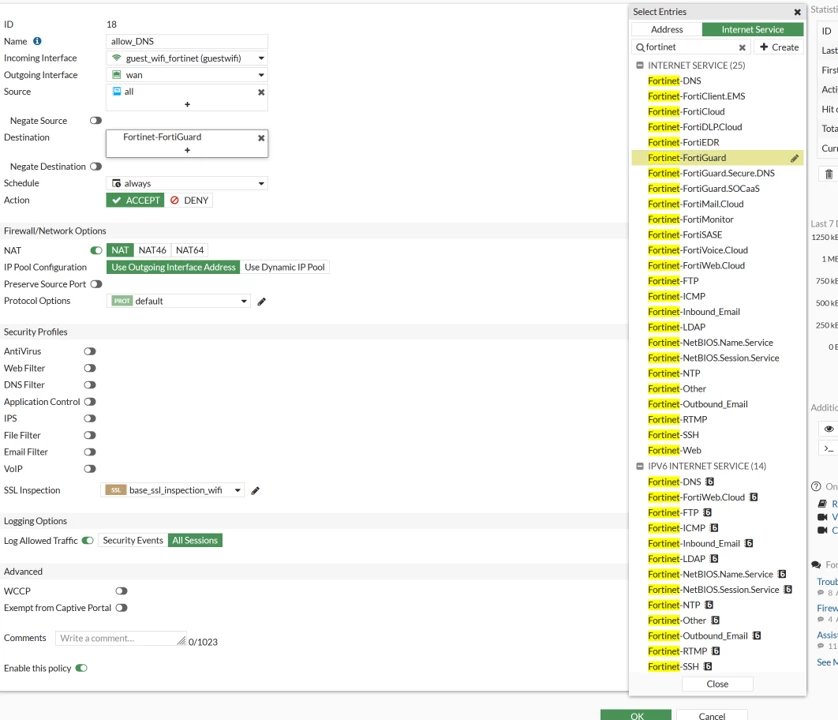

If no, you may create a new firewall policy above policy #2 to allow DNS traffic from Guest WiFi without any UTM applied.
