FortiWeb 600F – Rate limiting by custom header (x-user-trace) on specific paths

Question

Hi everyone,I’m using **FortiWeb 600F (reverse proxy mode)** and need to implement **request rate limiting based on a custom HTTP header**, not on the client IP.Limit requests to specific endpoints:/order/buy/order/sellEach request includes a header `x-user-trace`, which identifies the user.I want FortiWeb to **allow only one request per 300 milliseconds per unique `x-user-trace` value.**If the same user (same header value) sends another request within 300 ms, it should be **blocked or responded with HTTP 429 (Too Many Requests).**if request.path in ["/order/buy", "/order/sell"]:if "x-user-trace" in request.headers:key = request.headers["x-user-trace"]allow 1 request / 300 ms per keyelse:block or respond with 4291. Can FortiWeb natively perform rate limiting using a **custom header** (like `x-user-trace`) instead of the client IP?* I know that **DoS Protection**, **Bot Mitigation**, and **Rate Limiting** features exist, but they appear to use **source IP** as the identifier.2. Is there any supported way to define a **custom key expression or variable** (e.g. using `x-user-trace` header) to group requests for rate limiting?3. If this is not possible through GUI or CLI configuration —* Is there a way to extend FortiWeb functionality by adding a **custom module, script, or plugin** (in Python, Lua, or another supported language)?* Can such logic be executed before forwarding the request to the backend?4. If scripting or plugins are not supported, what’s the **recommended FortiWeb-native workaround** for achieving this type of **per-user rate control** (based on request headers)?* Device: **Fortinet FortiWeb 600F*** Mode: Reverse Proxy* Version: *(available if needed)*Any official guidance, CLI/GUI example, or configuration reference would be really helpful.Thank you in advance!

rosatechnocrat · Answer

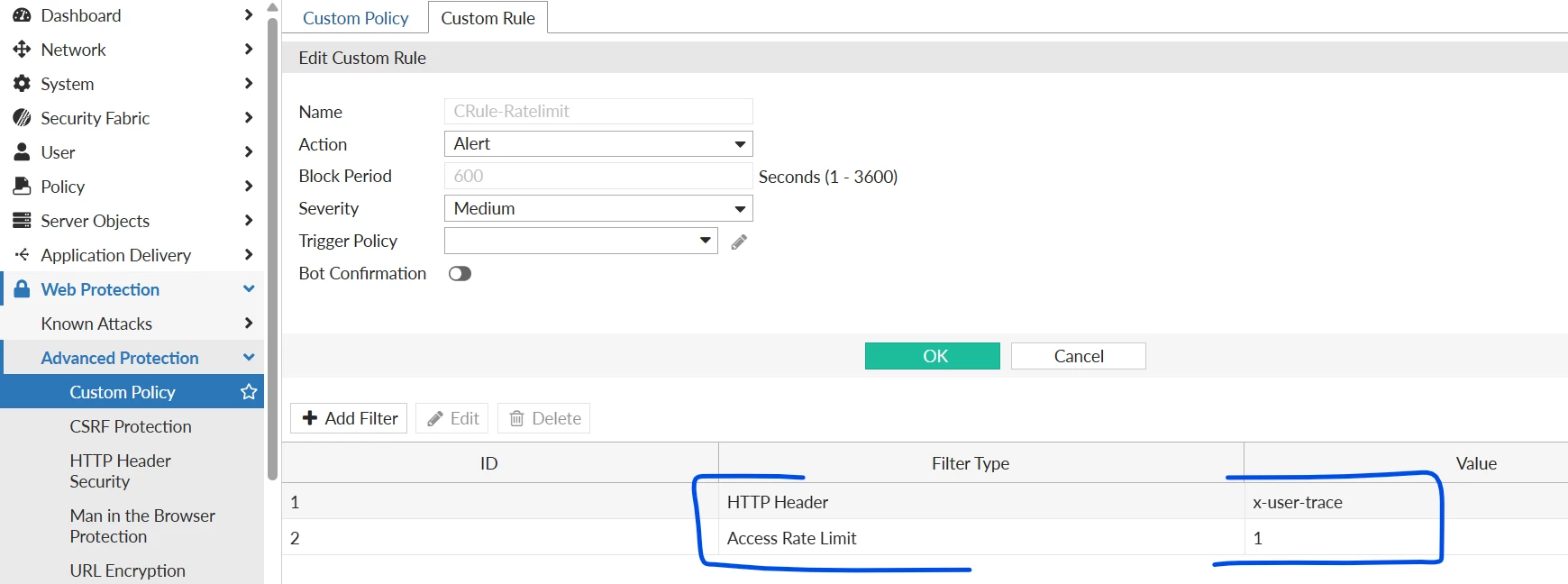

Hi @samansohani You can use a custom rule to rate-limit the traffic as per your requirement. You can include the URL path as well as part of conditions.  I have created a sample custom rule for your reference. However, please note that the limitation can only be set in seconds, not milliseconds — you can convert your requirement accordingly.You can proceed with the custom rule configuration. Hope this resolves your query.If it does, please mark this post as Solved. You can use custom rule. Hope this answers your solution. If yes, Please mark as solution.
