Fortiswitch show devices multiple times on single port

  • July 19, 2023
  • 3 replies
  • 4144 views

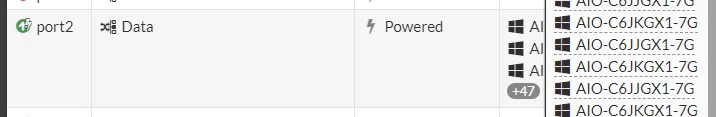

Screenshot 2023-07-19 113019.pngI have a 6 fortiswitches managed by fortilink that all show the same device info for each port multiple times. I have no idea what is causing this. This site is having multiple issues and my logs show nothing unusual. Any help or suggestions would be greatly appreciated.



Best answer by ebilcari

Since the switches are running in FortiLink mode maybe the command output from FGT will have a better view for this:

# diagnose switch-controller switch-info mac-table S108E... | grep port2

3 replies

knagaraju
Staff
knagaraju
Staff
July 20, 2023

Hello UnderscoresAndDashes,

I think this is a GUI issue,Could you please check the mac-address learned on the switch ports
diag switch mac-address list | grep portx

if the mac-address readings are correct, then this should be GUI issue I guess.

Regards
Nagaraju

ebilcari
Staff
ebilcariAnswer
Staff
July 20, 2023

Since the switches are running in FortiLink mode maybe the command output from FGT will have a better view for this:

# diagnose switch-controller switch-info mac-table S108E... | grep port2
Emirjon
UnderscoresAndDashes
UnderscoresAndDashesAuthor
Explorer
July 20, 2023

Thank you both. GUI issue seems to be the case.

plsikk
plsikk
Explorer
February 20, 2024

Hi, Same for me, already updated FG to 7.2.7 and switch to 7.2.4 and when I moved host between vlans on the same port then is showed twice in my case. but in cli is only one time.

I think we can report this as bug in GUI
