Fortiswitch is showing offline when fortigate connect via fortlink

  • March 10, 2022
  • 1 reply
  • 23104 views

Hello expert.



i Humbly request some guidance.



I have a fortigate 80F and tried connected  to manage the  fortiswitch 524D via fortilink

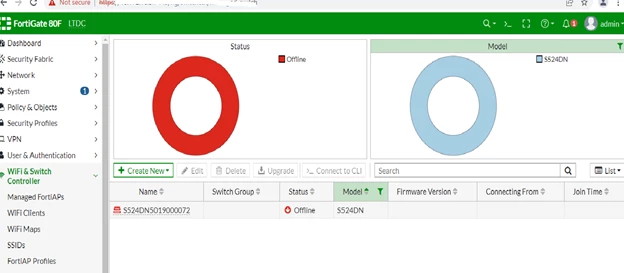

but the following error  "offline" (see screen shots)

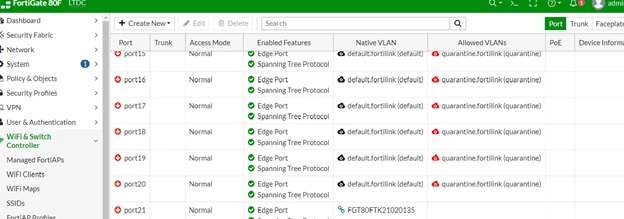

I have included a two screen shots for clarity.











Regards

Best answer by jomof

Hello Steffen,



I update the switch as per compatibility matrix and deauthorize with clean wipe the switch.

I repeated the authorization process again and it is still showing offline as per screen shot.

I refer to the kb article as per your post from  the debugging the following error was displayed



daemon: wait for event up to 0s:240000us
361s:891ms:985us flp_event_handler[734]:node: internal1 received event 110 state FL_STATE_READY switchname flags 0x124a
361s:892ms:55us flps_fsm_transition[148]:node: internal1(peer:S524DN5019000072 owner:S524DN5019000072) | state: 2 | event: 110



Unsure what is next step to resolve the offline issue.



Regards

1 reply

slautenschlager
Staff
slautenschlager
Staff
March 10, 2022

Dear Jomof,

it may be, that the FortiSwitch OS is not compatible to your actual FortiOS for the Fortilink - please refer to the attached compatibility matrix :
https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/d756e8a9-6d2d-11e9-81a4-00505692583a/FortiLinkCompatibility.pdf

In case these are compatible, please refer to the following KB article to check the connection between both devices.
https://community.fortinet.com/t5/FortiSwitch/Technical-Tip-No-authorisation-between-FortiSwitch-and-FortiGate/ta-p/194331


Best Steffen

jomof
jomofAuthorAnswer
New Member
March 10, 2022

Hello Steffen,



I update the switch as per compatibility matrix and deauthorize with clean wipe the switch.

I repeated the authorization process again and it is still showing offline as per screen shot.

I refer to the kb article as per your post from  the debugging the following error was displayed



daemon: wait for event up to 0s:240000us
361s:891ms:985us flp_event_handler[734]:node: internal1 received event 110 state FL_STATE_READY switchname flags 0x124a
361s:892ms:55us flps_fsm_transition[148]:node: internal1(peer:S524DN5019000072 owner:S524DN5019000072) | state: 2 | event: 110



Unsure what is next step to resolve the offline issue.



Regards

slautenschlager
Staff
slautenschlager
Staff
March 10, 2022

Dear Jomof,



it might need to check with configuration of Switch and Fortigate, so it might be better to raise a TAC case with the serial number of the Fortiswitch to check this a little bit deeper.



Best, Steffen
