Fortiswitch fs-148e-poe SFP or SFP+ Ports?

Forum|Forum|4 years ago
April 20, 2022
3 replies
4711 views

I am not sure if the SFP ports of the Fortiswitch fs-148e-poe work at 1000 or support 10Gb.

The datasheet indicates that the ports are GE but this other document indicates that they support SFP+ FG-TRAN-SFP+SR transceivers, which are 10GB transceivers.

Can someone confirm the maximum SFP port speed of the fs-148e-poe please?

Thanks a lot!

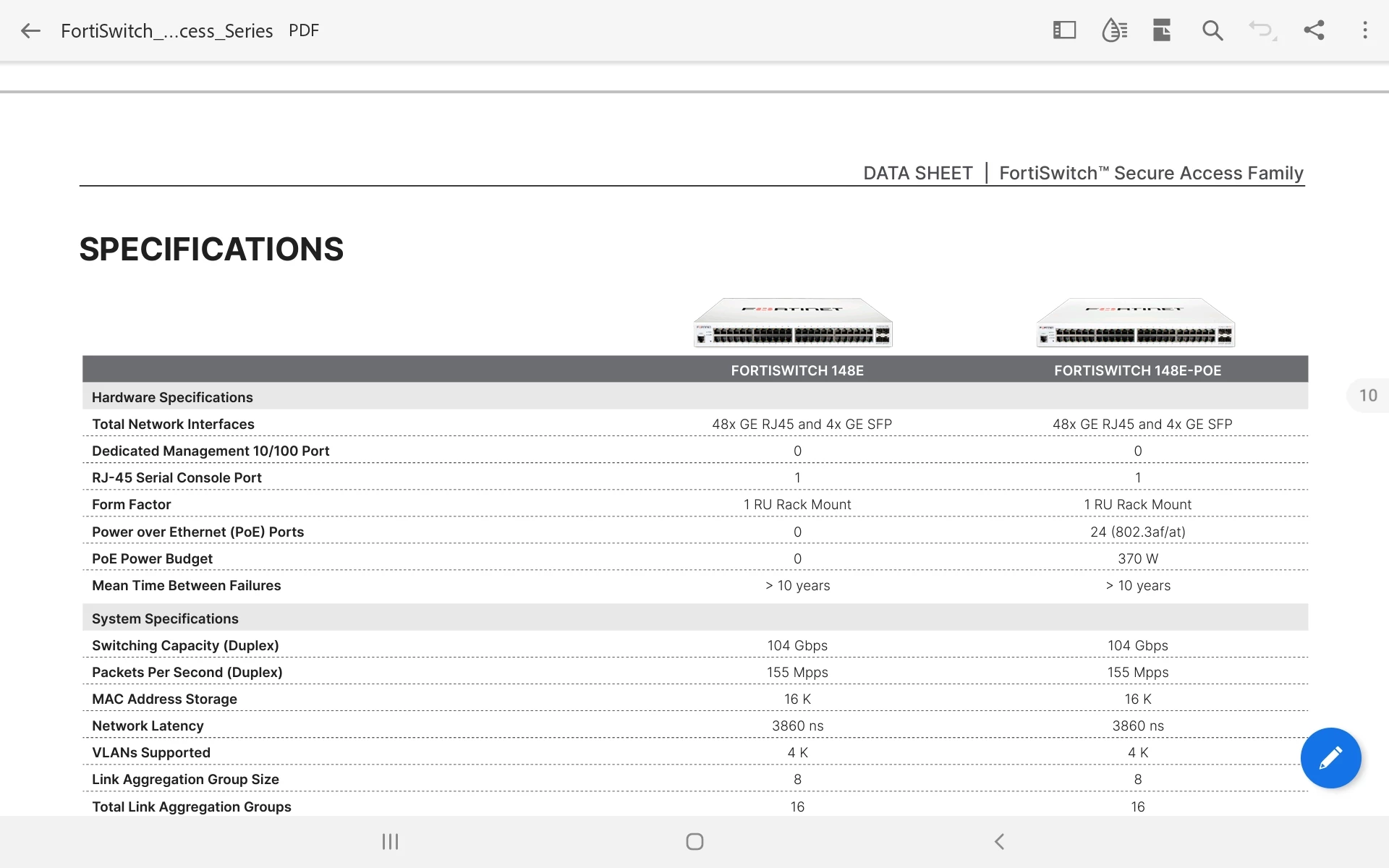

Screenshot_20220420-234106_Adobe Acrobat.jpg

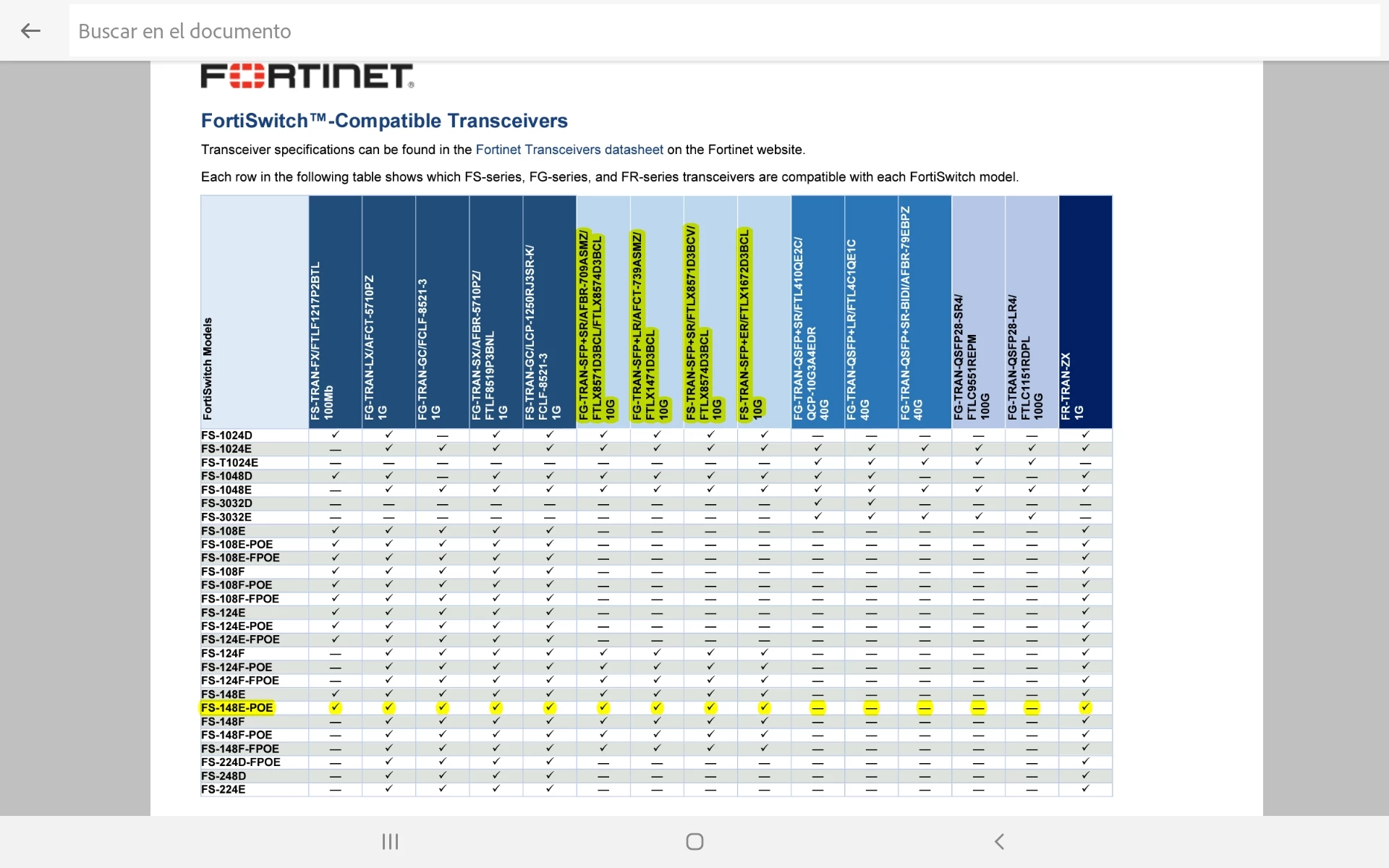

Screenshot_20220420-233530_Adobe Acrobat.jpg

FortiSwitch v6.4

Best answer by sachitdas_FTNT

Hi,

148E supports 1 Gig SFP. https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/4d0f9a01-6df1-11e9-81a4-00505692583a/FortiSwitch-148E-Series-QSG.pdf

The modules highlighted are SFP/SFP+.

Anthony_E

Staff

Hello fperez2022,

I have found this documentation:

https://www.fortinet.com/content/dam/fortinet/assets/data-sheets/FortiSwitch_Secure_Access_Series.pdf

Could you please tell me if it help?

If not, We will continue to look for a solution.

Regards,

Best Regards

fperez2022Author

New Member

Thank you. The screenshot in my post is from this document.

In that pdf it is indicated that the Fortiswitch fs-148e-poe has 1Gb ports but in this other Forti document it says that the fs-148e-poe supports 10Gb SFP+:

FortiSwitch™-Compatible Transceivers

Can someone who knows the equipment confirm to me if the ports of the fs-148e-poe are 1Gb or 10Gb?

Thanks in advance
