FortiSwitch Dynamic Port Policy – Dynamic VLAN not flushed immediately after legitimate device is disconnected

  • August 10, 2026
  • 3 replies
  • 105 views

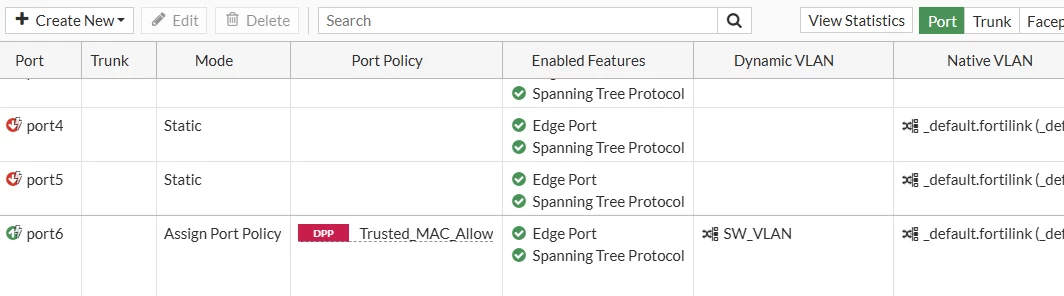

I have configured a FortiSwitch Dynamic Port Policy (DPP) to allow only 3 specific MAC addresses on a switch port. When one of the legitimate MAC addresses is connected, the DPP identifies the device and assigns the configured dynamic VLAN successfully.

However, I am experiencing an issue when the legitimate device is disconnected and an unauthorized device is connected to the same port shortly afterward.

My test scenario is:

  1. Connect legitimate device (Test_MAC1).
  2. DPP identifies Test_MAC1 and assigns the dynamic VLAN.
  3. Test_MAC1 is disconnected from the switch port.
  4. Within a few seconds, connect an unauthorized device (Test_MAC4).
  5. Test_MAC4 is not included in the DPP allowed MAC list.
  6. However, Test_MAC4 still receives an IP address from the previously assigned dynamic VLAN and can access the network.

It appears that the dynamic VLAN assignment/state is not being flushed immediately when the legitimate device is removed from the port.

Is there any way to Fix this?

Dynamic port policy Configuration

config switch-controller dynamic-port-policy
    edit "fortilink"
        set description ''
        set fortilink "fortilink"
    next
    edit "Trusted_MAC_Allow"
        set description ''
        set fortilink "fortilink"
        config policy
            edit "Test_MAC1"
                set description ''
                set status enable
                set category device
                set match-type dynamic
                set mac "F0:CC:FD:A6:A4:1B"
                set hw-vendor ''
                set type ''
                set family ''
                set host ''
                set lldp-profile ''
                set qos-policy ''
                set 802-1x ''
                set vlan-policy "SW_VLAN"
                set bounce-port-link enable
            next
            edit "Test_MAC2"
                set description ''
                set status enable
                set category device
                set match-type dynamic
                set mac "E0:17:F4:EE:36:17"
                set hw-vendor ''
                set type ''
                set family ''
                set host ''
                set lldp-profile ''
                set qos-policy ''
                set 802-1x ''
                set vlan-policy "SW_VLAN"
                set bounce-port-link enable
            next
            edit "Test_MAC3"
                set description ''
                set status enable
                set category device
                set match-type dynamic
                set mac "02:DE:AD:BE:EF:01"
                set hw-vendor ''
                set type ''
                set family ''
                set host ''
                set lldp-profile ''
                set qos-policy ''
                set 802-1x ''
                set vlan-policy "SW_VLAN"
                set bounce-port-link enable
            next
        end
    next
end

Fortilink configuration

config switch-controller fortilinksettings
    edit "fortilink"
        set fortilink "fortilink"
        set inactive-timer 15
        set link-down-flush enable
        set access-vlan-mode legacy
        config nac-ports
            set onboarding-vlan "onboarding"
            set lan-segment enabled
            set nac-lan-interface "nac_segment"
            set nac-segment-vlans "voice" "video"
        end
    next
end

3 replies

Stephen_G
Staff & Editor
Staff & Editor
August 13, 2026

Hi Udarasyapa,

Thank you for using our forums. We will seek to get you an answer or help.

In the meantime, if anyone else has any advice, please feel free to contribute.



Stephen_G - Fortinet Community Team
Stephen_G
Staff & Editor
Staff & Editor
August 17, 2026

Hi Udarasyapa,

We are still looking for an answer.

In the meantime: if anyone else has any advice, please feel free to continue.

Stephen_G - Fortinet Community Team
sachitdas_FTNT
Staff
Staff
August 17, 2026

Hi,

There is a new feature in FGT 7.6.3. “set match-remove link-down”.  Please try it but wait for couple of seconds before reconnecting the 2nd device.



Please refer below:

FortiGate config switch-controller dynamic-port-policy

FortiGate# set match-remove link-down    -> Available from FortiGate v7.6.3.

FortiGate# set match-type override   -> Available from FortiGate v7.4.4.

FortiGate# end
