Andrew_C
New Member
October 14, 2024
Question

FortiSwitch 108F Not Shown In Fortigate 60F

  • October 14, 2024
  • 1 reply
  • 773 views

Hi All,

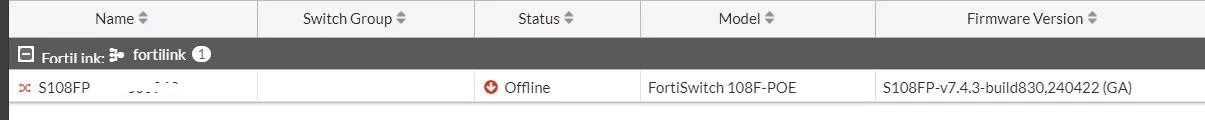

I have a fortiswitch 108F-POE, when I connect it to fortigate 60f (v7.4.3) using fortilink port, it will disappear, after disconnect it from fortigate, it will show up in managed page, I don't know why ? Thanks.


1 reply

Hatibi
Staff & Editor
Staff & Editor
October 14, 2024

What does the output of these commands show for the switch?



execute switch-controller get-conn-status <FortiSwitch SN>

execute switch-controller diagnose-connection <FortiSwitch SN>



Check the steps in this article:

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-Fix-FortiSwitch-showing-with-the-Offline/ta-p/197303
