FortiPAM : Disk Storage is less than VM size.

  • December 18, 2025
  • 1 reply
  • 200 views

Hello Community Contributor,

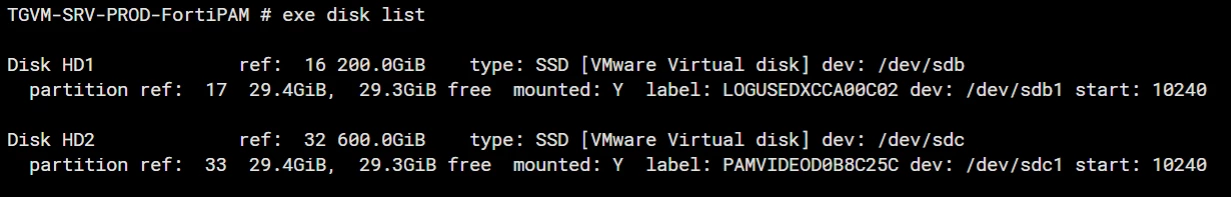

I am facing that FortiPAM disk size issue. I configured VM Size to 8GB for System, 200GB for Log and 600 GB for Video Record.  But if i run exe disk list, it is not like my configuration. It is less than VM Actual size. How can I resolve this?



FortiPAM sizeFortiPAM size



Thank you in advance.



Best Regards,

Henry

Best answer by ozkanaltas

Hello @henry63 ,



You can use the "execute disk format <disk_ref>" command to extend disk capacity.



This command extends your disk size and also formats your disk.



https://docs.fortinet.com/document/fortipam/1.8.0/administration-guide/729306/installation-on-vmware





1 reply

ozkanaltas
ozkanaltasAnswer
Valued Contributor III
December 18, 2025

Hello @henry63 ,



You can use the "execute disk format <disk_ref>" command to extend disk capacity.



This command extends your disk size and also formats your disk.



https://docs.fortinet.com/document/fortipam/1.8.0/administration-guide/729306/installation-on-vmware
