FortiOS shadow-ztna dns option missing from 7.2.5

  • August 8, 2023
  • 1 reply
  • 2428 views

I am trying to implement the shadow-ztna feature so I do not have to host dns entries for internal resources on the public internet.

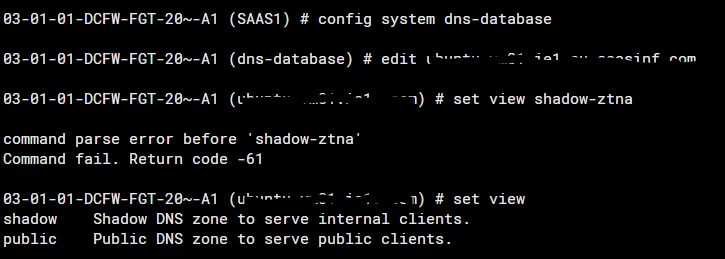

I am using the below 7.2.5 administration guide. It states that the command is hidden but on the 200F running 7.2.5 the command is missing entirely. Is there a specific feature that needs to be enabled or some pre-configuration so the command can be used.


 



https://docs.fortinet.com/document/fortigate/7.2.5/administration-guide/708477

Best answer by Anonymous_User

Hi @aguerriero



As per the given configuration example I have tested in the lab. Post enabling "add-vhost-domain-to-dnsdb " setting in the access-proxy for the ZTNA configured server able to see the entry in the database under shadow-ztna

e.g.:-

config firewall access-proxy

edit "ztna"
set vip "ztna"
set client-cert enable

set add-vhost-domain-to-dnsdb enable

next

end



show full-configuration system dns-database
config system dns-database
edit "test1.test.com"
set status enable
set domain "test1.test.com"
set type primary
set view shadow-ztna
set ttl 86400
set authoritative enable
unset forwarder
set source-ip 0.0.0.0
config dns-entry
edit 1
set status enable
set type A
set ttl 86400
set hostname "test1.test.com"
set ip 172.18.82.66
next
end
unset allow-transfer
set primary-name "test1.test.com"
set contact "fgt-ztna"
next



Please confirm the access-proxy and VIP configuration for the ZTNA server. And make sure to enable below setting

add-vhost/domain-to-dnsdb



Regards

Priyanka





- Have you found a solution? Then give your helper a "Kudos" and mark the solution.



1 reply

A
Anonymous_User
Contributor
August 8, 2023

Hi @aguerriero


ZTNA shadow cannot be configured or edited in the GUI or CLI.

For e.g.:-

config firewall access-proxy
edit <name>
set add-vhost/domain-to-dnsdb {enable | disable}
next
end
You need to enable "set add-vhost/domain-to-dnsdb " in the access-proxy setting all virtual hosts and TCP forwarding domains in the access proxy will be added under config system dns-database.


Please refer to the below guide for your reference:-

https://docs.fortinet.com/document/fortigate/7.2.0/new-features/708477/mapping-ztna-virtual-host-and-tcp-forwarding-domains-to-the-dns-database-7-2-1

Regards
Priyanka


- Have you found a solution? Then give your helper a "Kudos" and mark the solution.

aguerriero
aguerrieroAuthor
Explorer
August 8, 2023

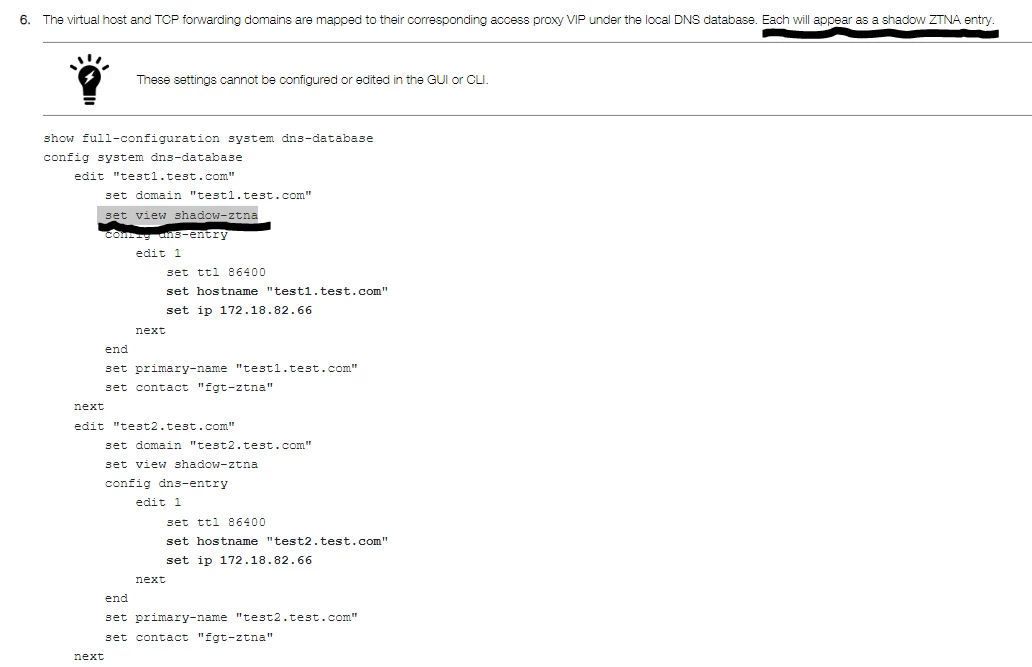

Yes, entries cannot be edited. But this line in the 7.2.5 administration guide says I can view shadow ztna entries.


 



A
Anonymous_UserAnswer
Contributor
August 8, 2023

Hi @aguerriero



As per the given configuration example I have tested in the lab. Post enabling "add-vhost-domain-to-dnsdb " setting in the access-proxy for the ZTNA configured server able to see the entry in the database under shadow-ztna

e.g.:-

config firewall access-proxy

edit "ztna"
set vip "ztna"
set client-cert enable

set add-vhost-domain-to-dnsdb enable

next

end



show full-configuration system dns-database
config system dns-database
edit "test1.test.com"
set status enable
set domain "test1.test.com"
set type primary
set view shadow-ztna
set ttl 86400
set authoritative enable
unset forwarder
set source-ip 0.0.0.0
config dns-entry
edit 1
set status enable
set type A
set ttl 86400
set hostname "test1.test.com"
set ip 172.18.82.66
next
end
unset allow-transfer
set primary-name "test1.test.com"
set contact "fgt-ztna"
next



Please confirm the access-proxy and VIP configuration for the ZTNA server. And make sure to enable below setting

add-vhost/domain-to-dnsdb



Regards

Priyanka





- Have you found a solution? Then give your helper a "Kudos" and mark the solution.
