FortiOS DNS Server not resolving domains

  • April 28, 2022
  • 1 reply
  • 20342 views

Hi

I'm running FortiOS v7.2.0,build1157,220331 on FortiGate-200E

I enabled DNS Database in Feature Visibility and configured it like this:



config system dns     set primary 1.1.1.1     set secondary 1.0.0.1     set protocol cleartext dot doh     set server-hostname "one.one.one.one"     set domain "test.local" end  config system dns-server     edit "port3"         set mode forward-only     next end  config system dns-database     edit "Test"         set domain "test.local"         set view public         set authoritative enable         config dns-entry             edit 1                 set hostname "@"                 set ip 192.168.5.15             next             edit 2                 set hostname "asd"                 set ip 192.168.5.15             next         end         set primary-name "dns1"         set contact "host@test.local"     next end



(The IP Address of port3 is 192.168.5.1)

The firewall doesn't respond to DNS for this domain and forwards the request to other DNS servers instead of resolving it from the local database

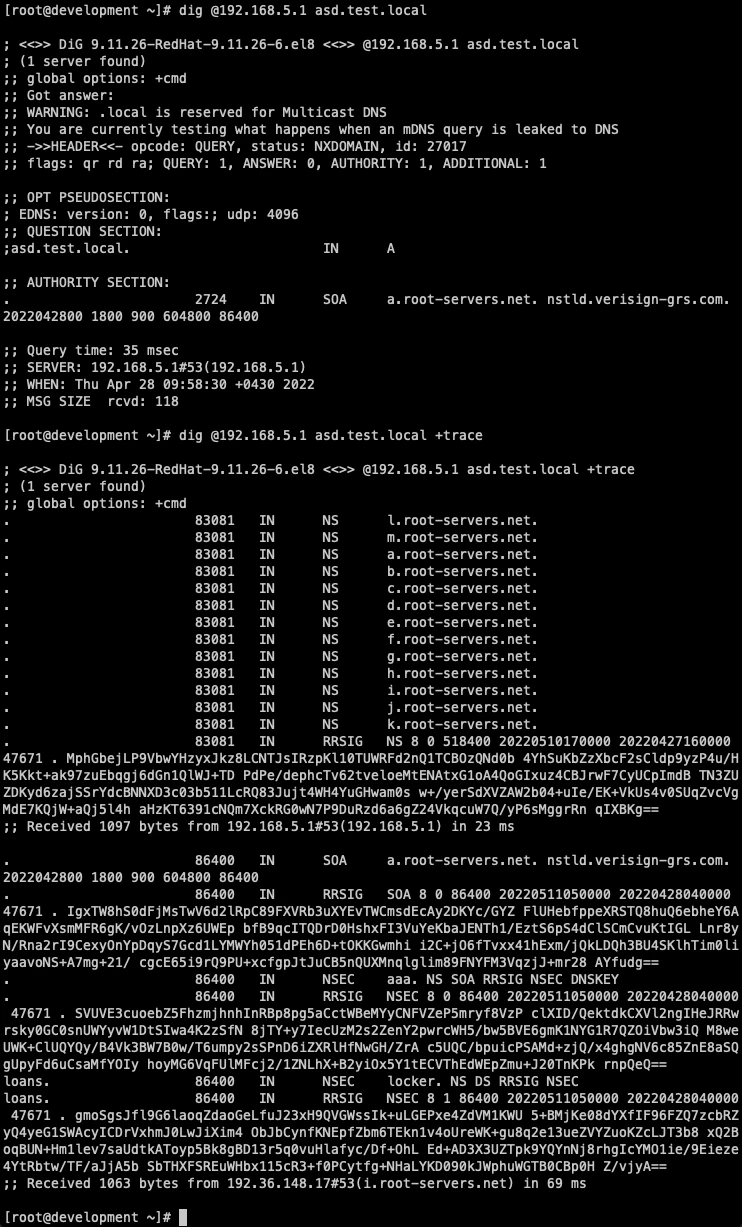

I tried dig for these domains and all of them failed to resolve:

  • asd.test.local
  • asd (should work because test.local is set in the Local domain name in DNS)
  • test.local

How can I fix this?

Best answer by AlexC-FTNT

Your DNS server seems to be set to forward-only, which will only forward to the public DNS configured, without checking the local database.

https://community.fortinet.com/t5/Fortinet-Forum/What-s-difference-between-recursive-non-recursive-and-forward-to/m-p/89977?m=169914

1 reply

AlexC-FTNT
Staff
Staff
April 28, 2022

Your DNS server seems to be set to forward-only, which will only forward to the public DNS configured, without checking the local database.

https://community.fortinet.com/t5/Fortinet-Forum/What-s-difference-between-recursive-non-recursive-and-forward-to/m-p/89977?m=169914

Heshmatkhah
Explorer
April 28, 2022

Thanks for your reply

It works in non-recursive mode but doesn't work in recursive mode.

Heshmatkhah
Explorer
April 28, 2022

Ok, I set the view to shadow (in addition to DNS server mod), and it works now.

But I can't understand what does internal and public users mean



Zone view (public to serve public clients, shadow to serve internal clients).
shadow: Shadow DNS zone to serve internal clients.
public: Public DNS zone to serve public clients.
