Fortinet with Starlink. If not active Starlink application does not reach the disk

Question

I integrate Starlink Maritine antennas on Yachts.

At the time of delivery of the Yacht, the Starlink antenna is not activated.
The antenna is then activated months later.

I need to make a report that demonstrates the correct functioning of the antenna (I don't want advice on how to prove if it works, I want to do it with the Starlink app).

With the Peplink devices that we use, by implementing the following rule it is possible to reach the antenna via the Starlink App even if it is not activated:

- Outbound policy – IP Address 192.168. 100.1 – Enforced WAN 1 (where Starlink is connected).

Installations on Yachts include an antenna, power supply and direct connection to the Fortinet WAN.
The Starlink router is not present.

I tried with a static route 192.168.100.1/255.255.255.255 but it doesn't work.

Is it possible to instruct a Fortinet so that when a user is connected via the App he can reach the antenna even if it is not active?

I hope I was clear.

I'm waiting for your suggestions

Hatibi · Accepted Answer

When antenna(dish) reaches the Starlink network the WAN apparently gets an IP from 100.64.0.0/10

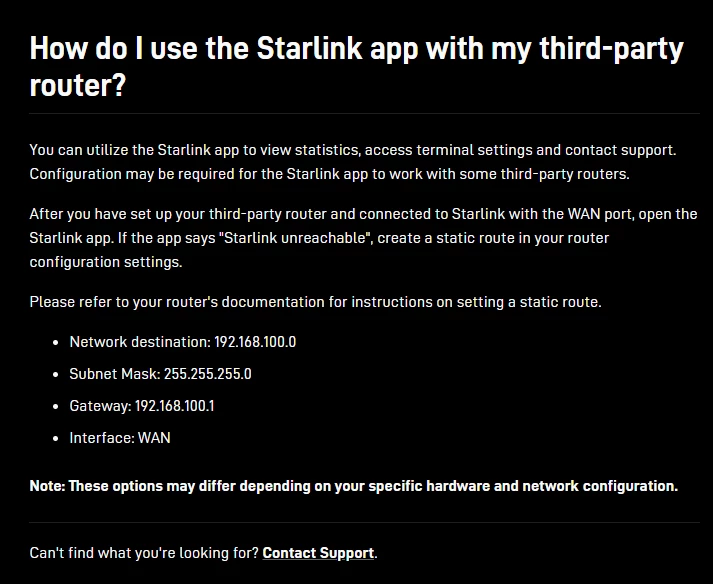

https://www.starlink.com/support/article/1192f3ef-2a17-31d9-261a-a59d215629f4

You will need to also have a static route toward 100.64.0.0/10 through WAN2.

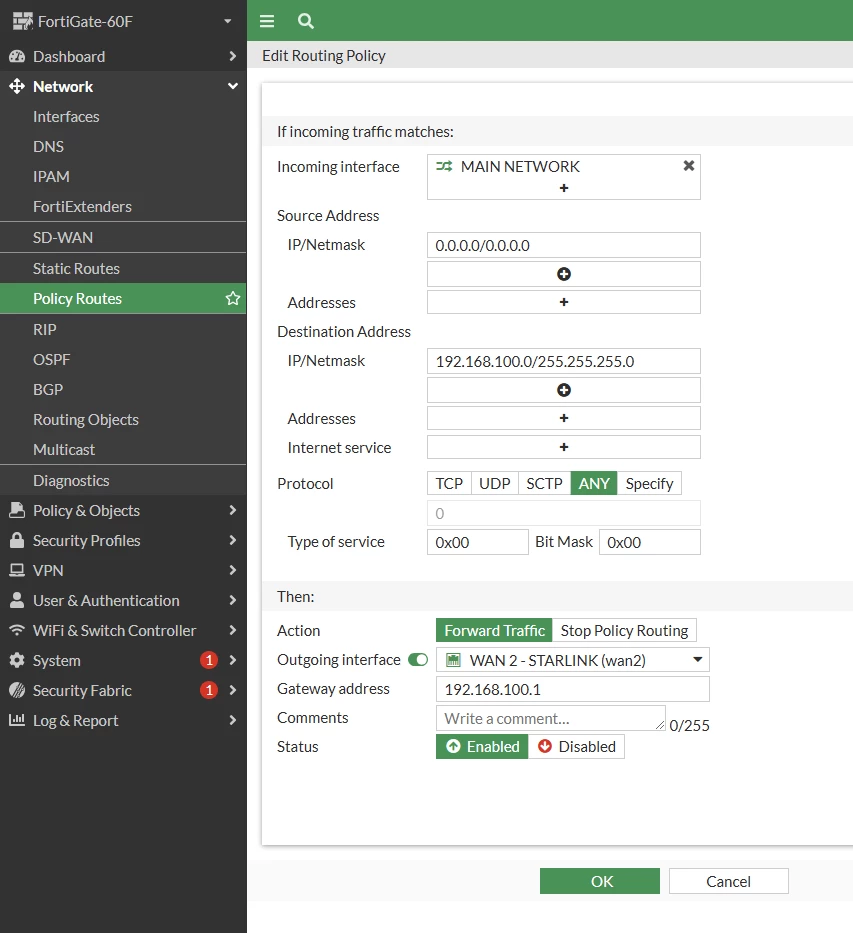

That policy route will not match anymore since you have put as destination address only the 192.168.100.0/24. You need to also add 100.64.0.0/10 as destination.

If only the outgoing interface is specified in the Policy route, FortiGate will look up the routing table(FIB) to find the gateway for 100.64.0.0/10.

Since network 100.64.0.0/10 is not learned dynamically, you will need to add a static route in order to be able to reach the antenna once it connects to the starlink network.

Also check in the traffic logs what traffic patterns does the Starlink App generate. This way you can properly match that traffic in the policy route.

Hatibi · Answer

In believe you can achieve this by using Policy Routes in FortiGate.

https://docs.fortinet.com/document/fortigate/7.6.0/administration-guide/144044/policy-routes

You need to match the traffic patterns that the user through Starlink App is generating and then create the policy route to steer that traffic toward the destination you want.

In the above documentation there is an example that shows how to configure a policy route to send all FTP traffic received at port1 out through port4 and to a next hop router at 172.20.120.23.

You need to do the same for the Traffic Generated by the Starlink App.
