Question

Fortinet jitter, packetloss, latency Monitoring SNMP Oid's required

  • April 17, 2018
  • 1 reply
  • 10646 views

Hi Team,   I m just trying to find out the OID's by which i can monitor the jitter,packetloss,latency but didn't find any clue in Mibs available please suggest the OID's to monitor such parameter   Thanks&Regards, sayed

    1 reply

    localhost
    localhost
    Visitor III
    April 23, 2018

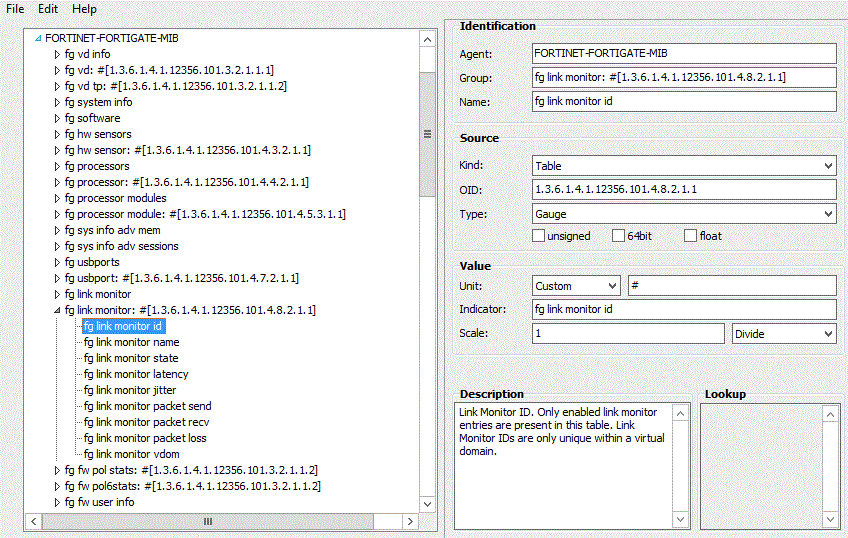

    I think you are looking for LinkMonitor? It's in the FORTINET-FORTIGATE-MIB.





    HaTiMuX
    HaTiMuX
    New Member
    August 21, 2019

    Hello,



    This can help:

    Link-monitor OID's are-

    latency - fgLinkMonitorLatency - .1.3.6.1.4.1.12356.101.4.8.2.1.4

    jitter - fgLinkMonitorJitter - .1.3.6.1.4.1.12356.101.4.8.2.1.5

    loss - fgLinkMonitorPacketLoss - .1.3.6.1.4.1.12356.101.4.8.2.1.8



    SDWAN OID's are -

    latency - fgVWLHealthCheckLinkLatency - .1.3.6.1.4.1.12356.101.4.9.2.1.5

    jitter - fgVWLHealthCheckLinkJitter - .1.3.6.1.4.1.12356.101.4.9.2.1.6

    loss - fgVWLHealthCheckLinkPacketLoss - .1.3.6.1.4.1.12356.101.4.9.2.1.9



    Réf: https://www.reddit.com/r/fortinet/comments/9occh5/jitterlosslatency_in_fortimanager_or_fortigate/
