Fortinet connect with several former pptp servers

Forum|Forum|10 years ago
March 22, 2016
8 replies
10418 views

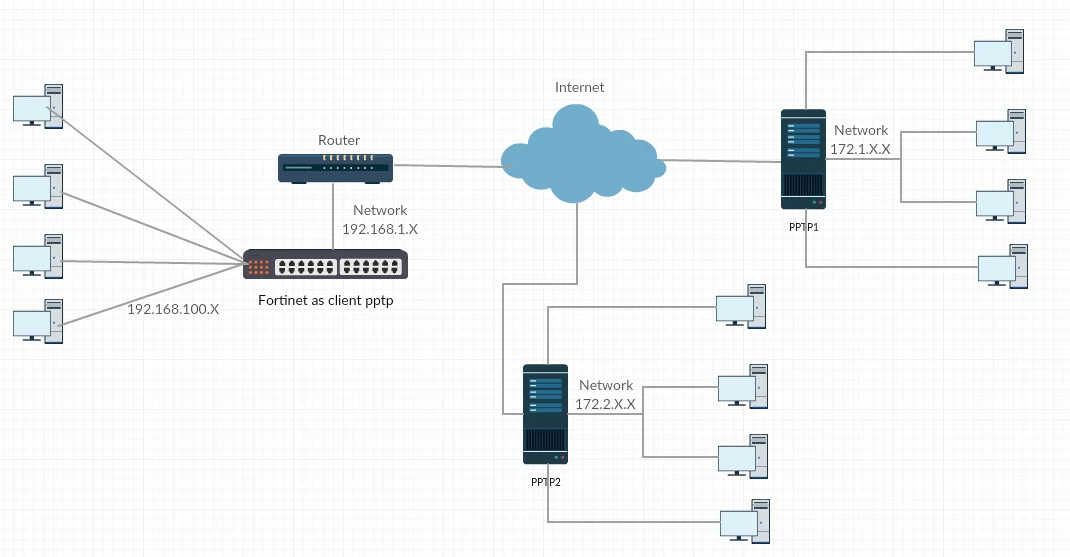

Hello, I need to connect my fortinet 60d constantly with multiple servers PPTP VPN old. What do I need to set this up?

PPTP 1 172.1.X.X/16

PPTP 2 172.2.X.X/16

I have my fortinet link to router 192.168.1.X with wan1 interface, and with interface internal i have another network 192.168.100.x. I want that from this range can access to all PTP VPN.

This is the process that I do, I create a new Virtual lan with this options:

set vdom "root"
set pptp-client enable
set defaultgw disable
set dns-server-override disable
set interface "lan"
set vlanid 1
set pptp-user USER
set pptp-password PASSWORD

set pptp-server-ip IP
set pptp-auth-type auto

really should enable mode dhcp? for pptp server assign an ip virtual of range 172.1.X.X/16? But if i active mode dhcp de pptp-client set disabled automatically. I am very new to networking, excuse me

Thanks in advanced


VPN

ede_pfau

SuperUser

I haven't used the PPTP client feature yet but in my opinion you can only have one PPTP client config per VDOM. That would mean you'd have to create multiple VDOMs to access multiple PPTP servers, and link them together via inter-VDOM links.

WebigAuthor

New Member

Thanks for your response. I create a Virtual Domain to test only for 1 pptp. After I add interface with commands and configure as first post. PPtp-client enable, vdom Pptp1... set interface ¿lan or wan? I have already created the virtual domain, but now does nothing, the pptp is not connected,do not get an ip. Really the mode is static, but if I put mode dhcp then the pptp-client disable auto. I'm lost not know how to do this :(

ede_pfau

SuperUser

Why don't you try to configure the PPTP client in the real FGT first? VDOMs require inter-VDOM links and routing etc.
