FortiNAC to send the Cisco radius Neat attribute

  • July 5, 2024
  • 1 reply
  • 4504 views

Hi Team,



I am replacing Cisco ISE with FortiNAC. The Cisco ISE is currently configured to profile the Access Points and send a Cisco Neat attribute. This Neat attribute helps the Cisco switch assign a truck role to the port.



In FortiNAC, Network Access > "Configuration" - It does not provide any option to send radius attribute only and VLAN ID is mandatory.

https://www.cisco.com/c/en/us/support/docs/lan-switching/8021x/116681-config-neat-cise-00.html



cisco-avpair = device-traffic-class = Switch



I want to check if FortiNAC has a way to sort this situation.



Regards,

Barry Ghuman

Best answer by ebilcari

The access value field is just a value that can be used if one of the attributes has the pointer %ACCESS_VALUE% configured. If the default is set to None and only this custom attribute is selected, that will be the only attribute that will end up in the Access-Accept:

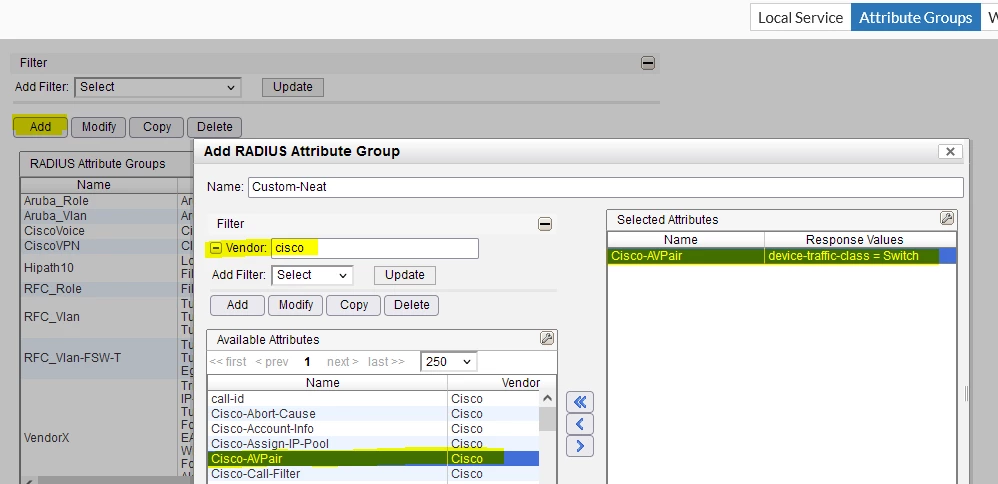

neat (1).PNG



You can run a packet capture from FNAC CLI to verify the RADIUS responses:

tcpdump host x.x.x.x and port 1812 -nnv

or if in FNAC version 7.2/4:

execute tcpdump host x.x.x.x and port 1812 -vX

*replace x.x.x.x with the IP of the switch

1 reply

ebilcari
Staff
ebilcari
Staff
July 5, 2024

Yes, it's possible through custom Attribute Groups. You can also check this article that shows a similar setup.

Emirjon
    BarryGhuman
    BarryGhumanAuthor
    New Member
    July 5, 2024

    Hi Team,

    I think you didn't understand my question. I want to assign only Radius attributes. I don't want to send the mandatory VLAN attribute.



    Regards,

    Barry Ghuman







    ebilcari
    Staff
    ebilcari
    Staff
    July 8, 2024

    Are you trying to customize the attributes on the RADIUS Access-Accept right?

    Are you having trouble creating the custom attribute group or applying it?


    Emirjon
