Question

FORTINAC 802.1x fortigate wifi clients usernames

  • January 27, 2025
  • 1 reply
  • 984 views

Hello,



Customer has FortiGate + fortiap deployments at all of their locations (around 22 and growing). We used to use windows NPS for 802.1x, recently we switched to Fortinac (Fortinac-f 7.2.8). Everything works as expected. But the problem is in the FortiGate GUI, wifi-controller -> wifi clients section we used to view user information as

Domain/username (COPMPANY/USER1)



After the transition,

half of the users started appear as Domain/computername FQDN (COMPANY/PCHOSTNAME.COMPANY.LOCAL)



Both type clients work fine, but this makes IT support a bit tricky since they are mostly using usernames to check on users. Is there a reason for this to happen? If it was for all users, than I would say ok there is ma parameter to deal with. But having some users with usernames and some users with hostnames is a bit confusing.



Regards,



1 reply

ebilcari
Staff
ebilcari
Staff
January 27, 2025

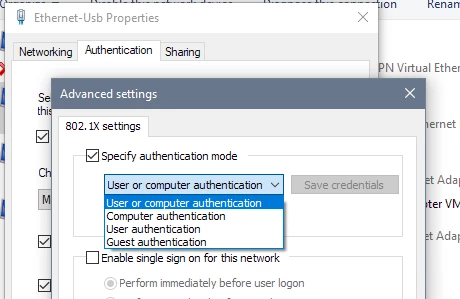

Based on the description it seems that some hosts are doing User and some Computer authentication. This is mode is chosen from the supplicant configuration in the end host, example below is from Windows 10:



authentication mode.PNG



This settings/configurations are usually unified and pushed through GPO to the end hosts.

Emirjon
    KayaAtab
    KayaAtabAuthor
    Visitor III
    January 27, 2025

    Hello,



    The clients are wireless,  I guess the solution you provided is for wired connections with wired auto-config. I don't have this option on the wireless interface.





    ebilcari
    Staff
    ebilcari
    Staff
    January 27, 2025

    I used a wired connection as example because it's was easy to show from the lab but the same logic and configurations apply to wireless. You can see the configuration options if you set up a new connection through Control Panel or via GPO.



    You can use the CMD to check the configurations for existing WiFi networks:

    > netsh wlan show profiles TLS-PC

    Profile TLS-PC on interface Wi-Fi:
    ========================================================

    Applied: All User Profile

    Profile information
    -------------------
    Version : 1
    Type : Wireless LAN
    Name : TLS-PC
    Control options :
    Connection mode : Connect manually
    Network broadcast : Connect only if this network is broadcasting
    AutoSwitch : Do not switch to other networks
    MAC Randomization : Disabled

    Connectivity settings
    ---------------------
    Number of SSIDs : 1
    SSID name : "TLS-PC"
    Network type : Infrastructure
    Radio type : [ Any Radio Type ]
    Vendor extension : Not present

    Security settings
    -----------------
    Authentication : WPA2-Enterprise
    Cipher : CCMP
    Authentication : WPA2-Enterprise
    Cipher : GCMP
    FIPS mode : Disabled
    Security key : Absent
    802.1X : Enabled
    EAP type : Microsoft: Smart Card or other certificate
    802.1X auth credential : Machine credential
    Cache user information : Yes

    Emirjon
