Fortimanager VM connect fortigate error

Forum|Forum|1 year ago
September 23, 2024
7 replies
21682 views

Good afternoon!

Friends, I'm using two images in EVE-NG, one from fortigate v7.0.15 and the other from fortimanager v7.6.0 build3340 (Feature).

I connected to both with the forticloud trial.

I configured a management interface on both and another Lan interface (where I would connect between them)

They both ping each other and fortigate closes telnet on port 541.

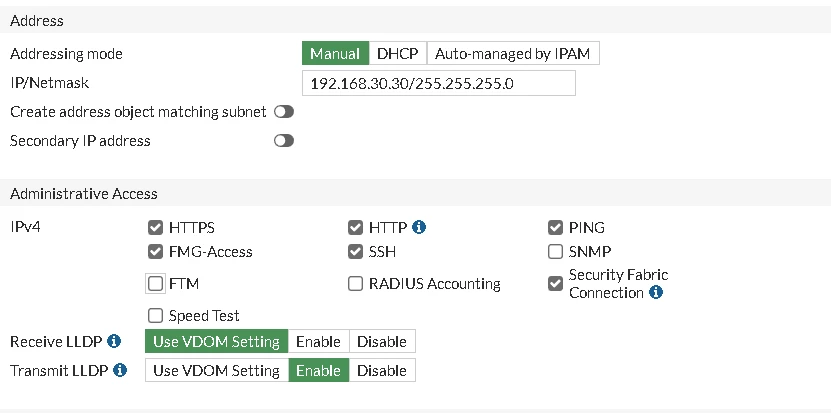

I activated FMG-Access on the lan port on the fortigate where I will communicate with the fortimanager.

I reduced encryption in fortimanager, set low and also activated fgfm-ssl-protocol sslv3.

I put the Fortimanager IP in the fabric connector > Fortimanager, on premises.

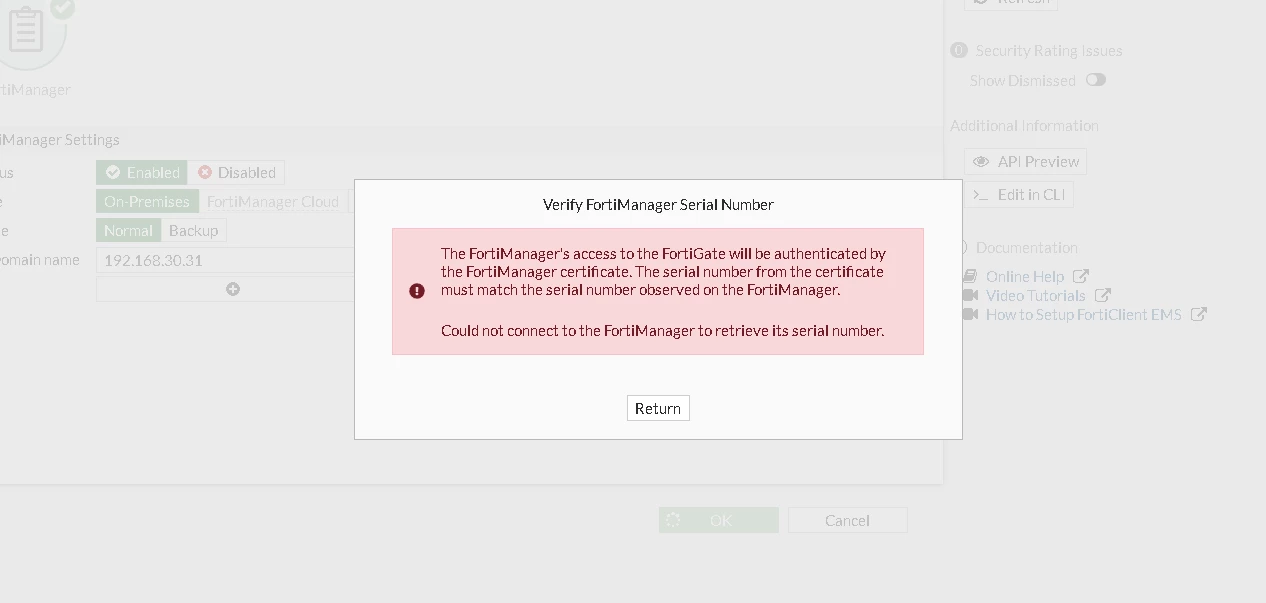

I always get this error:

The FortiManager's access to the FortiGate will be authenticated by the FortiManager certificate. The serial number from the certificate must match the serial number observed on the FortiManager. Could not connect to the FortiManager to retrieve its serial number.

I tried everything possible, I have no more ideas. Please Help .

adambomb1219

SuperUser

Why 7.0?

RafaelkkksalgadoAuthor

New Member

Because I read about this version having fewer limitations as it is a trial. :,( . But I tried with newer versions too. I had the same result.

Hsharma

Staff

Hello ,

Please check the compatibility tool between Fortigate and Fortimanager . They seems to be non-compatible version. Kindly try to make the version compatible to each other and see that helps.

Please use the link to check the compatibility between fortigate and fortimanager .

https://docs.fortinet.com/compatibility-tool/fortimanager

Thank You

RafaelkkksalgadoAuthor

New Member

You right! But i already test compatible versions. But i find the solution now. Need to run this on Fortimanager: config sys global
set fgfm-peercert-withoutsn enable

Thanks all.

ametkola

Staff

Hello @Rafaelkkksalgado

The article below explains further regarding the error and the solution in this case:

https://community.fortinet.com/t5/FortiManager/Technical-Tip-Setup-custom-certificate-for-FGFM-protocol/ta-p/242730

Regards,

M_Tahir

New Member

https://community.fortinet.com/t5/FortiManager/Technical-Tip-Setup-custom-certificate-for-FGFM-protocol/ta-p/242730

I have followed this article so I am stuck on importing certificate in Fortinet firewall kindly anybody assists me it's urgent.

error is
incorrect the certificate file formate CA/LOCAL/REMOTE like this
