Fortimanager VM 7.4.5 connect fortigate 7.0.9 error

  • March 19, 2025
  • 2 replies
  • 903 views

Good evening!
Friends, I'm using two images in EVE-NG, one from fortigate v7.0.9 and the other from fortimanager v7.4.5 build2553.
I connected to both with the forticloud trial.
I was configured a management interface on both and another Lan interface (where I would connect between them)
They both ping each other and fortigate closes telnet on port 541 as I have checked.

I activated FMG-Access on the lan port on the fortigate where I will communicate with the fortimanager.
I reduced encryption in fortimanager, set low and also activated fgfm-ssl-protocol sslv3.
I put the Fortimanager IP in the fabric connector > Fortimanager, on premises.

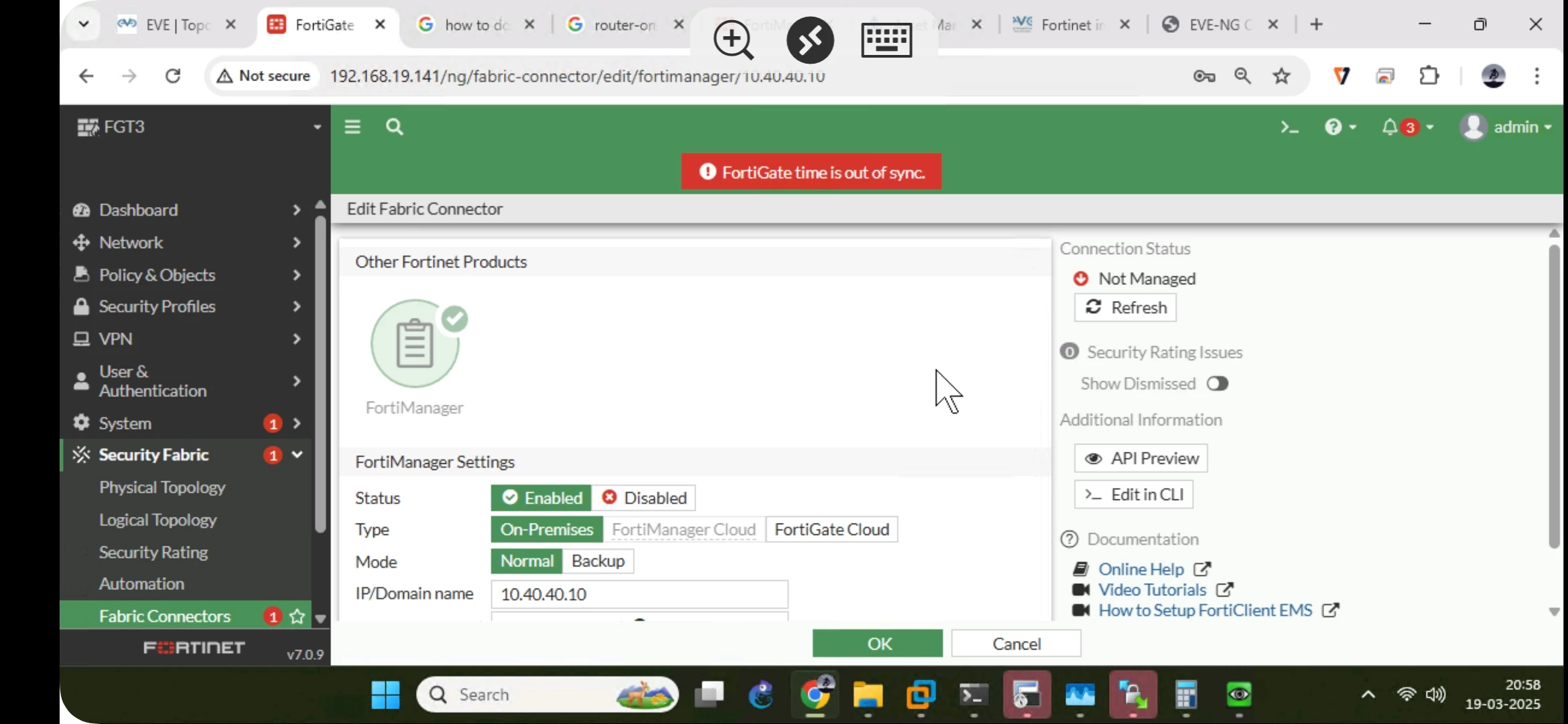

I always get this error (not manage)as I enclosed snapshot.
I tried everything possible, I have no more ideas. Please Help thanks in advanced.


 

2 replies

Anthony_E
Staff
Anthony_E
Staff
March 23, 2025

Hello AK,


Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


Thanks,

Best Regards
Nur
Staff
Nur
Staff
March 24, 2025

Hi,



Please check from Certificates if CN showed FortiGate SN.

go to System -> Certificates -> check "Fortinet_Factory" cert and expand to check the CN=<value is it a correct FGT Serial No.>

If not same, then at FGT run CLI command:

# get sys status <--------- copy FGT Serial No. Eg: FGTXXXXXXXXXXX

# exe vm-license <copied FGT Serial No.> <--------- this will trigger reboot FGT.

Eg:

exe vm-license FGTAXXXXXXXXXXXXXXX



If yes, you can run below config to FortiManager acknowlegde FGT SN without cert.



config system global ( from FortiManager )

    set fgfm-peercert-withoutsn enable .

end
