FortiManager pxGrid Connection

Forum|Forum|2 years ago
February 1, 2024
6 replies
2903 views

I wanted to connect a FortiManager with pxGrid ISE according to the following Installation Guide: https://docs.fortinet.com/document/fortimanager/7.4.2/administration-guide/466394/creating-cisco-pxgrid-connectors

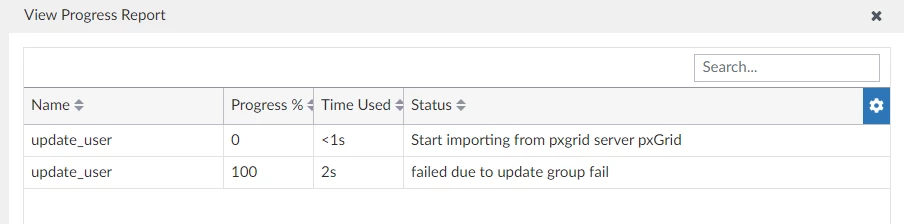

We have uploaded the certificate in FortiManager and created the pxGrid Connector under Fabric Connectors. The FortiManager is also already listed on the ISE server. But when I go to External Connectors -> the pxGrid Connector Apply & Refresh I get 2 errors (see screenshots). Does someone know what could be the reason for this error? In addition, the screenshots in the Administration Guide show an older software version of the Manager and the extra function "Single Sign On" is no longer available on the Manager V.6 & V7.

Thank You

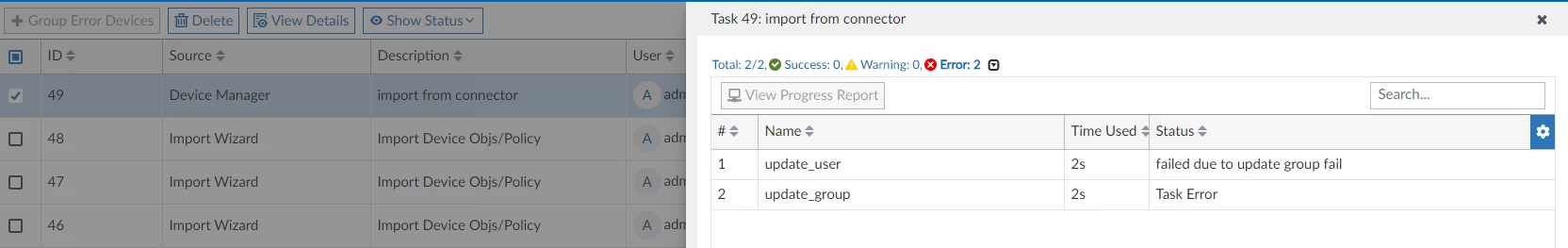

Progress Report.PNG

Fortimanager

adambomb1219

SuperUser

What version of ISE? Has Fortinet updated this connector for pxGrid 2.0?

NickStudiAuthor

Visitor III

Hi adambom1219, the Version of the ISE is V3.2.

adambomb1219

SuperUser

ISE 3.1 removed support for pxGrid 1.0. I would open a Fortinet TAC case and ask if Fortinet updated the pxGrid code in FortiManager for pxGrid 2.0.
If the FortiManager side still requires pxGrid 1.0, then you need your ISE server to be on version 3.0 which: https://www.cisco.com/c/en/us/products/collateral/security/identity-services-engine/identity-service-engine-software-3-0.html

vraev

Staff

Hi @NickStudi ,

Have you tried to made a packet capture?
diag sniffer packet any 'host 172.20.39.48 and host 172.20.39.45' 3 (example)
And debugs at the same time:

diag debug enable diag debug app connector 255 Best,

onedread

Explorer

you got any solution for your problem?

NickStudiAuthor

Visitor III

no sorry the project abandoned so i didnt kept working on that
