FortiMail 90% Access Control (OUTBOUND)

  • April 22, 2014
  • 15 replies
  • 21438 views
Hi, I have an FML that seems to be working fine for receiving email but when looking at the graph for outbound ermail it shows 80+ % if emails are blocked by Access Control - Relay denied. Some emails get out. When looking at the log I don' t see internal (Protected) email addresses in the from field. I also see on the status page that AV and VMWare are green checks but the AntiSpam is orange. I' ve changed the port from 53 to 8888 and 8889 but it makes no difference. I can resolve the service.fortiguard.net and can ping the IP that it resolves to. The FML is using only one interface which is connected to an FGT and the FGT allows all traffic from the FML to the internet and SMTP traffic to the Exchange server. Thanks for any help. Matt.

    15 replies

    Bromont_FTNT
    Staff
    Bromont_FTNT
    Staff
    April 22, 2014
    Regular outbound mail from your mail server (Exchange etc) is working ok? Sounds like spammers are trying to relay through you and the Fortimail is doing it' s job blocking all that. Next issue is your Fortiguard AS problem... Can you post a screenshot of the AS status as well as what' s under Maintenance --> Fortiguard What do you get with an IP query to Fortiguard?
    Mattlemon
    MattlemonAuthor
    New Member
    April 22, 2014
    Regular outbound mail from your mail server (Exchange etc) is working ok? Sounds like spammers are trying to relay through you and the Fortimail is doing it' s job blocking all that. Next issue is your Fortiguard AS problem... Can you post a screenshot of the AS status as well as what' s under Maintenance --> Fortiguard What do you get with an IP query to Fortiguard?
    Hi, not all email from exchange is finding it' s way out but all incoming is fine. Screenshots attached. Thanks !
    Mattlemon
    MattlemonAuthor
    New Member
    April 22, 2014

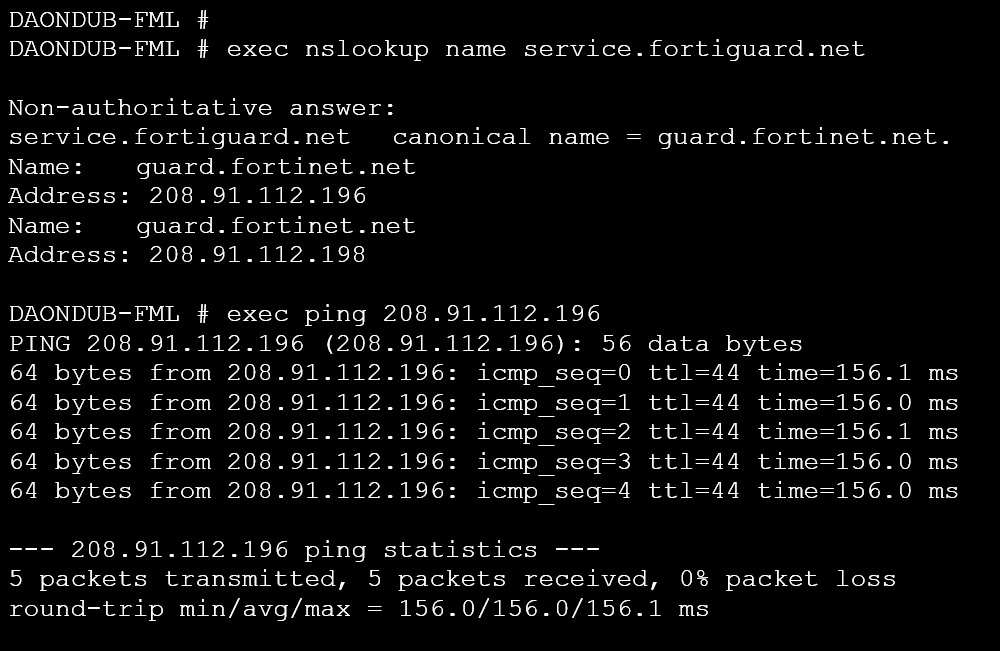

    Connected DAONDUB-FML # DAONDUB-FML # exec nslookup name service.fortiguard.net Non-authoritative answer: service.fortiguard.net canonical name = guard.fortinet.net. Name: guard.fortinet.net Address: 208.91.112.196 Name: guard.fortinet.net Address: 208.91.112.198 DAONDUB-FML # exec ping 208.91.112.196 PING 208.91.112.196 (208.91.112.196): 56 data bytes 64 bytes from 208.91.112.196: icmp_seq=0 ttl=44 time=156.1 ms 64 bytes from 208.91.112.196: icmp_seq=1 ttl=44 time=156.0 ms 64 bytes from 208.91.112.196: icmp_seq=2 ttl=44 time=156.1 ms 64 bytes from 208.91.112.196: icmp_seq=3 ttl=44 time=156.0 ms 64 bytes from 208.91.112.196: icmp_seq=4 ttl=44 time=156.0 ms --- 208.91.112.196 ping statistics --- 5 packets transmitted, 5 packets received, 0% packet loss round-trip min/avg/max = 156.0/156.0/156.1 ms DAONDUB-FML #
    Mattlemon
    MattlemonAuthor
    New Member
    April 22, 2014

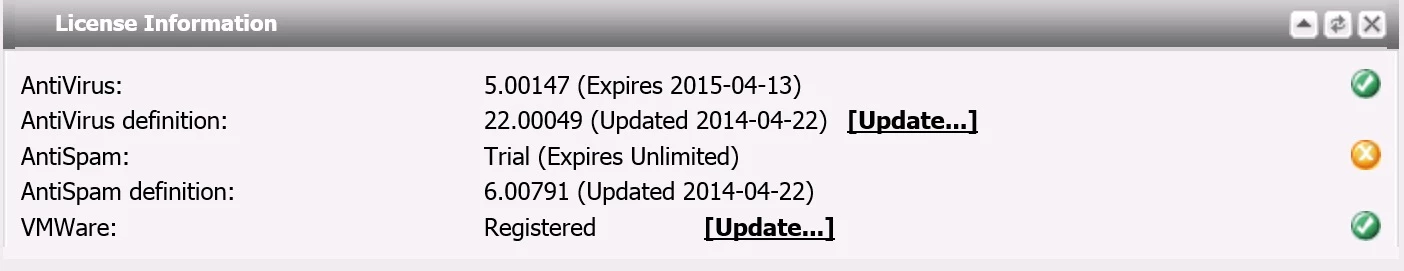

    Licence info
    Mattlemon
    MattlemonAuthor
    New Member
    April 22, 2014

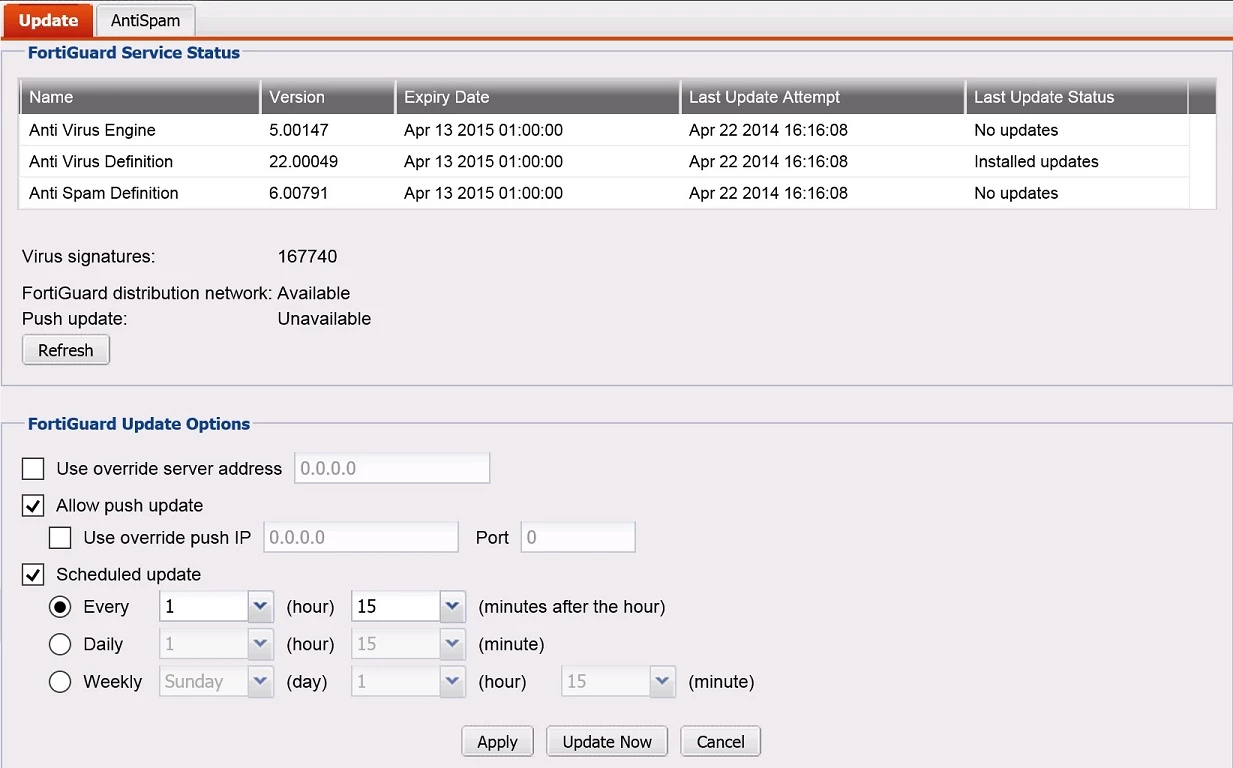

    FDN Status
    Mattlemon
    MattlemonAuthor
    New Member
    April 22, 2014
    Ping / Trace results
    Bromont_FTNT
    Staff
    Bromont_FTNT
    Staff
    April 22, 2014
    That first screenshot didn' t seem to make it through... For outbound mail from your mail server, are you able to find those messages that don' t make it out in the logs? try the following at CLI to get AS kickstarted again: #exec update now
    Mattlemon
    MattlemonAuthor
    New Member
    April 22, 2014
    That first screenshot didn' t seem to make it through... For outbound mail from your mail server, are you able to find those messages that don' t make it out in the logs? try the following at CLI to get AS kickstarted again: #exec update now
    I can' t see the emails that didn' t make it through in the log. I ran the CLI update and it kicked off an update but made no difference to the A/S unfortunately.
    Bromont_FTNT
    Staff
    Bromont_FTNT
    Staff
    April 22, 2014
    E-mails that don' t make it through...they never make it through? Or they are delayed? Is your timezone correct?
    Mattlemon
    MattlemonAuthor
    New Member
    April 22, 2014
    Yup, the timezone is correct. The ones that don' t make it though don' t seem to get through at all but there are others that are delayed by an hour or two as well. Makes no sense.
