FortiLink: ISL timing-out for trunk(_FLinkDhcpDisc_) when Fortiswitch "exec reboot"

  • September 2, 2024
  • 2 replies
  • 1600 views

Hi Team,



I have configured a FortiSwitch 108F-FPOE // version S108FF-v7.2.4-build5148,230530 (GA) // via fortilink and everything works ok, but when I reboot the Fortiswitch, I start getting messages saying "FortiLink: ISL timing-out for trunk".

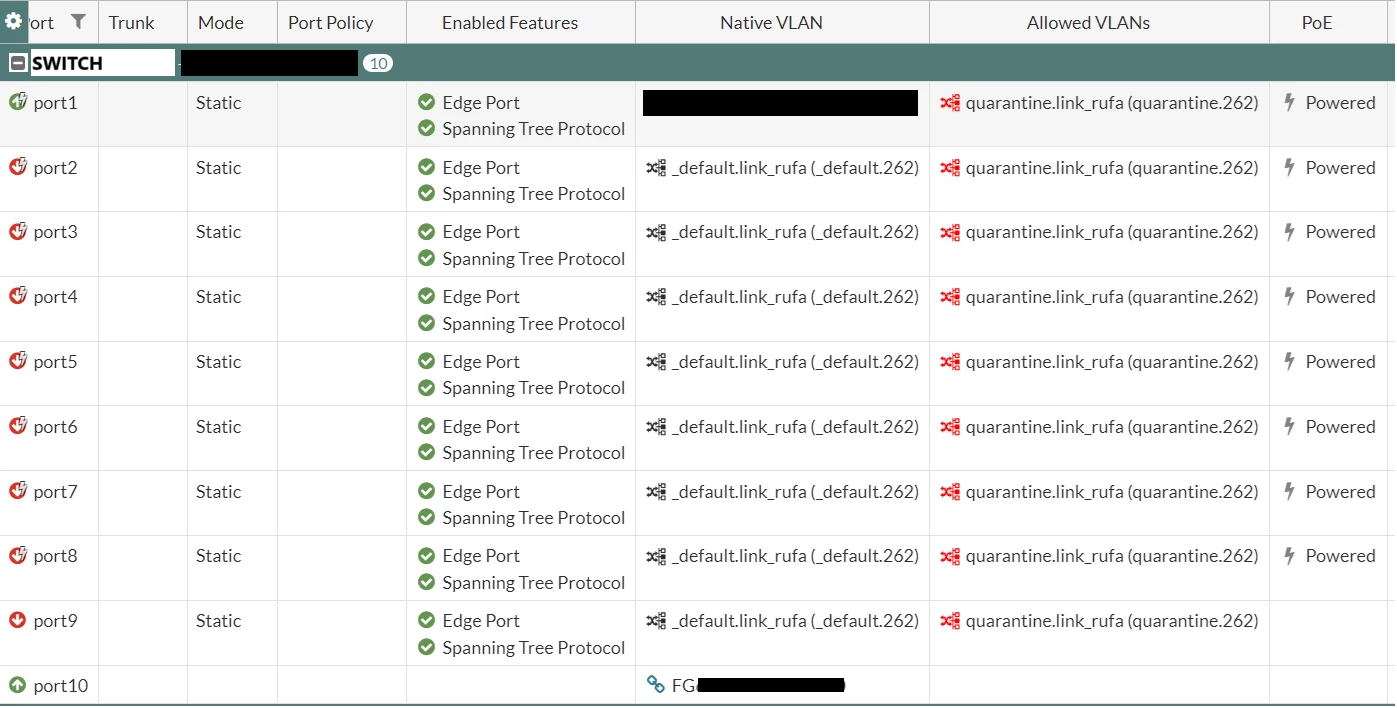

Info

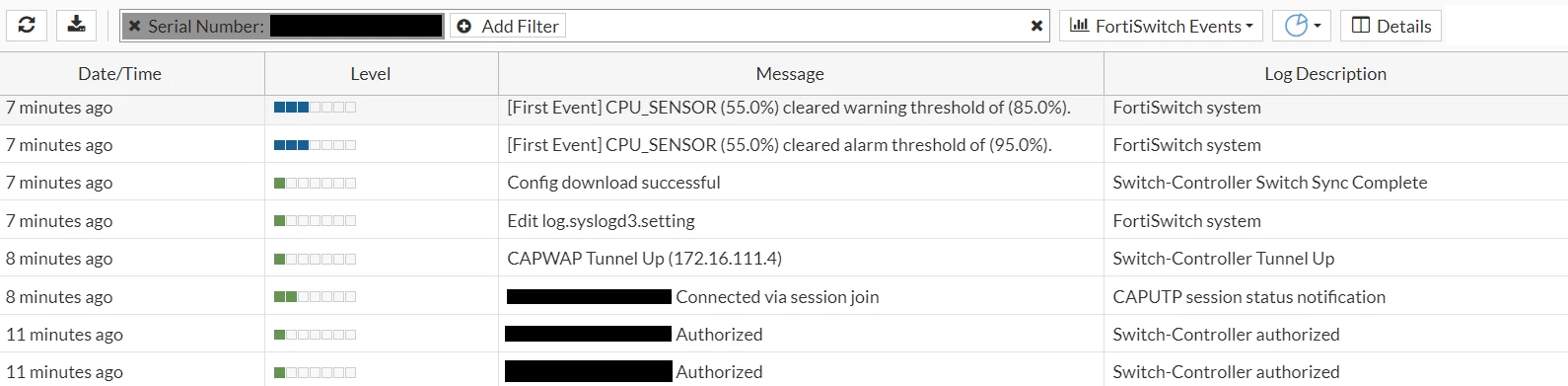

Before restarting the Fortiswitch

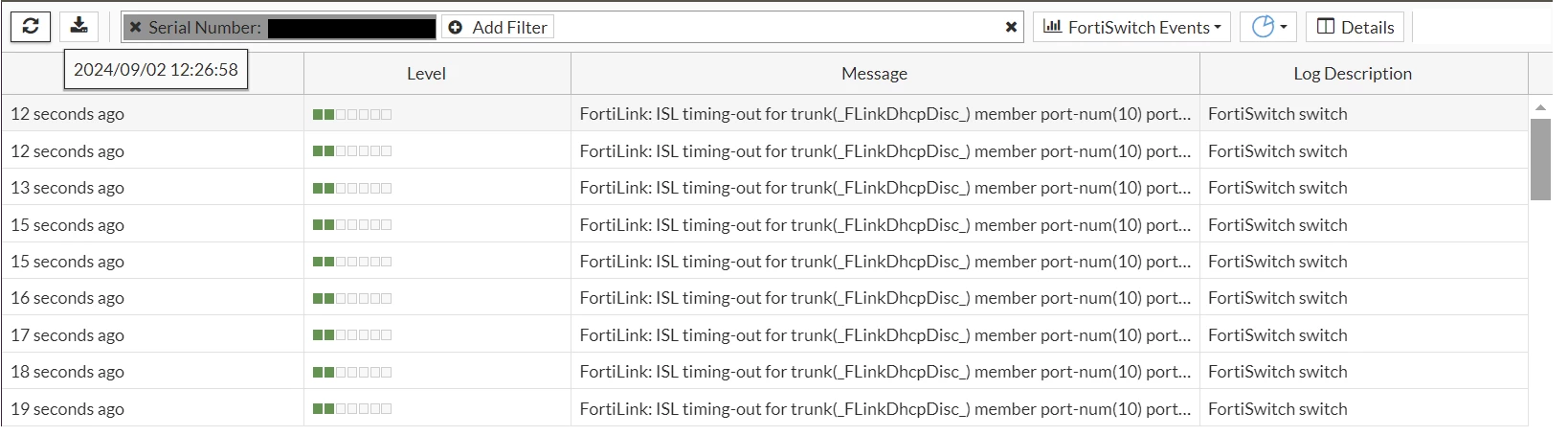

After restarting the Fortiswitch


Fortiswitch Trunk configuration



config switch trunk
edit "_FLinkDhcpDisc_"
set auto-isl 1
set static-isl enable
set members "port10"
next
end



What can this be due to?



Thanks & Best Regards,

Juanmi



2 replies

tpatel
Staff
Staff
September 2, 2024

Hello Juanmi,



Have you enable mclag-icl on switch, Please click on below link and reference document.

https://community.fortinet.com/t5/FortiSwitch/Technical-Tip-ISL-timing-out-on-mclag-icl-trunk/ta-p/227514

jmhalegre
jmhalegreAuthor
New Member
September 2, 2024

Hi tpatel,



No, I don't have mclag-icl configured in the Fortiswitch, I have this configuration:



Fortiswitch Trunk configuration



config switch trunk
edit "_FLinkDhcpDisc_"
set auto-isl 1
set static-isl enable
set members "port10"
next
end



Thanks & Best Regards,

Juanmi
