Fortigate Web Filtering Issue - RegEx

  • December 10, 2014
  • 4 replies
  • 22955 views

Hi Guys,



Trying to build out the fortigate filtering using regular expressions and I can't seem to make them do what I want.



We have an implicit deny policy in place so need to allow access to the CRL for microsoft, go daddy etc.



I have setup a policy as below:



config webfilter profile
    edit "Certificate_Revocation_Check"
            config override
                set ovrd-user-group ""
            end
            config web
                set urlfilter-table 10
            end
            config ftgd-wf
                    config filters
                        edit 1
                            set category 140
                        next
                        edit 2
                            set category 141
                        next
                    end
            end
        set log-all-url enable
    next
end



However, All I see are "passthrough".



Please can you offer some assistance?

4 replies

Dave_Hall
Dave_Hall
New Member
December 11, 2014

Hi Matt.



Welcome to the forums.

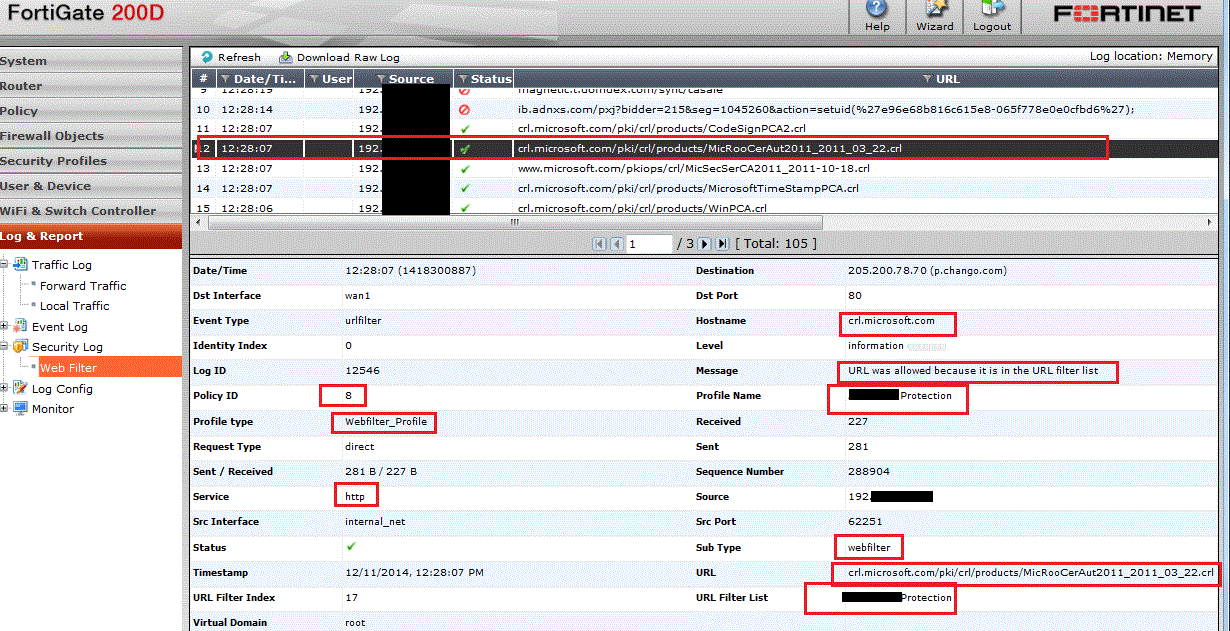

Can you clarify what you mean by passthrough? As in not hitting the firewall policy?  Have you actually applied the web filtering profile to firewall policy?  Can you post a screenshot of the firewall policy in question?  If you have a web filter profile enabled on a firewall policy, you should be able to see "drilled down" session info, similar to the following screenshot (from 5.0.9 firmware)...



MattIggo
MattIggoAuthor
New Member
December 11, 2014

Hi Dave,



Yes I can see that, Please see attached screenshot.



I will reply in a second with my policy.





MattIggo
MattIggoAuthor
New Member
December 11, 2014

This is my Web Filter Profile





This is the Policy



This is the policy in detail





Using FortiOS 5.2.2



I have a set of profiles setup as shown below: (Not sure this is correct by the way!)



ede_pfau
SuperUser
ede_pfau
SuperUser
December 12, 2014

(Not sure this is correct by the way!)
The 'all' address object makes all other addresses oblivious. I'd recommend you define the address spaces of your VLANs, group them and employ that in the policies. 'all' to 'all' is only rarely justified.



Just my 2 ct.

MattIggo
MattIggoAuthor
New Member
December 12, 2014

All to All has a perfectly valid reasoning in this deployment.



Yes, It should be cleared up "ideally" but first, Functionality....

ede_pfau
SuperUser
ede_pfau
SuperUser
December 12, 2014

I'm not sure you see my point:

if you both specify 'all' and another address as source, that other address will never be looked at. I just want to make you aware of this.

MattIggo
MattIggoAuthor
New Member
December 12, 2014

Hi,



I kind of see your point but need some information qualifying if possible?



Are you saying the following? Packets come in from ip 1.1.1.1 destined to 2.2.2.2 tcp port 80.



The policy says: Permit internal any external any http



The incoming IP will match any and then it won't look at the destination? This is completely different to how I see it functioning in real world terms?



My understanding of packet flows is: Incoming Interface match

Incoming IP Match

Outgoing Interface match

Outgoing IP Match

Service Match

Permit / Deny



Matt

Dave_Hall
Dave_Hall
New Member
December 12, 2014

To be honesty, I can not tell from that firewall policy screen what does what without the column headings.  Also, not sure what the action "passthorough" means -- none of our fgt devices are on the 5.2 firmware path.



Three things:

[ol]
  • The url profile/url filter looks ok.
  • I agree with edu that the firewall policies could be cleaned up.
  • Web caching is enabled on the fw policy, which I suspect is what causing "grief" -- I know from 4.3.x no firewall policies are not actually hit if the requested object is stored in the cached. [strike](Perhaps this is what is meant by passthrough?)[/strike][/ol]

    Edit: documentation on passthrough action is very lacking.  I loaded 5.2 on a 200D and played around with it, I can see the usual action messages, including passthough.  I'm assuming now it's just the fgt's way of saying the event (url filter allow action) is a hit and now it will "check other web filters". See this post.[strike][/strike]

    • mramon79
    mramon79
    New Member
    December 16, 2014

    Hi,



    in 5.2 is not possible universal reg expresion, here you have the answer from fortinet support to this issue:





    I have information from developers that this behavior is by desing in
    FortiOS 5.2, and will not be changed. For the performance reasons,
    universal wildcard is no longer supported in URL filter.

    If you want to use the wildcard in the URL filter, you have at least
    specify whether the string is part of the domain name, or path.




    Dave_Hall
    Dave_Hall
    New Member
    December 16, 2014

    Hi mramon79



    Can you clarify this?  The quoted text from Fortinet support indicate wildcard but you are indicating regular expression -- the two types (along with simple) are still offered choices when setting up a url filter in 5.2.



    Edit: mind you -- removing wildcard type wouldn't be so bad -- you can still use regular expression to craft a "wildcard" url filter if needed.
