Fortigate WAN

Forum|Forum|2 years ago
September 20, 2023
4 replies
5060 views

Hello everyone; I really need help. I have a FortiGate200F firewall, I have just connected the fiber optic via a Huawei equipment (A810A). my multiservice network: RMS 192.168.141.98/30 my WAN network: 41.111......./30. My ADSL lines work as normally as possible via an SD-WAN and WAN alone. Thank you

FortiGate

mle2802

Staff

Hi @Ouams_90,

Could you please provide more detail about your issue? Are you trying to set up SD-WAN?

Regards,
Minh

Ouams_90Author

Explorer

Hello,
I have 3 ADSL lines configured on port 2 port 3 port 4.
With PPPoE. works well
now I want to add a 4th line which will be fiber optic
I have an OptiXstar A810 supplied by the ISP provider.
I want to configure it but I can't.
here is the data provided by my ISP :
RMS: 192.168.141.98/30 default gateway 192.168.141.97
WAN: 41.111...../30
thank you

hbac

Staff

Hi @Ouams_90,

Please provide more details about your question. What are you trying to achieve?

Regards,

Ouams_90Author

Explorer

Hello,
I have 3 ADSL lines configured on port 2 port 3 port 4.
With PPPoE. works well
now I want to add a 4th line which will be fiber optic
I have an OptiXstar A810 supplied by the ISP provider.
I want to configure it but I can't.
here is the data provided by my ISP :
RMS: 192.168.141.98/30 default gateway 192.168.141.97
WAN: 41.111...../30
thank you

hbac

Staff

Hi @Ouams_90,

May I know which part of the configuration are you facing the issue? Are you getting any error? Please provide a screenshot if possible.

Regards,

DPadula

Staff & Editor

Kush_Patel

Staff

Hello @Ouams_90,

From the traceroute, i can see the packet was reaching to 172.16.0.1 (x1 interface of FGT, LAN) and then it is being forwarded to default gateway of your FO 192.168.141.97. After that hop, the paket was not being forwarded. You should check with ISP of FO.

Regards.

Ouams_90Author

Explorer

hi @Kush_Patel

but i can ping from outside my public ip address linked to my wan 1 41.111.......

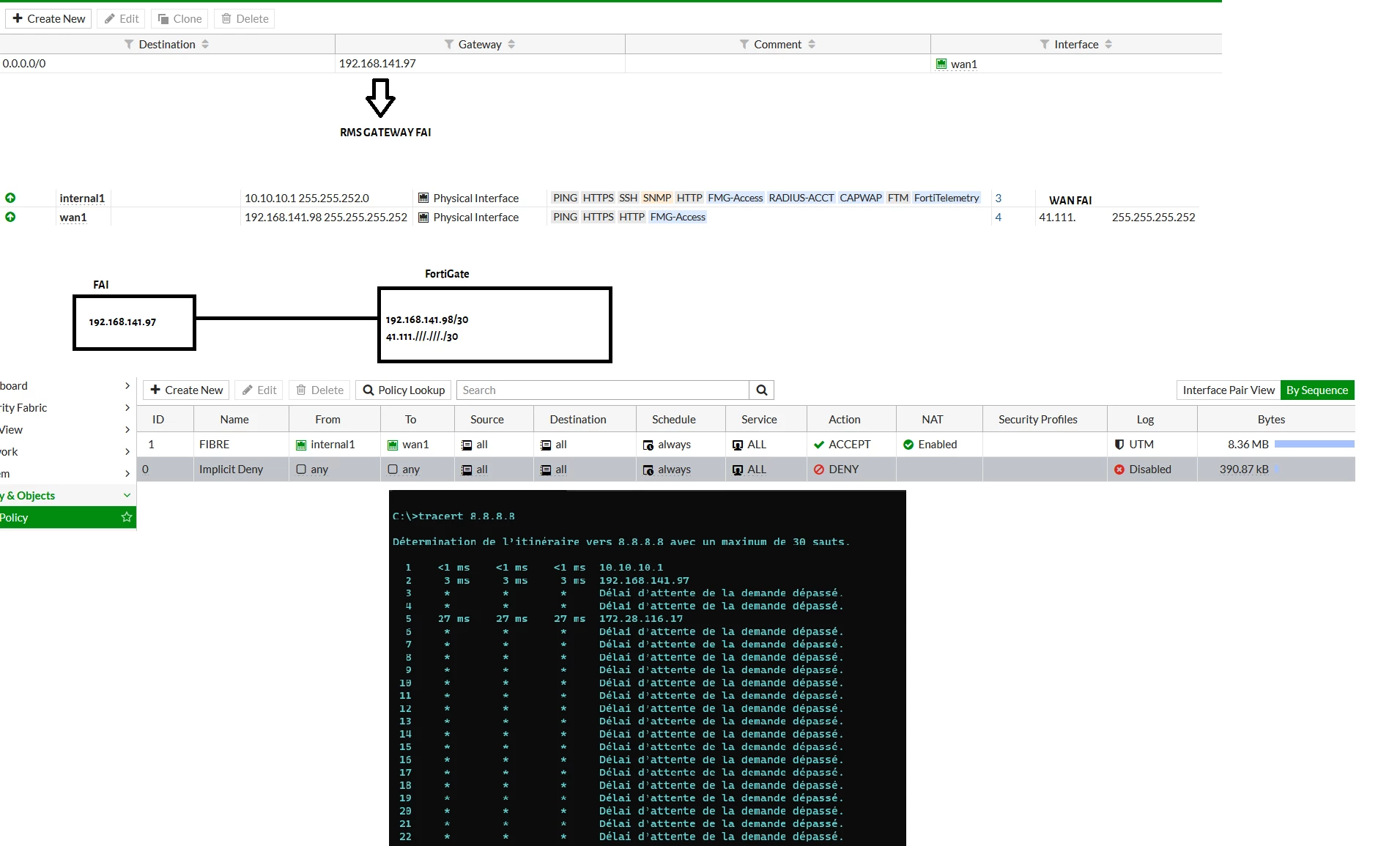

attached screenshot

Capture d'écran 2023-09-23 113916.png

Regards
