FortiGate VM64-AZUREONDEMAND VPN setup

  • November 13, 2020
  • 1 reply
  • 3813 views

Hi, Im in the process of setting up a VPN in Azure.  Unfortunately there isnt a lot of documentation around this I can find.  Im trying to setup a SSL VPN connection. I have the initial configuration complete. Im unable to connect with a client (error 10003200).  The VM has a public facing IP, it has a private ip and its configured to talk back to our network with a firewall policy.  I suspect the issue is related to the interface.  I only have one physical interface.  That interface is pointing to private ip mentioned above.  (So under SSL-VPN settings Im telling it to listen on any interface.)  I dont seem to have an option to add a second interface representing public incoming.  Does anyone know how i would add a second interface?  Is it possible I would need to add another nic to the vm on the azure side?  any suggestion would be appreciated, this is my first VPN setup.  i have about 16 hours in this so i may be assuming im providing enough information but if not please let me know.  Thanks

    1 reply

    tlmckee2k
    tlmckee2kAuthor
    New Member
    November 13, 2020

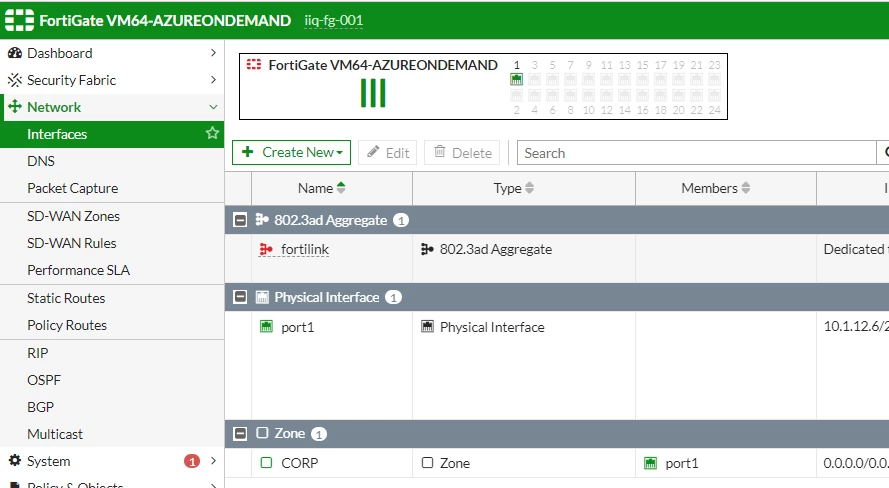

    To add more information, I'm using v6.4.2 build1723 (GA) in Azure platform.  Here is my interface.  See how there doesn't seem to be one for external to be what it needs for monitoring.  That's if I'm reading it right.  Thanks



    boneyard
    boneyard
    Valued Contributor
    November 15, 2020

    can you try to upload that image again, im only seeing base64 code



    which template did you use to deploy this? which azure vm type?





    tlmckee2k
    tlmckee2kAuthor
    New Member
    November 17, 2020

    Hi thanks for the response.

    Fortinet FortiGate Next-Generation Firewall Standard B1ms (1 vcpus, 2 GiB memory) I will get an image uploaded now.  thanks again.
