Question

FortiGate VM on Hyper-V doesn't set SN under CN or SAN in the Fortinet_Factory Certificate

  • August 16, 2025
  • 2 replies
  • 660 views

Greetings!



I've been trying to set up a lab using FMG and FGT trial licence VMs on Hyper-V.



I'm able to run both VMs alright individually, problem is when I try to register the FGT on the FMG.

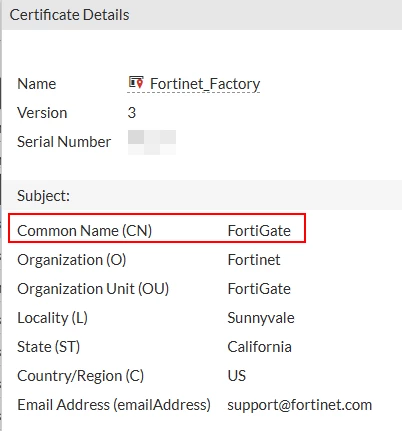

It appears that none of my FGT VMs are able to get their serial number under the CN or SAN fields on the Fortinet_Factory certificate and that makes FMG refuse connections to those VMs.




I've tried redeploying the VM but that makes it "unlicensable" and its SN shows "FGVM00UNLICENSED". In this state, it refuses any attempts I make of licensing it, be it via login to FortiCloud or via license file upload.



I'm running FMG VM version 7.4.7. I would try a lower version to avoid that issue but all the VM images available for download on FortiCloud currently have the same restriction regarding the fgfm-peercert-withoutsn command.





I'm running Hyper-V because I've had no luck downloading VMWare Workstation Pro from the Broadcom portal.

Any help would be appreciated.

2 replies

Stephen_G
Moderator
Moderator
August 18, 2025

Hello Ru_WWW,



Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.



Thanks,

Stephen_G - Fortinet Community Team
AEK
SuperUser
SuperUser
August 19, 2025
Ru_WWW
Ru_WWWAuthor
New Member
August 20, 2025

Hey, AEK.

Thanks for the input. I already knew about that option. However, as shown in the article you mentioned, the command fgfm-peercert-withoutsn has been removed in all recent FortiManager versions. If it was still available it would definitely solve my issue.
