FortiGate VM cannot retrieve FortiManager serial number – FMG 7.6.6

  • May 12, 2026
  • 6 replies
  • 226 views

Hello everyone,

I am currently experiencing an issue integrating a FortiGate VM with a FortiManager VM (version 7.6.6).

When trying to authorize the FortiManager from the FortiGate GUI, I receive the following error:

"Could not connect to the FortiManager to retrieve its serial number"

I already followed the official Fortinet KB below without success:

https://community.fortinet.com/fortigate-3/technical-tip-error-on-gui-could-not-connect-to-the-fortimanager-to-retrieve-its-serial-number-205398

Additionally, the following command is not available/supported on my FortiManager:

set fgfm-peercert-withoutsn enable

Connectivity between both VMs is working correctly, and basic FGFM communication appears reachable.

Has anyone experienced this issue on FortiManager 7.6.6 or found an alternative workaround to complete the integration successfully?

Any guidance would be greatly appreciated.

Thank you.

6 replies

FortiTowel
FortiTowel
New Member
May 13, 2026

Hello Willy007,

From your post, it looks like you are trying to add the new device via FortiManager.

If you only have a few FortiGates, you could try it this way:

FortiGate GUI path:
Security Fabric → Fabric Connectors → Central Management

Configure Central Management there (on-prem or cloud, depending on what type of FortiManager you are using).

After that, the FortiGate should try to register itself to the FortiManager.

On the FortiManager, you should then see the device listed as an unauthorized device.
That should be the FortiGate you configured before — simply authorize/accept it and continue from there.



Greets

FortiTowel

    W
    willy007Author
    Explorer
    May 13, 2026

    Sir I made thoose steps but the same error

    Regards

    FortiTowel
    FortiTowel
    New Member
    May 14, 2026

    Hello Willy007

    Refer your Fortinet KB: Notes**

    If custom certificates are used, ensure the FortiManager serial number is present in the certificate CN field.
    Verify the certificate CN field to avoid certificate mismatch issues.



    Greets

    FortiTowel

      Talank
      Staff
      Talank
      Staff
      May 13, 2026

      The command “set fgfm-peercert-withoutsn enable” was removed starting with FMG versions 7.2.10/7.4.6/7.6.1

        W
        willy007Author
        Explorer
        May 13, 2026

        yes sir buth waht another option I had to register?

        farhanahmed
        Staff
        farhanahmed
        Staff
        May 14, 2026

        Try this command on FMG:


        config system global

        set fgfm-allow-vm en

        end



        And see if that works.

          W
          willy007Author
          Explorer
          May 15, 2026

          Hi sir, I already did but the same problem, this is the real message error “addr:{192.168.200.200:11692->192.168.200.210:541},{type=ssl:client=0,verify=1. {type=ssl self_cn:FMG-VMTM26005988}{type=ssl cn:FortiGate}}}__get_handler:1039: peer_sn=FortiGate, msg_sn=FGVMEV7XZJPKOQA2, session_cn=FortiGate
          __get_handler:1082: serial number (FGVMEV7XZJPKOQA2) in 'get' message doesn't match the subject CN (FortiGate) in peer's certificate.”

          sjoshi
          Staff
          sjoshi
          Staff
          May 18, 2026

          is this a trail version?

          can you check



          Thanks, Salon
            msanjaypadma
            Staff
            msanjaypadma
            Staff
            May 17, 2026

            Hi ​@willy007  ,

            Can you share the output of following commands from FortiGate :

            # get sys status
            # get system ha status
            # get system status | grep -i serial
            # config vpn certificate local
            # get Fortinet_Factory | grep CN
            # end
            # get system central-management
            # diagnose fdsm central-mgmt-status


            Thanks,
            Mayur Padma

            Thanks, Mayur Padma
              W
              willy007Author
              Explorer
              May 20, 2026

              Hi sir my vm is evaluation, this are the commands:



              https://ydray.com/get/t/u1779248930673ABXad07d57007241fH



              regards

              msanjaypadma
              Staff
              msanjaypadma
              Staff
              May 20, 2026

              HI ​@willy007 ,

              From previous output able to see that CN field showing “FortiGate”, You need to update the certificate CN to serialnumber.

              “addr:{192.168.200.200:11692->192.168.200.210:541},{type=ssl:client=0,verify=1. {type=ssl self_cn:FMG-VMTM26005988}{type=ssl cn:FortiGate}}}__get_handler:1039: peer_sn=FortiGate, msg_sn=FGVMEV7XZJPKOQA2, session_cn=FortiGate
              __get_handler:1082: serial number (FGVMEV7XZJPKOQA2) in 'get' message doesn't match the subject CN (FortiGate) in peer's certificate.”


              How for confirmation you can run the “get Fortinet_Factory | grep CN” command under “config vpn certificate local”

              # config vpn certificate local
              # get Fortinet_Factory | grep CN
              # end



              FG_LAB # execute vm-license FGVMEV7XZJPKOQA2
              This operation will reboot the system !
              Do you want to continue? (y/n)y

              Failed to download VM license <--------

              If this is failing  can you take updated debug.


              # diagnose debug disable
              # diagnose debug reset
              # diagnose debug application update -1
              # diagnose debug console timestamp enable
              # diagnose debug enable

              then run the command
              # execute vm-license FGVMEV7XZJPKOQA2



              Thanks,
              Mayur Padma

              Thanks, Mayur Padma
                J
                Jeki
                New Member
                May 20, 2026

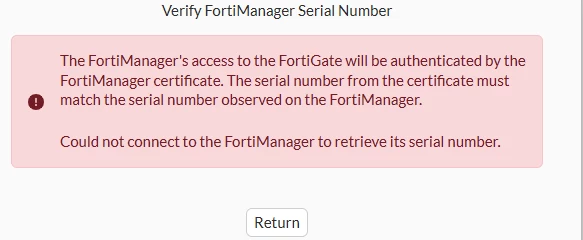

                HiI have the same problem.FortiGate cannot be integrated with FortiManager.“The FortiManager's access to the FortiGate will be authenticated by the FortiManager certificate. The serial number from the certificate must match the serial number observed on the FortiManager. Could not connect to the FortiManager to retrieve its serial number.”
                • FortiGate VM and FortiManager VM are using evaluation licenses.
                • fgfm-allow-vm: enable
                • SSL-low-encryption is set to enable
                • Existing vpn certificate local

                FGT # config vpn certificate local

                FGT (local) # get Fortinet_Factory | grep CN
                        Subject:     C = US, ST = California, L = Sunnyvale, O = Fortinet, OU = FortiGate, CN = FortiGate, emailAddress = support@fortinet.com
                        Issuer:      C = US, ST = California, L = Sunnyvale, O = Fortinet, OU = Certificate Authority, CN = support, emailAddress = support@fortinet.com



                Any suggestions?

                Thanks

                msanjaypadma
                Staff
                msanjaypadma
                Staff
                May 21, 2026

                Hi ​@willy007 , ​@Jeki


                This is my findings !


                I also attempted to use the EVAL license; however, it did not function as expected. This is because the FortiGate-presented certificate lacks the CN field containing the FortiGate-serial-number. Additionally, the EVAL license does not support FortiGuard/FortiCare, which results in the update function failing and generating a "file download error." To the best of my understanding, the certificate remains unchanged for EVAL licenses.

                Furthermore, the referenced article indicates that the EVAL license employs lower encryption levels expect for GUI and FortiManager communication, but it is still restricted by the serial number in fortimanager.

                Reference:
                https://docs.fortinet.com/document/fortigate/7.6.6/administration-guide/441460




                As per article “The command 'fgfm-peercert-withoutsn' has been removed from FortiManager v7.2.10/v7.4.6/v7.6.2. As a result, it is now a hard requirement for the FortiGate to present the local serial number inside the CN= field of the certificate it is presenting to the FortiManager.”


                Checked with  regular license version, as it appears to be functioning correctly for me.


                If you have found a solution, please like and mark it as solved to make it easily accessible for everyone.


                Thanks,
                Mayur Padma

                Thanks, Mayur Padma
                msanjaypadma
                Staff
                msanjaypadma
                Staff
                May 21, 2026

                Refer this thread for different solution :

                Create Certificate
                or
                Downgrade to FortiManager 7.6.1

                config sys global

                set fgfm-peercert-withoutsn enable (Option was after 7.6.1 deleted)



                Thanks, Mayur Padma
