Fortigate VM can not ping to vlan ip

  • May 30, 2022
  • 1 reply
  • 3554 views

Hi guys, i am a networking beginer.

i installed fortigate vm (license imported) on my esxi 7 evironment.

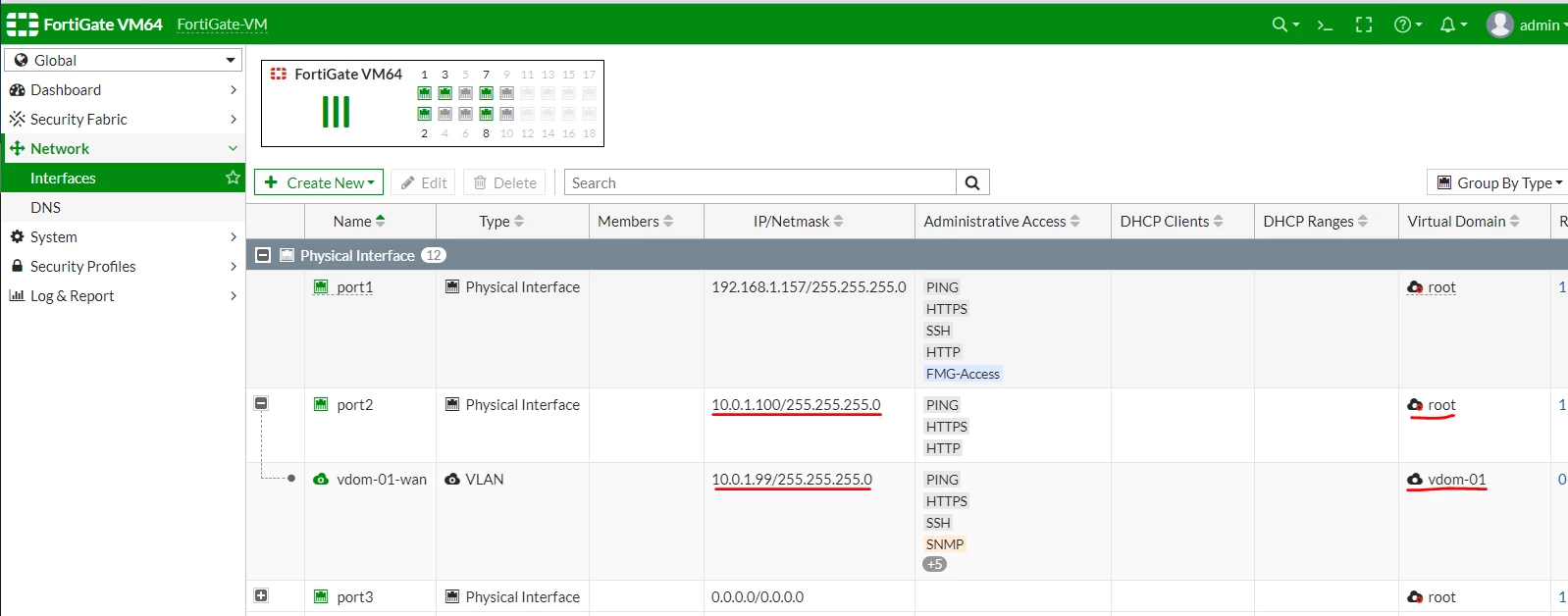

i enabled Muti VDOM and configured port2's interfaces like below：

　port2：vdom root：Physical Interface：10.0.1.100/255.255.255.0

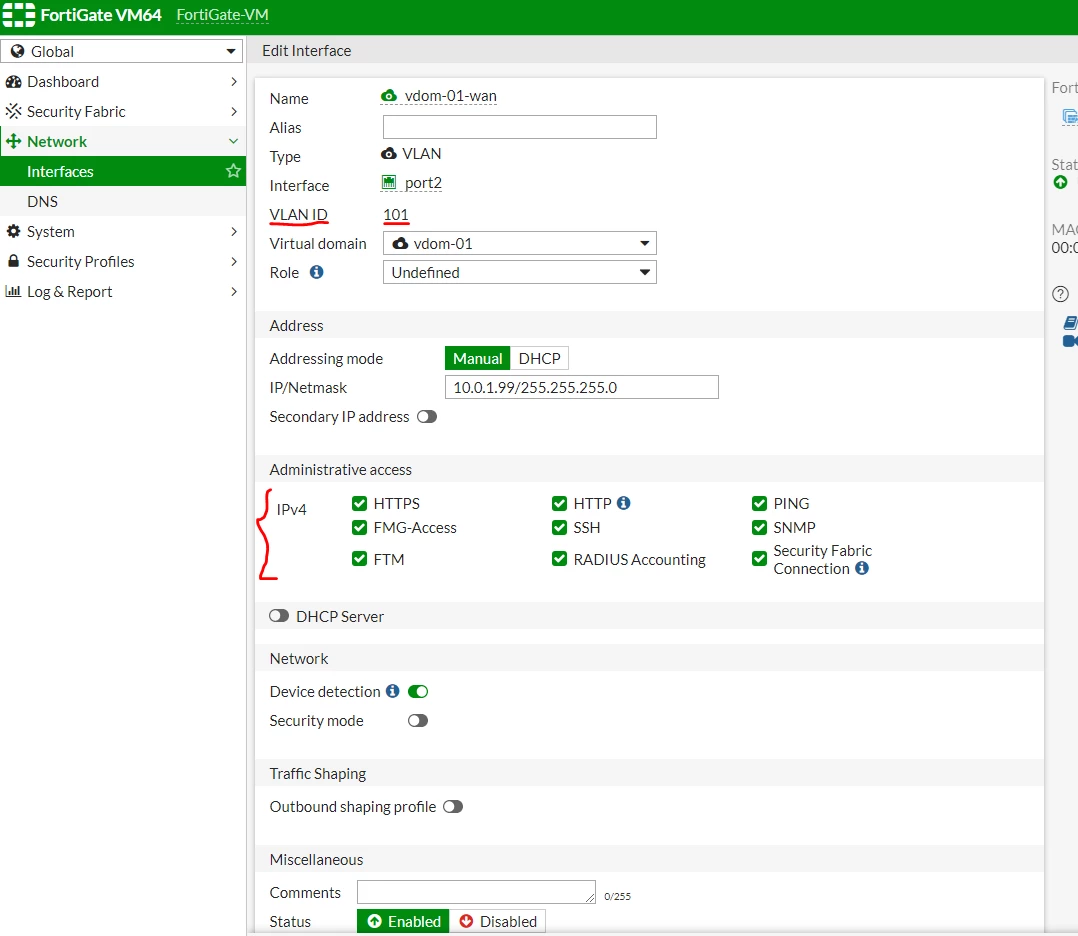

    port2：vdom vdom-01：vlan 101 ：10.0.1.99/255.255.255.0

From window virtual machine , i can ping to 10.0.1.100.

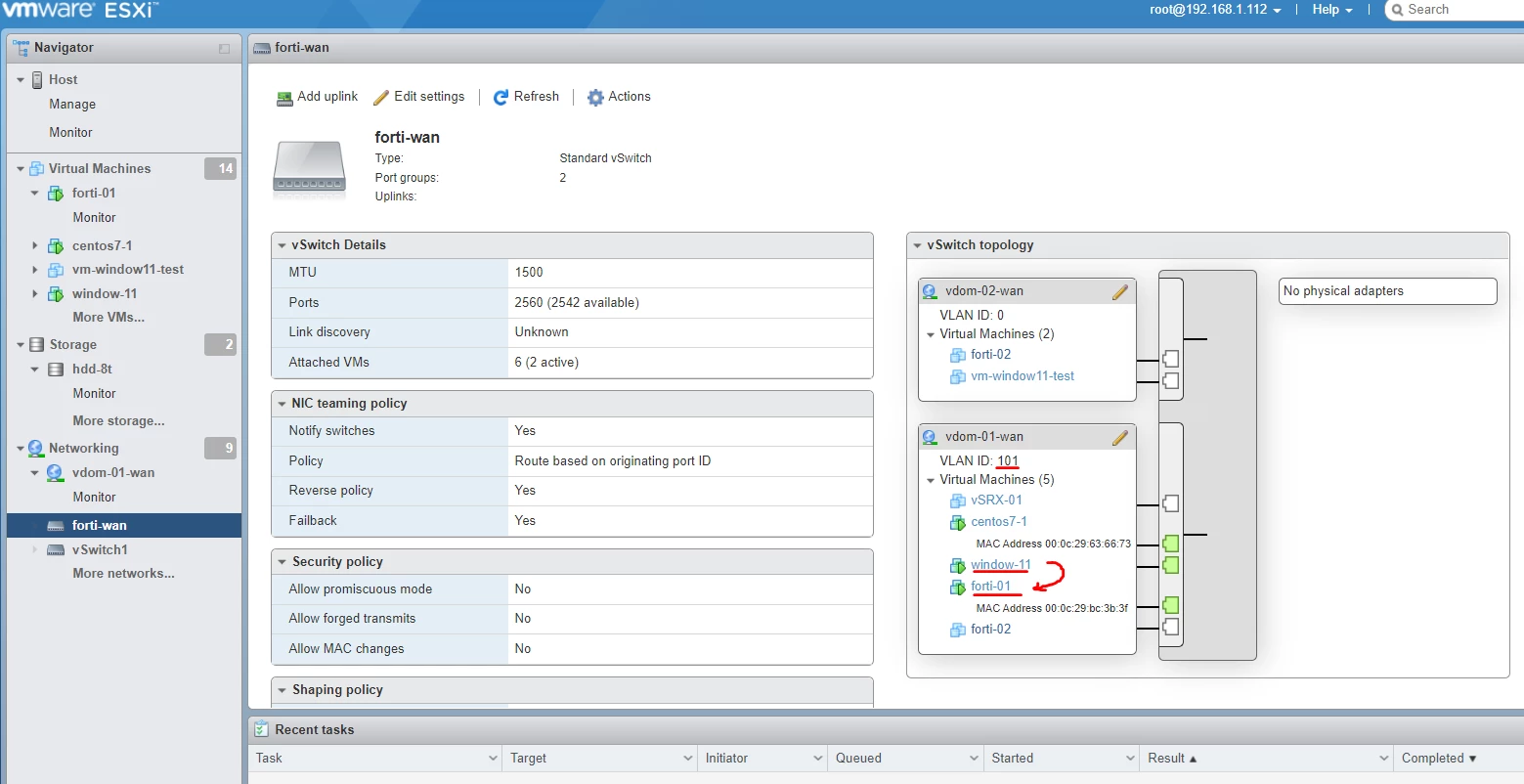

i did configured vSwitch tag 101 but can not ping to 10.0.1.99.

Can you give me some advices ?






1 reply

seshuganesh
Staff
seshuganesh
Staff
May 30, 2022

Hi Team,



When you are pinging to 10.0.1.99, can you take the sniffer in firewall by executing the below commands:

diag sniffer packet any 'host 10.0.1.99 and icmp' 4 0 a

Then try to ping from the machine and kindly share us logs

rinvn
rinvnAuthor
Explorer
May 30, 2022

Thank you for your reply !



>diag sniffer packet any 'host 10.0.1.99 and icmp' 4 0 a

i executed this command but seem like icmp packets can not be reached.

i have not set any static routing yet ,because i think it is about L2 traffic.

my goal is testing some fortigate functions privately, so only vSwitch portgroup is using.




seshuganesh
Staff
seshuganesh
Staff
May 30, 2022

Seems like traffic is not reahcing the firewall, it will be better if you can check in the internal network if something is blocking or re routing it to some other device
