Fortigate VM 7.4.3 stuck at Validating License to FortiGuard

  • February 19, 2024
  • 21 replies
  • 11939 views

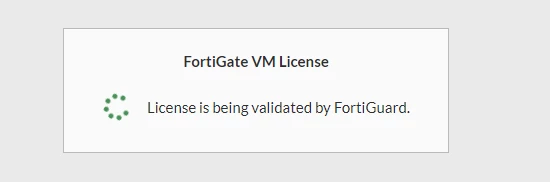

Skærmbillede 2024-02-19 131155.png



I have been trying differend things

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-Failure-on-update-or-contact-FortiGuard/ta-p/198283



I can ping all necessary addresses



This is the debug:




# ssl_connect_fds[407]-Poll timeout
[207] __ssl_data_ctx_free: Done
[1108] ssl_free: Done
[199] __ssl_cert_ctx_free: Done
[1118] ssl_ctx_free: Done
upd_comm_connect_fds[478]-Failed SSL connect
do_setup[333]-Failed setup
upd_daemon[1974]-Disabling remaining actions 11
upd_vm_process[809]-last warning 161 seconds ago
upd_dns_change_notif[140]-Detected dns change from 8.8.8.8, 8.8.4.4, 0.0.0.0 to 96.45.45.45, 96.45.46.46, 0.0.0.0
upd_vm_process[809]-last warning 161 seconds ago
upd_ftgd_global_change_notif[224]-Detected anycast change
upd_vm_process[809]-last warning 161 seconds ago
upd_daemon[1808]-Received update request from pid=1905
upd_vm_process[809]-last warning 161 seconds ago
upd_daemon[1776]-Received setup request from pid=1907
upd_vm_process[809]-last warning 161 seconds ago
upd_daemon[1776]-Received setup request from pid=1907
upd_vm_process[809]-last warning 161 seconds ago
upd_vm_process[809]-last warning 166 seconds ago
upd_vm_process[809]-last warning 171 seconds ago
do_setup[329]-Starting SETUP
upd_fds_load_default_server[920]-Addr=[149.5.232.66], weight=205966649
upd_fds_load_default_server[939]-Resolve and add fds euupdate.fortiguard.net ip address OK.
upd_fds_load_default_server6[1046]-Resolve and add fds euupdate.fortiguard.net ipv6 address failed.
upd_comm_connect_fds[459]-Trying FDS 149.5.232.66:443
[116] __ssl_cert_ctx_load: Added cert /etc/cert/factory/root_Fortinet_Factory.cer, root ca Fortinet_CA, idx 0 (default)
[116] __ssl_cert_ctx_load: Added cert /etc/cert/factory/root_Fortinet_Factory_Backup.cer, root ca Fortinet_CA_Backup, idx 1
[497] ssl_ctx_use_builtin_store: Loaded Fortinet Trusted Certs
[517] ssl_ctx_use_builtin_store: Enable CRL checking.
[524] ssl_ctx_use_builtin_store: Enable OCSP Stapling.
[828] ssl_ctx_create_new: SSL CTX is created
[855] ssl_new: SSL object is created
[191] ssl_add_ftgd_hostname_check: Add hostname checking 'euupdate.fortiguard.net'...
[922] ssl_set_hostname: Set hostname 'fortinet-ca2.fortinet.com'
[720] __ssl_info_callback: before SSL initialization
[720] __ssl_info_callback: SSLv3/TLS write client hello
[720] __ssl_info_callback: SSLv3/TLS write client hello
[720] __ssl_info_callback: SSLv3/TLS read server hello
[720] __ssl_info_callback: TLSv1.3 read encrypted extensions
ssl_connect_fds[407]-Poll timeout
[207] __ssl_data_ctx_free: Done
[1108] ssl_free: Done
[199] __ssl_cert_ctx_free: Done
[1118] ssl_ctx_free: Done
upd_comm_connect_fds[478]-Failed SSL connect
do_setup[333]-Failed setup
upd_daemon[1974]-Disabling remaining actions 11
upd_vm_process[809]-last warning 297 seconds ago
upd_daemon[1808]-Received update request from pid=1937
upd_vm_process[809]-last warning 297 seconds ago
upd_daemon[1808]-Received update request from pid=2059
upd_vm_process[809]-last warning 297 seconds ago
upd_daemon[1808]-Received update request from pid=2076
upd_vm_process[809]-last warning 297 seconds ago
upd_daemon[1808]-Received update request from pid=2075
upd_vm_process[809]-last warning 297 seconds ago
upd_vm_process[809]-last warning 302 seconds ago
upd_vm_process[809]-last warning 307 seconds ago
do_setup[329]-Starting SETUP
upd_fds_load_default_server6[1046]-Resolve and add fds euupdate.fortiguard.net ipv6 address failed.
upd_comm_connect_fds[459]-Trying FDS 149.5.232.66:443
[116] __ssl_cert_ctx_load: Added cert /etc/cert/factory/root_Fortinet_Factory.cer, root ca Fortinet_CA, idx 0 (default)
[116] __ssl_cert_ctx_load: Added cert /etc/cert/factory/root_Fortinet_Factory_Backup.cer, root ca Fortinet_CA_Backup, idx 1
[497] ssl_ctx_use_builtin_store: Loaded Fortinet Trusted Certs
[517] ssl_ctx_use_builtin_store: Enable CRL checking.
[524] ssl_ctx_use_builtin_store: Enable OCSP Stapling.
[828] ssl_ctx_create_new: SSL CTX is created
[855] ssl_new: SSL object is created
[191] ssl_add_ftgd_hostname_check: Add hostname checking 'euupdate.fortiguard.net'...
[922] ssl_set_hostname: Set hostname 'fortinet-ca2.fortinet.com'
[720] __ssl_info_callback: before SSL initialization
[720] __ssl_info_callback: SSLv3/TLS write client hello





21 replies

Richie_C
Staff
Richie_C
Staff
February 19, 2024

Hi



This is usually related to some type of filtering.

upd_comm_connect_fds[478]-Failed SSL connect



Have you tried the steps in the following document:



https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-Unable-to-connect-to-FortiGuard-servers/ta-p/226149



Thanks

    tehm
    tehmAuthor
    New Member
    February 19, 2024

    @Richie_C  Thanks for fast reply
    Ive run: diag debug rating

    And all 3 Web-Filter, Antispam and Virus outbreak prevention are disabled

    Richie_C
    Staff
    Richie_C
    Staff
    February 19, 2024

    You could try the following configuration as per the document. The FortiGate will then use UDP instead of TCP443.





    config system fortiguard set fortiguard-anycast disable set protocol udp set port 8888 set sdns-server-ip 208.91.112.220    <- end



      mle2802
      Staff
      mle2802
      Staff
      February 19, 2024

      Hi @tehm,
      Did you have any upstream device or directly connected to ISP modem?

      Regards,

        tehm
        tehmAuthor
        New Member
        February 19, 2024

        Well its a VM installed in GNS3 which is on a PC thats connected to the internet behind our company FGT firewall.

        Richie_C
        Staff
        Richie_C
        Staff
        February 19, 2024

        Is it possible that the corporate firewall is doing some type of filtering?  Maybe some SSL inspection, or blocking UDP 8888?

          mle2802
          Staff
          mle2802
          Staff
          February 19, 2024

          Hi @tehm,
          Can you try to unset update location and try again?

            tehm
            tehmAuthor
            New Member
            February 19, 2024

            set update-server-location eu this one?

            mle2802
            Staff
            mle2802
            Staff
            February 19, 2024

            Hi @tehm,
            Yes that correct. Change to "unset update-server-location". Also debug upstream FortiGate to see if traffic from this device being blocked.

              Staff
              Rajneesh
              Staff
              February 20, 2024

              Hello @tehm Try changing the update server location to EU or any and check with the below config once :

              config system fortiguard

                  set fortiguard-anycast disable

                  set protocol udp

                  set port 8888

                  set sdns-server-ip 208.91.112.220

              end

              Thanks.

                tehm
                tehmAuthor
                New Member
                February 20, 2024

                Hi,

                This have already been tried, same result.
