Fortigate Virtual Server not passing traffic to members.

Hi ​@Jasys ,

The information provided above may not be sufficient to accurately identify the location of the packet drop/reason behind its not working.

I recommend reviewing the debug flow and utilizing a network sniffer to pinpoint where the packet is being dropped.

Refer below articles:

If you have found a solution, please like and mark it as solved to make it easily accessible for everyone.

Thanks,
Mayur Padma

looking at the logs, the issue is at the internal VDOM, it NATs correctly to the VIP address, as its public IPs ill try and explain the Debug,

Traffic comes in from 20.20.20.20 (example) to the DNAT 30.30.30.30 external Interface and does the DNAT to the VIP and arrives at the internal VDOM, so I have eliminated the External VDOM.

On the Internal:

The result shows 0B/423B in the policy, which is odd, as thats bytes returning!

Source: 20.20.20.20, Source Port xxxx ,Source Interface: Internal-to-External

Destination: 192.168.1.100 (VS) Destination NAT IP 10.10.10.100 (Real Server) Destination port: 8088

All good!

Action: close

Policy 244 (Correct Policy)

and thats it...

Hello Jasys,

Can you share a basic topology along with the debug flow collected from the Internal vdom for better understanding.

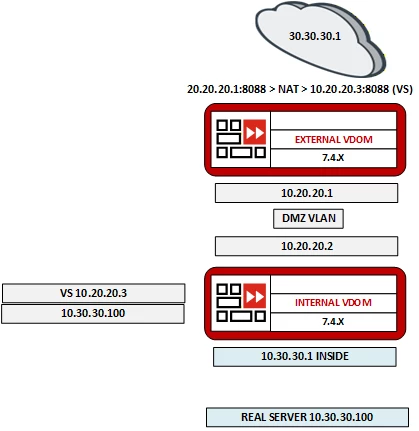

it is just straight forward,  Like below, I can see 30.30.301 hitting the Virtual Server, but nothing hits the real server, not even anything in the logs
